Pressure transmitter D91 (Profibus PA) 27

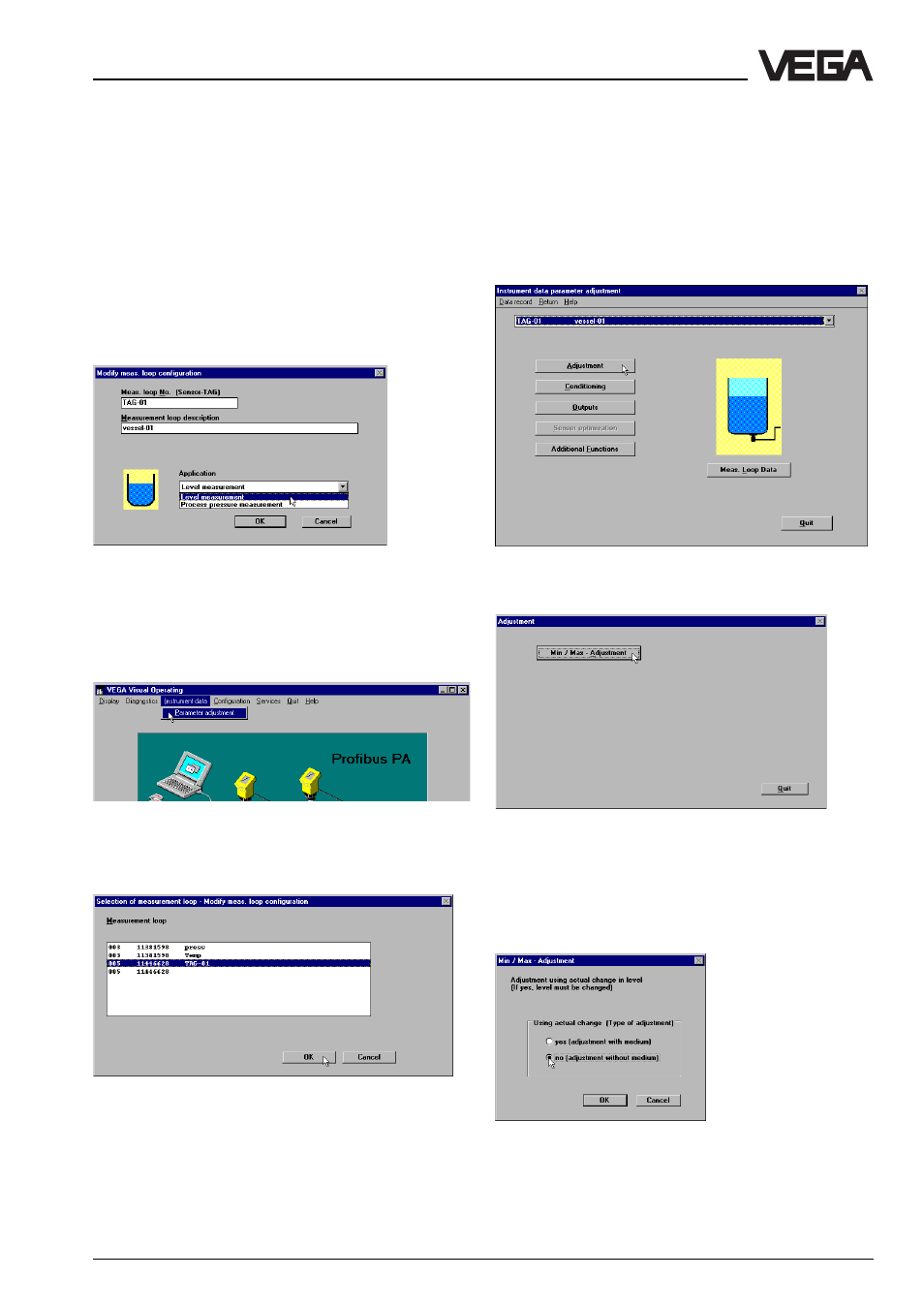

In the window "Modify meas. loop configura-
tion" you can assign a name and a descrip-
tion to the measurement loop. State under
"Application" if you want to create a process
pressure or a level measurement. With
OK
you return again to the window "VEGA Visual
Operating". In the following explanations, we
assume that you have chosen the application
"Level measurement". The adjustment "Proc-
ess pressure measurement" differs only
slightly from the following presentation.
Setup
Sensor parameter setting – Adjustment
Click to Instrument data , then to Parameter
adjustment .
Choose the measurement loop in which you
want to make the parameter adjustment and
click to
OK .
From the window "Instrument data parameter
adjustment" you reach all submenus of the
sensor. To get familiar with the available op-
tions, try out the buttons one after the other.
You will automatically return to this window. To
carry out the adjustment, click the button
Adjustment .
Click in the window "Adjustment" to Min/Max
adjustment .
Then in the window "Min/Max adjustment" you
have to choose the type of adjustment. If you
want to carry out the "Adjustment without
taking the actual product into account" (dry
adjustment), click to
no , then to OK .
