10

VEGASWING 71A and 75A

1

2

3

4

Electrical connection

3 Electrical connection

3.1 Connection instructions

Note

Switch off the power supply before starting
connection work.

Remove the plug. Loosen the screw (7) and
disassemble the plug. Lead the connection
cable through the cable entry and connect
the cables according to the following illustra-
tions.

1 Socket insert
2 Angle housing
3 Seal ring (3 pcs. for different cable ø)
4 Clamping basket
5 Pressure screw
6 Illuminated ring with LED
7 Connection screw

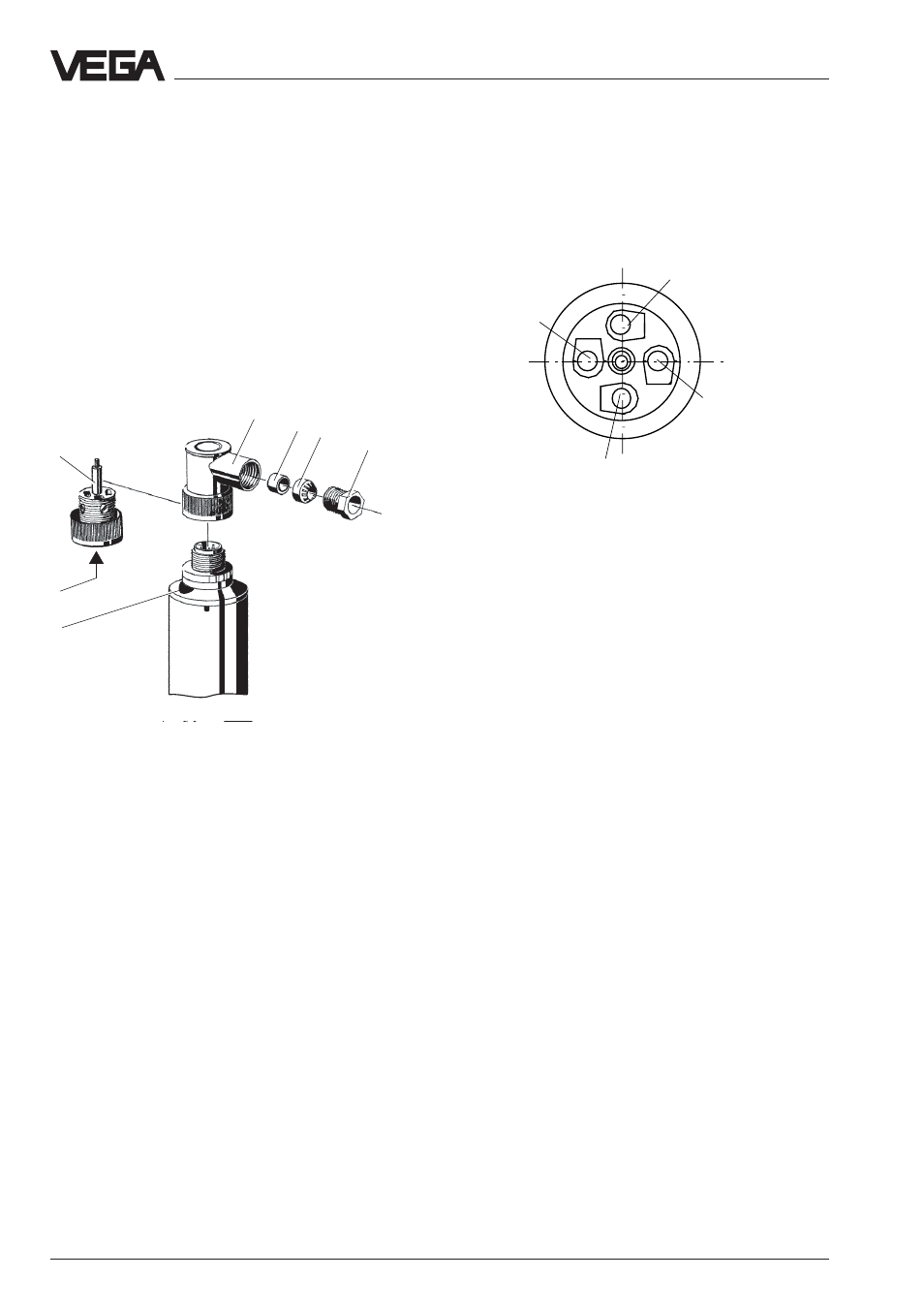

Fig. 3.1

Plug connection

Terminals 1 - 4 are marked on the plug.

Terminal 4

Terminal 1

Terminal 2

Terminal 3

Fig. 3.2

2

3

4

5

1

7

6
