Page 12

VEGASTAB 692 MD

Setup

4.3 Address assignment with VVO

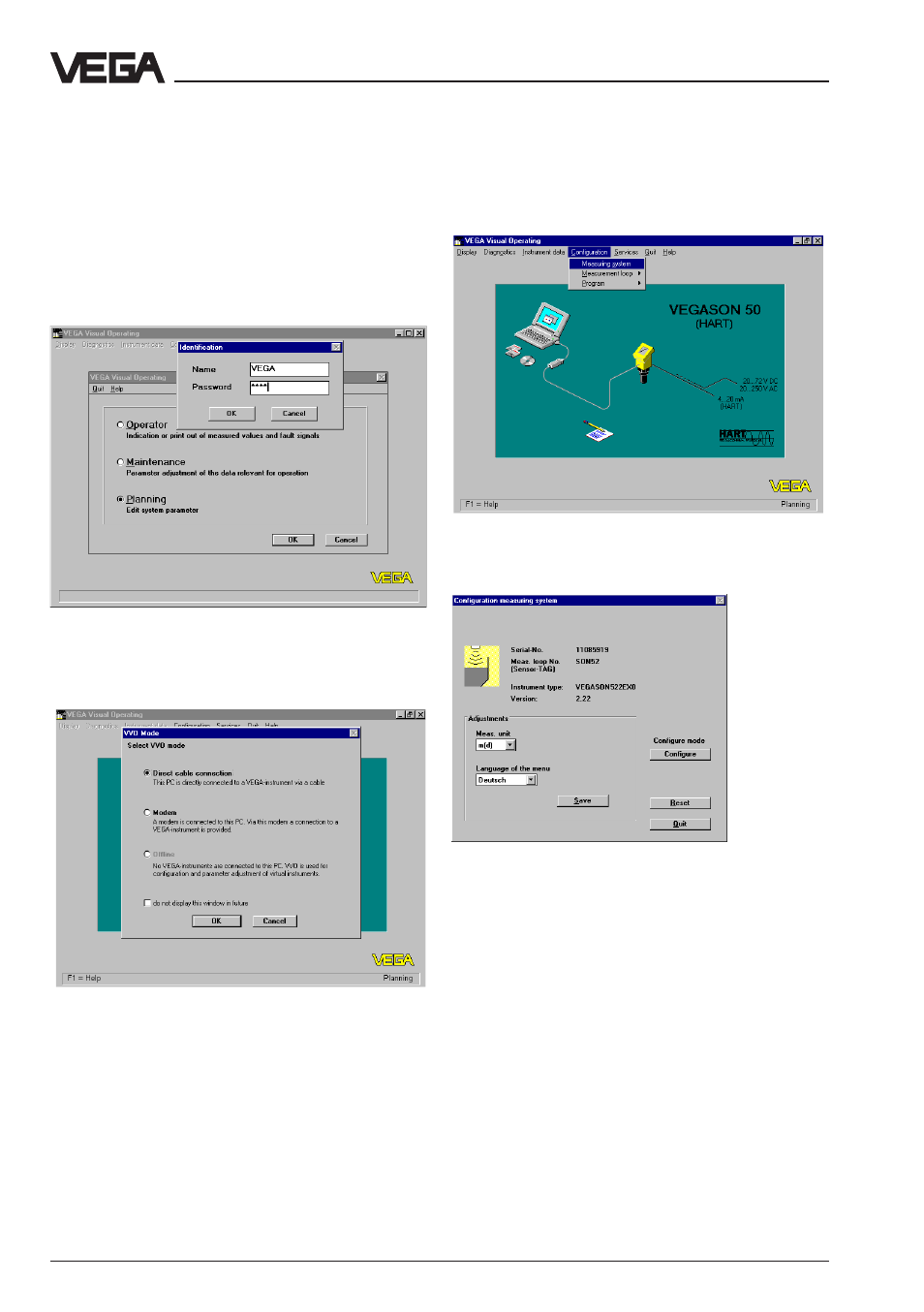

After having connected the first sensor, VVO
can be started. Choose the item Planning

Planning

and confirm with OK

OK. Now enter as Name

Name

and Passwor

Passwor

Password VEGA

d VEGA

d VEGA. Your own name as well

as another password can be entered later on
if necessary under Configuration - Program -

Configuration - Program -

User access

User access. Press OK

OK to continue.

After entering the password, the window VVO

VVO

Mode

Mode appears. Choose the menu item Di-

Di-

rect cable connection

rect cable connection and confirm with OK

OK.

Now a call setup is automatically started and
the database of the connected sensor is
transferred to the PC.

After the configuration, the name of the sen-
sor appears on the desktop. To adjust
HART

multidrop mode and assign an ad-

dress, please choose the menu item Con-

Con-

figuration - Measuring system

figuration - Measuring system.

Press the button Configure mode

Configure mode

Configure mode to set the

sensor to HART

multidrop mode.

Choose Multidrop

Multidrop

Multidrop and assign any address

between 1 and 15. Make sure that each ad-
dress is only assigned once. Confirm with
OK.

OK.
