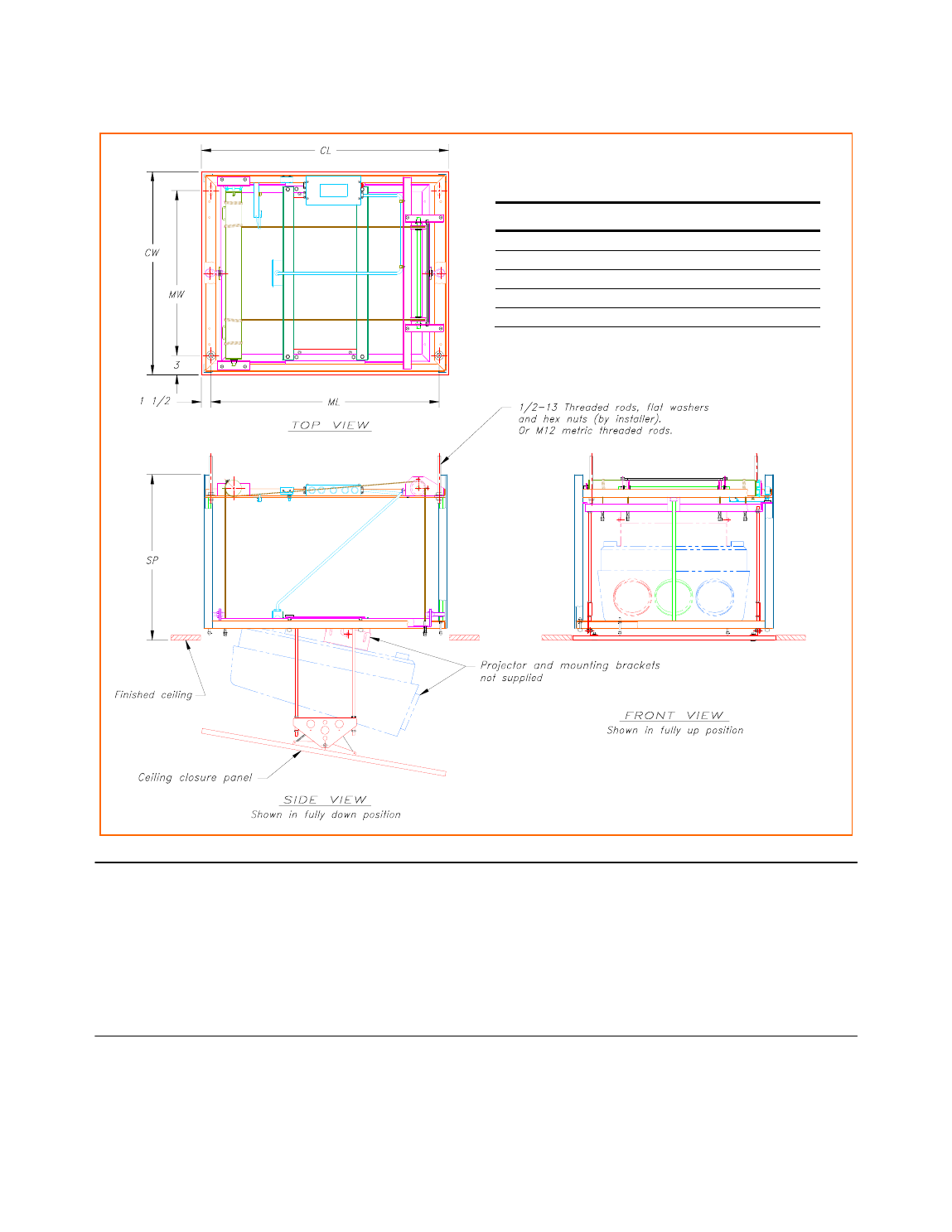

PROJECTOR LIFT
LARGE LCD, DLP, D-ILA, CRT SERIES PROJECTORS
MODELS VT14X, VT18X & VT22X
MODEL VT14X MODEL VT18X MODEL VT22X
Max. projector space (HWL) 14 1/2 x 22 1/2 x 27 18 1/2 x 25 1/2 x 35 22 1/2 x 31 1/2 x 43
Overall dimensions (HWL) 22 x 29 x 31 26 x 32 x 39 30 x 38 x 47
Min. space above finished ceiling 22 26 30
Ceiling closure panel (WL) 29 x 31 32 x 39 38 x 47
Downward travel(in/cm) 14/35,6 18/45,7 22/55,9
Travel time (approx.) 7 sec. 10 sec. 13 sec.
Max. lifting capacity (lbs/kg) 180/82 240/109 300/136
Net weight (lbs/kg) 80/36 100/45 130/59
Ampere/Watt(120VAC) 1.5/170 1.8/210 2.1/250
VT14X VT18X VT22X
MW 23 26 32
ML 28 36 44
CW 29 32 38
CL 31 39 47
SP 22 26 30
