Notes:
1 - Dashed wiring by installers. Wiring must comply with local and/or
national electrical codes and regulations.
2 - The UP and DOWN limit switches are built-in motor limit switches.
3 - If replacing the toggle switch; the new switch must meet the following
specifications: Contact rating 250VAC, 6A min. or 1/3HP.

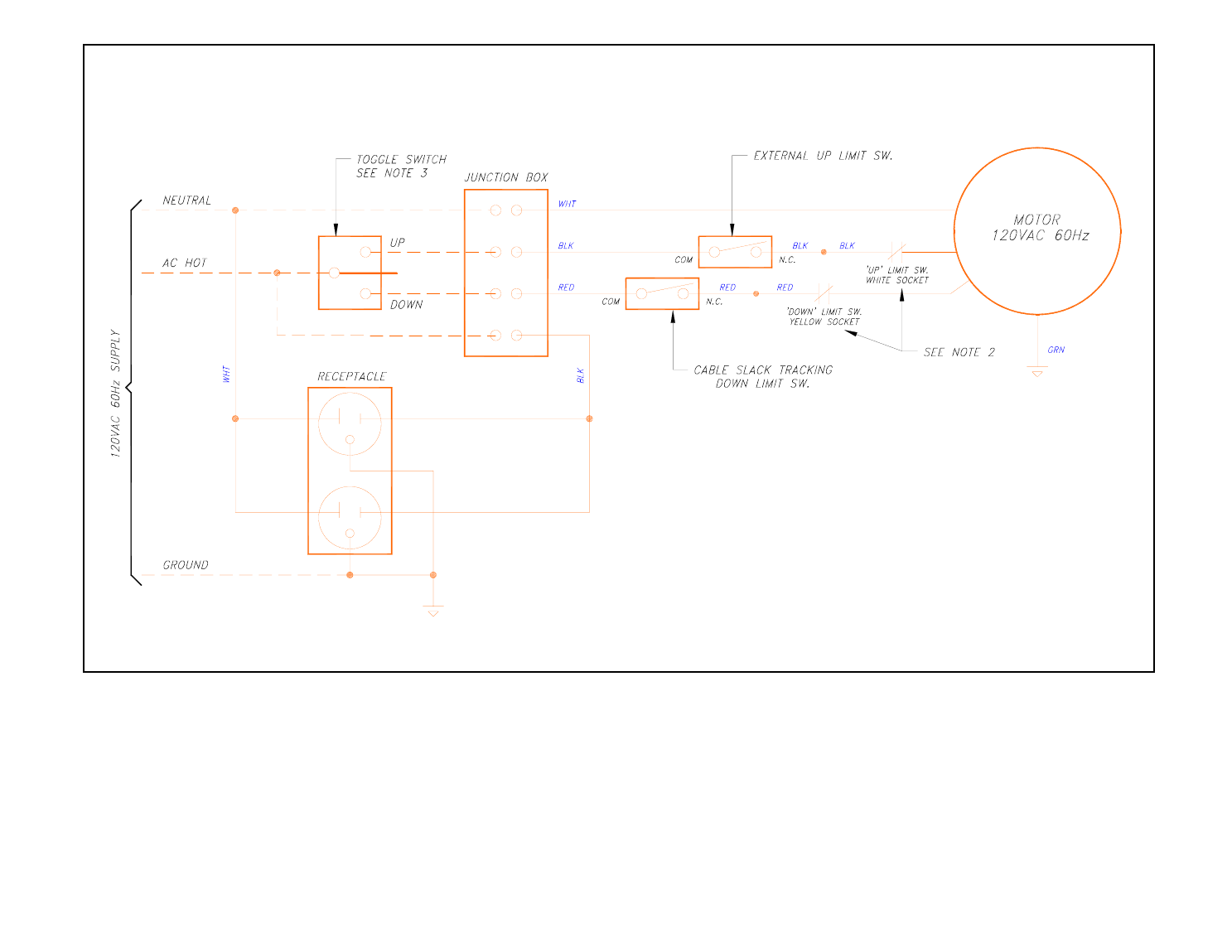

PROJECTOR LIFT WIRING DIAGRAM
120VAC MOTOR
09/20/99
PL-SCH120
