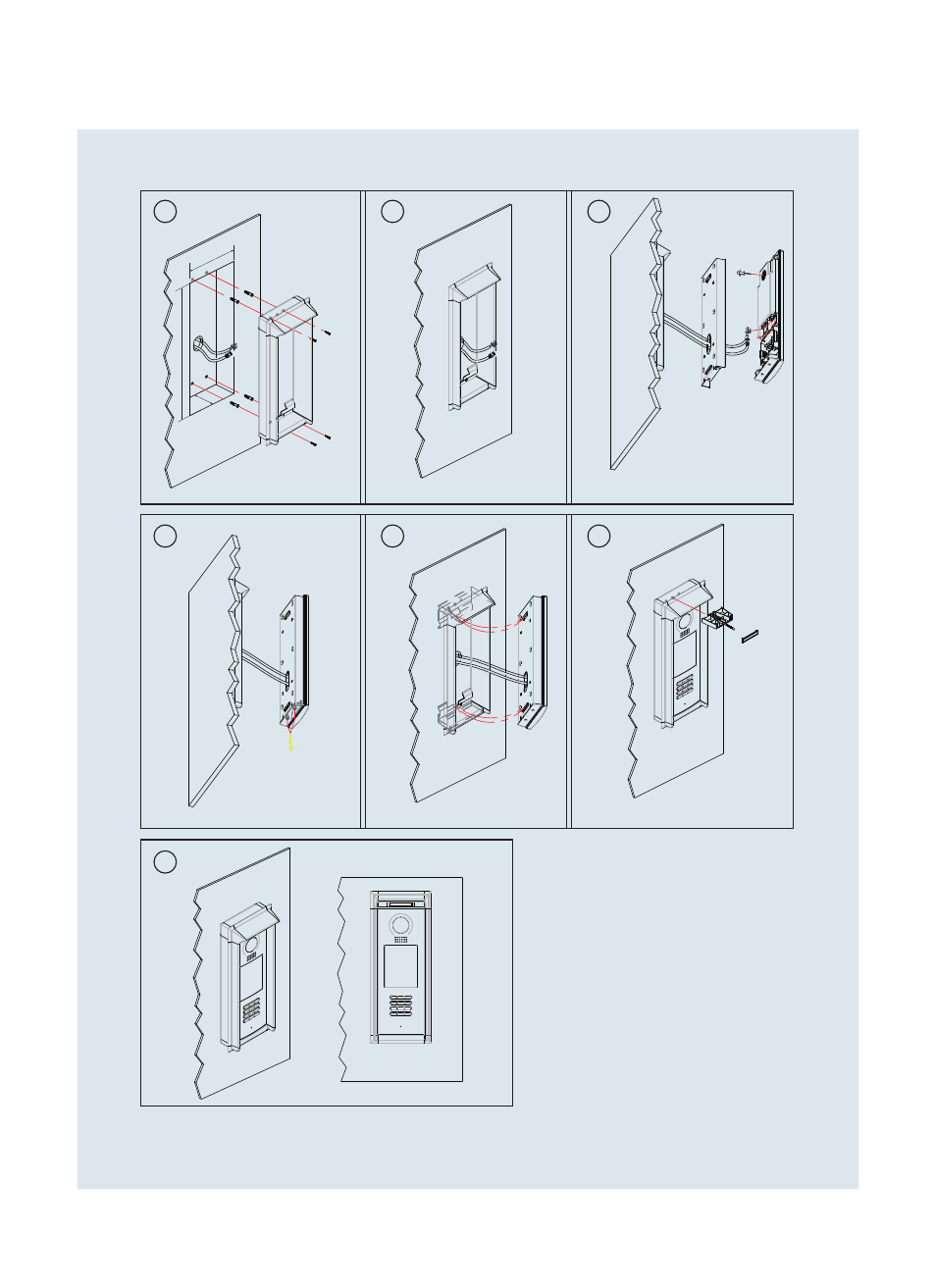

2. Door Station Mounting

1

2

3

4

7

5

6

Drill a hole and attach the

rainy cover to it

Attach screws to fix the

metal box

Attach the unit to the rainy

cover correctlly

Attach the baffle to protect

the unit from droping

The last view for all mounting

The view for rainy

cover after mounted

Adjust the camera angle and attach the

metal to the panel and wire correctly.

Camera

angle

42mm

147mm

395mm
