Omnimount UCL-X Sales Sheet - Manual (Page 2)

800.MOUNT.IT (800.668.6848)
06132011
Color Stock Code Packaging UPC
Americas Black 1003077-1 728901016950
International Black 1002984-1 728901017339
Product Specifications
Fits most: 42" - 70" flat panels
Supports up to: 200 lbs (90.7 kg)
Tilt: -5º to +15º
Mounting profile: 4.3" (110mm)*
Maximum extension: 26.4" (672mm)*
Universal & VESA compliant:
100x100 to 600x800
Mounting: Double-stud and solid wall
Warranty: 5 years
Color: Black
*Adapter addes 1.4" (36mm)
Product Benefits
•
Tilt, pan and swivel for maximum viewing flexibility
•
Die-cast aluminum construction for maximum
support in a lightweight mount
•
Double-arm I-beam design for added strength
•
Includes universal adapter for greater panel compatibility
•
Innovative 4-link tilt mechanism for smooth, effortless movement
•
Double-capacity cable management system guides wires
•
Rack and pinion mechanism for easy self-centering
•
Built-in screen leveling

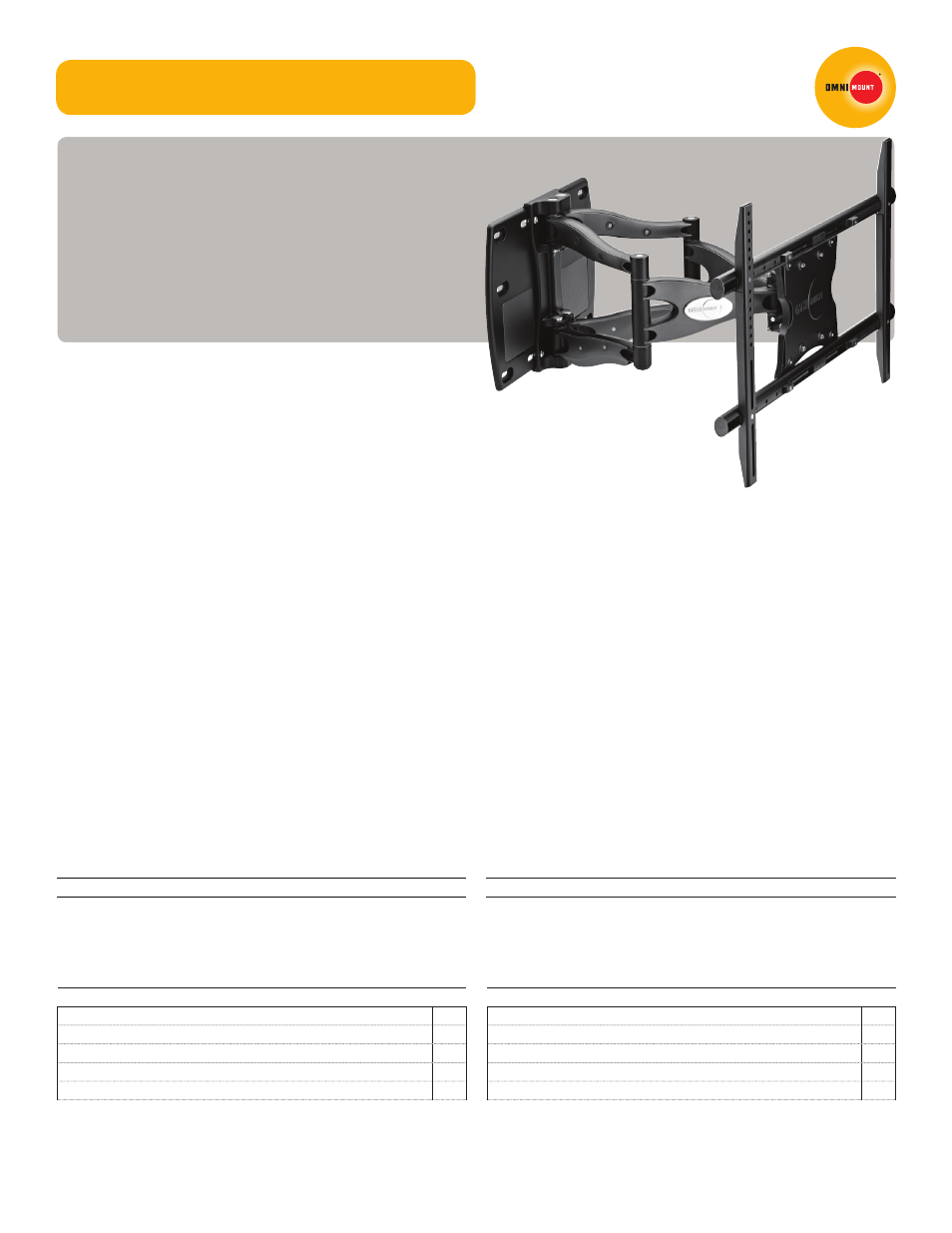

UCL-X
technical data sheet
OmniMount, an innovator of A/V mounts and
furniture for more than a quarter century, is the
choice of professional installers and the brand most
recommended by flat panel manufacturers. The
Architectural Series is our flagship full motion series
with innovation, durability and maximum functionality
built right in. The UCL-X is ideal for those customers
or jobs requiring an extra large universal heavy
duty full motion mount with advanced features.
Dimensions WxDxH Inches (mm) Wt lbs (kg) Qty
Box 22.2 x 34.7 x 6.7 (565x880x170) 47.4 (21.5) NA
MC NA NA NA
•
Lift n’ Lock ™ allows you to easily attach
your flat panel to the mount
•
Sliding lateral on-wall adjustment
•
Wall plate equipped with dual gang J-Box cutouts
•
Locking system secures panel to mount
•
Installation template for simple and accurate mounting
•
Includes complete hardware kit
Box Contents Qty
Wall plate 1
Full motion arm 1
Universal adapter 1
VESA plate 1
Cable management cover 8
Box Contents Qty
Complete mount installation hardware kit 1
Complete panel attachment hardware kit 1
Installation template 1
Instruction manual 1
Flat panel compatibility chart 1
