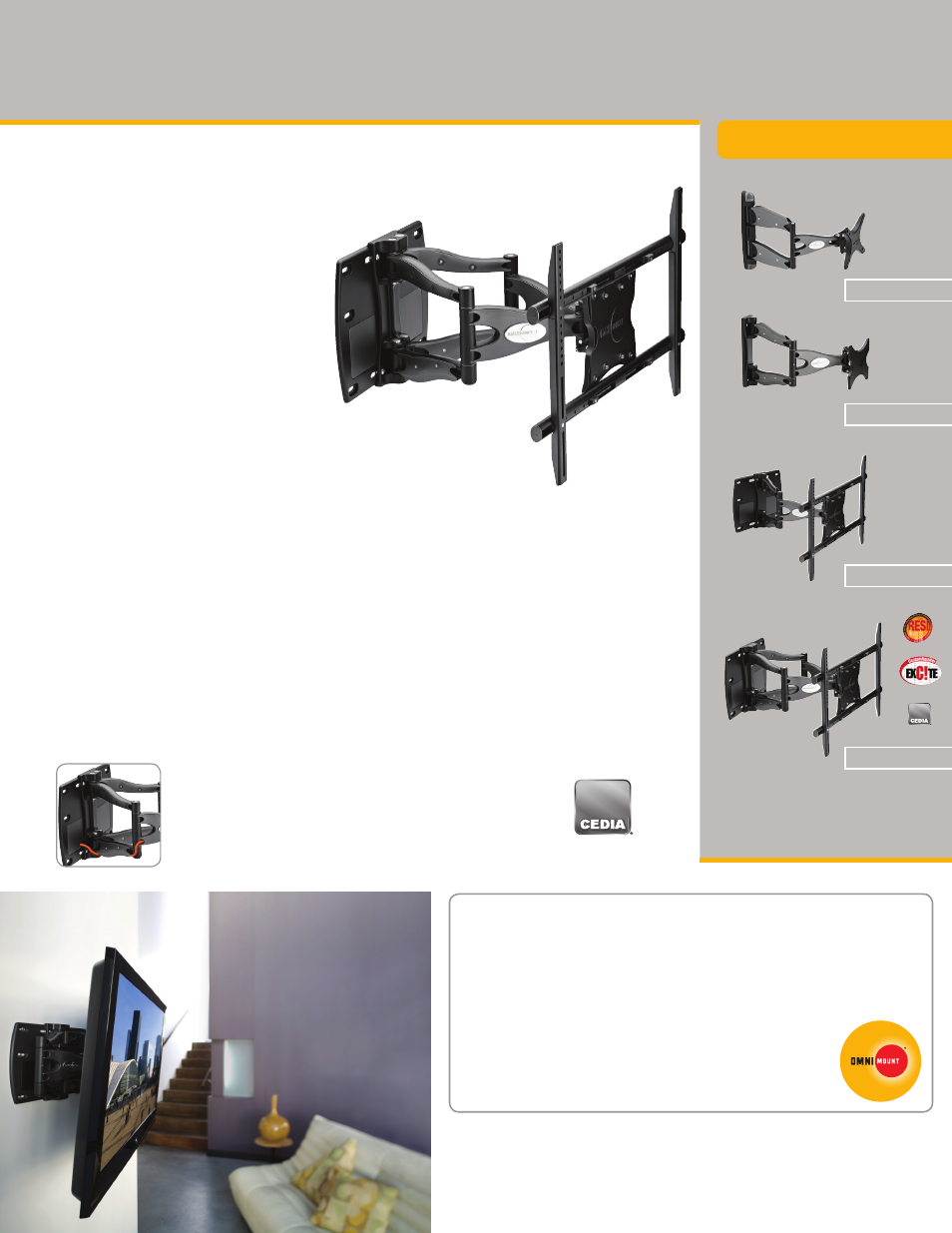

Omnimount UCL-X Sales Sheet User Manual
Ucl-x, Series, Product information sheet

Series
800.MOUNT.IT (800.668.6848)
UCL-X
2005 Custom Retailer
EXC!TE Award
2005 CEDIA Manufacturers’
Excellence Award
2006 RESI Award Winner
UCL-L
CL-M
CL-S
06132011
OmniMount, an innovator of A/V mounts and furniture for more
than a quarter century, is the choice of professional installers
and the brand most recommended by flat panel manufacturers.
The popular Architectural Series is a full line of full motion
mounts with innovation, durability and maximum functionality
built right in. The UCL-X is ideal for anyone requiring
an extra large universal heavy-duty full motion
flat panel mount with advanced features.
UCL-X
product information sheet
A double-capacity cable management system
is seamlessly integrated into the UCL-X,
allowing for twice as many cables to be neatly
tucked away within the arm’s housing
Product Specifications
Fits most: 42" - 70" flat panels
Supports up to: 200 lbs (90.7 kg)
Tilt: -5º to +15º
Mounting profile: 4.3" (110mm)*
Maximum extension: 26.4" (672mm)*
Universal & VESA compliant:
100x100 to 600x800
Mounting: Double-stud and solid wall
Warranty: 5 years
Color: Black
*Adapter addes 1.4" (36mm)
Product Benefits
•
Tilt, pan and swivel for maximum
viewing flexibility
•
Die-cast aluminum construction for
maximum support in a lightweight mount
•
Double-arm I-beam design
for added strength
•
Includes universal adapter for
greater panel compatibility
•
Innovative 4-link tilt mechanism for
smooth, effortless movement
•
Double-capacity cable management
system guides wires
•
Rack and pinion mechanism
for easy self-centering
•
Built-in screen leveling
•
Lift n’ Lock
™
allows you to easily
attach your flat panel to the mount
•
Sliding lateral on-wall adjustment
•
Wall plate equipped with dual
gang J-Box cutouts
•
Locking system secures panel to mount
•
Installation template for simple
and accurate mounting
•
Includes complete hardware kit
2005 CEDIA Manufacturers’
Excellence Award
