P10

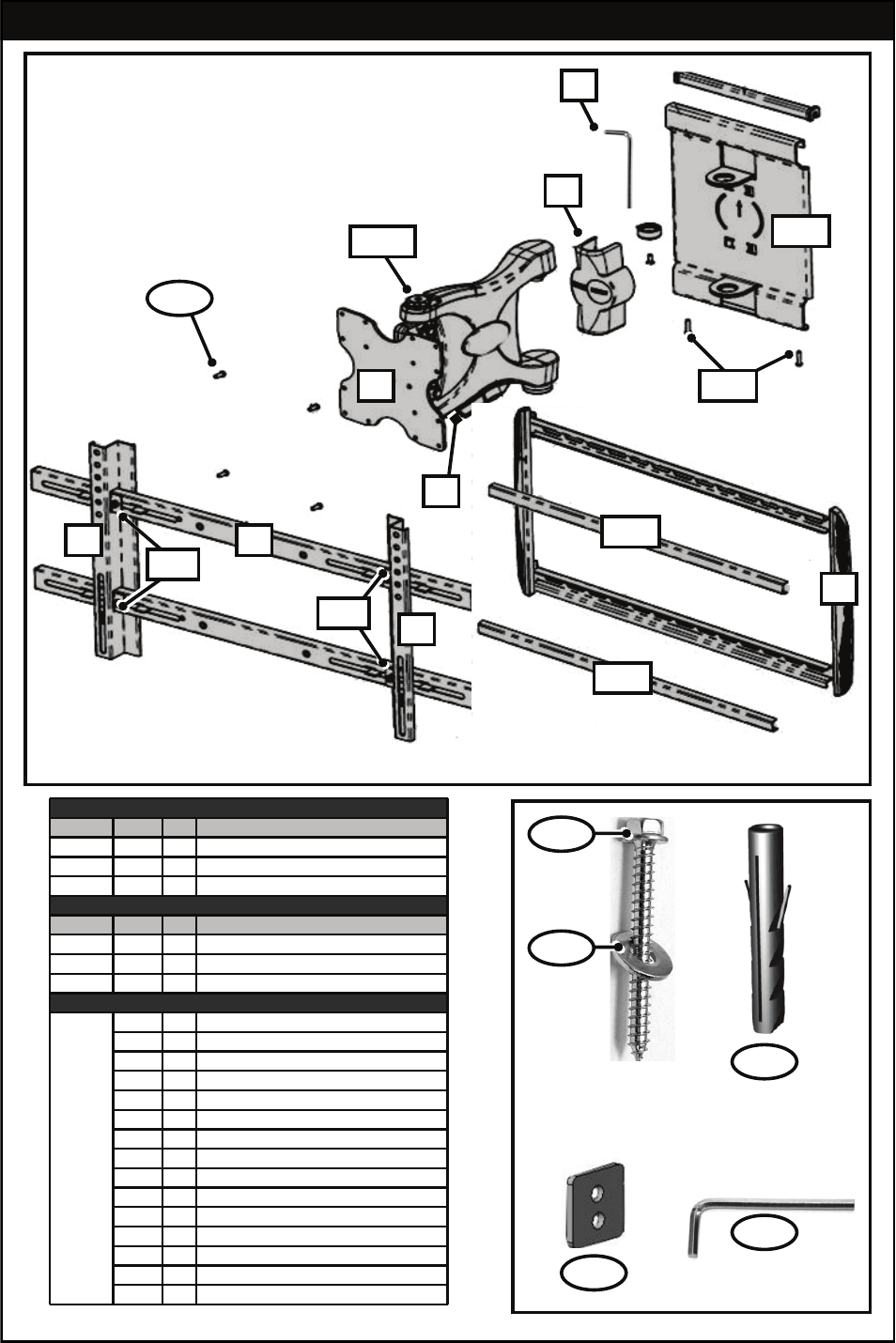

CONTENTS

3

W-C

P-A

P-B

2

15

7

10

W-A

W-B

1

14

4

5

2

14

13

13

12

8

Wall Kit 516-4vC

Pouch # Part # Qty

Description

W-A

W-A

4

Lag Bolts 5/16" x 2.5"

W-B

W-B

4

Steel Washer 18mm x 8.5mm x 1.5mm

W-C

W-C

4

10mm OD x 7mm ID x 45mm Length

OM10332vB

Pouch # Part # Qty

Description

1

P-A

4

Square Washer

2

P-B

1

Allen Wrench 4mm

3

P-C

4

UAL-VESA Screws

Contents

N/A

1

1

Wall Plate

2

2

Vertical Rails

3

2

Horizontal Rails

4

1

VESA Plate

5

1

Cable Management Cover

6

2

Cable Management Cover Screws

7

1

Back Cover

8

1

5mm Allen Wrench (Inside Back Cover)

9

2

Tilt Adjustment Screws

10

1

Top Adjustment Knob

11

2

Swivel Nuts

12

2

Sliding Bracket Screws

13

1

Vertical Rail Adjustment Screws

14

2

Wall Plate Covers

15

1

Sliding Adapter

P-C
