Ohaus RANGER COMPACT COUNTING SCALES Data Sheet User Manual
Ranger, Series

Ranger
TM
Series
High Precision Industrial Counting Scales
Outstanding Performance in the Most Demanding Applications!

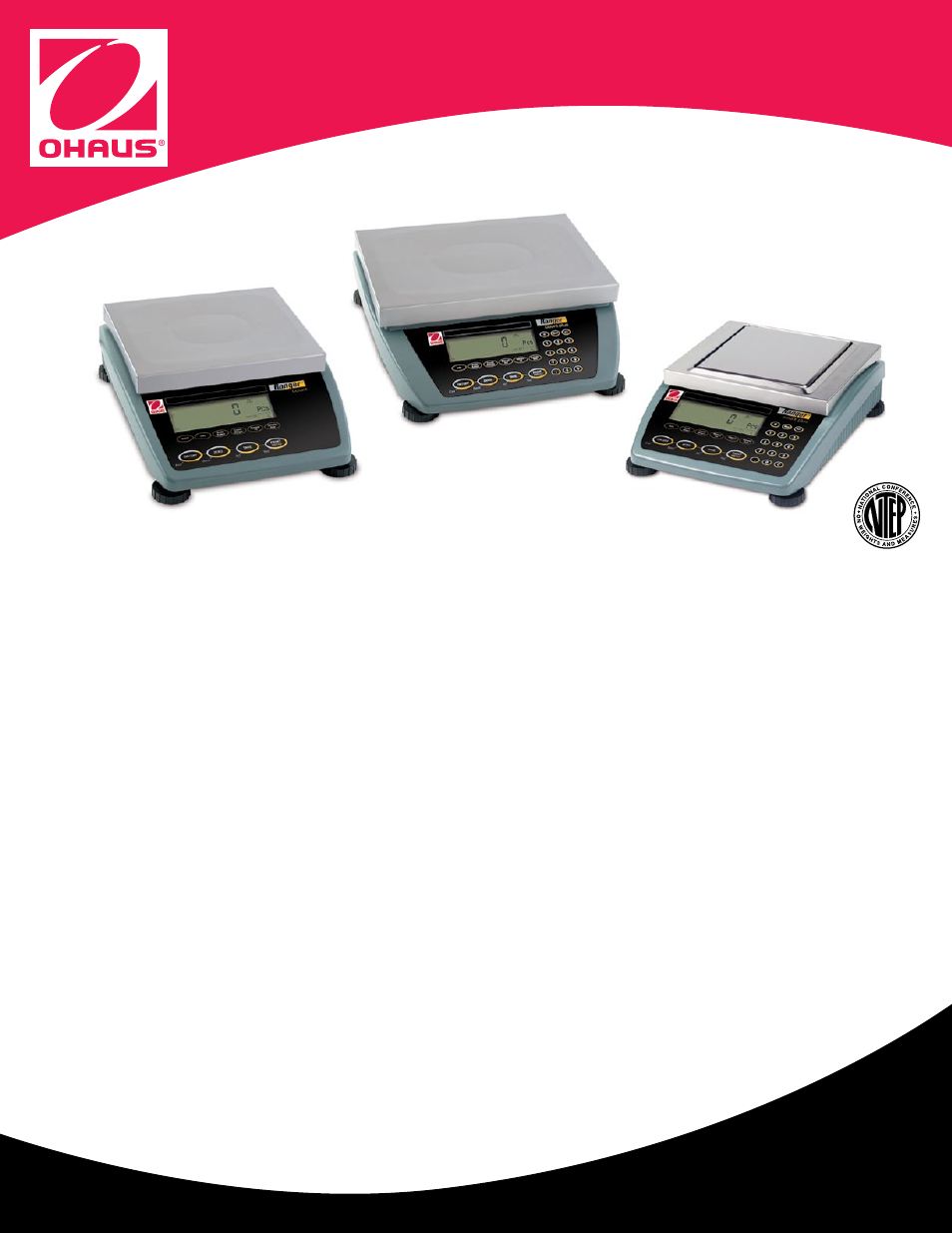

The OHAUS Ranger
TM
line of compact counting scales has been upgraded and expanded with new software
and enhanced microprocessors for even better performance in demanding industrial applications. Every
Ranger Count features a large, backlit LCD display with fast display of weighing results within 2 seconds,
as well as an RS232 port for quick connectivity to printers and systems. For applications requiring addition-
al filtering, the Ranger series now includes dynamic weighing software allowing weigh determination where
vibration is an issue. For advanced counting applications, the Ranger Count Plus offers a numeric keypad for
manual entry of key data like average piece weight (APW), sample size and part ID, and information stored in
100 memory locations.
Every Ranger is designed with OHAUS’ easy-to-use software interface, making operation intuitive with
a consistent feel across all four Ranger lines: Ranger, Ranger High Resolution, Ranger Count and Ranger
Count Plus. No matter the industrial need, there is a Ranger for that application!
Standard Features Include:
•
Ranger Count scales offer high performance strain gauge loadcells supporting resolutions to 1:30,000,
while the Ranger Count Plus incorporates an MFR loadcell for resolutions up to 1:300,000
•
Rugged cast aluminum housings with removable stainless steel weighing pans, tough painted finishes
and sealed front panels
•
Weigh in lb, oz, kg, g or metric tonne units
•
Large, backlit LCD display
•
RS232 interface included for connection to printers and systems
•
NTEP 1:6,000 legal-for-trade resolution available on Ranger Count models, NTEP 1:30,000
legal-for-trade resolution available for Ranger Count Plus
•
Built-in AC with hardwired plug
•
Factory option rechargeable NiMH battery available
