UNPACKING AND ASSEMBLY INSTRUCTIONS
(Continued)
3. Remove the balance head from
the lower half of the poly-
container. Invert the balance
head and nest it in the recess of
the top half of the poly-container.
See Figure 5.
4. Screw the threaded rod into the
hole in the balance until it stops.
5. Slide the column down over the
threaded rod. Hold the base and
specific gravity stand in your left
hand and slide them down over
the threaded rod. (The column,
base and balance head support
bracket are keyed for correct
assembly orientation.)
6. Slip the strap over the threaded
rod into the recessed area of the
base. Tighten the nut securely
with the throw-away wrench.
4
7. Turn the balance over. If the
specific gravity stand is not
already nested in the base, lift
the round section, and it will slide
down.
8. Place the pan on the pan support
and insert the pan bow in the
upper notch of the end loop as
shown in Figure 6.

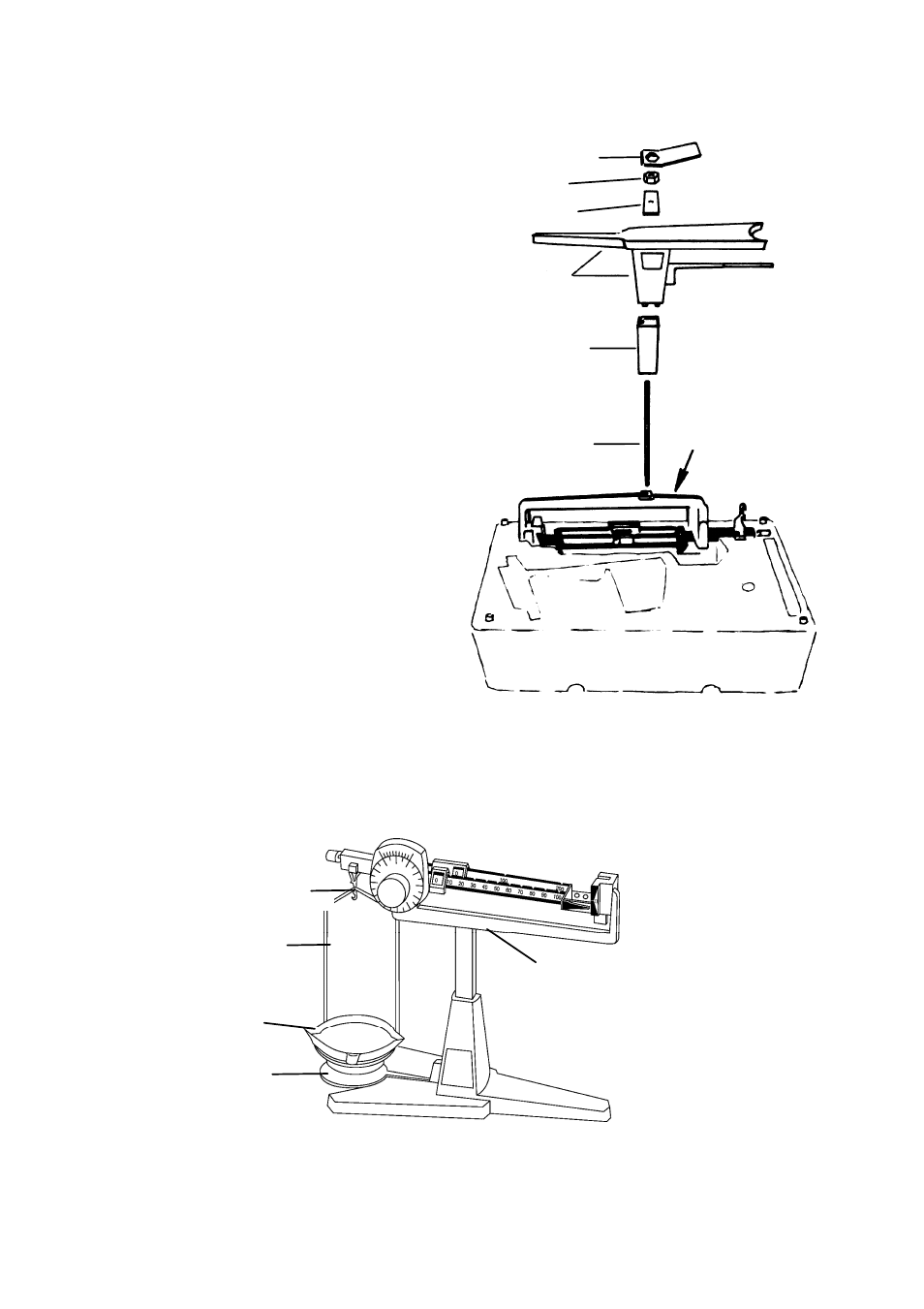

Figure 5.
Threaded Rod
Column
Base and
Specific
Gravity Stand
Nut
Strap
End Loop
Wrench
Balance Head
Pan Bow
Support Bracket
Pan
Pan Support
Figure 6.
