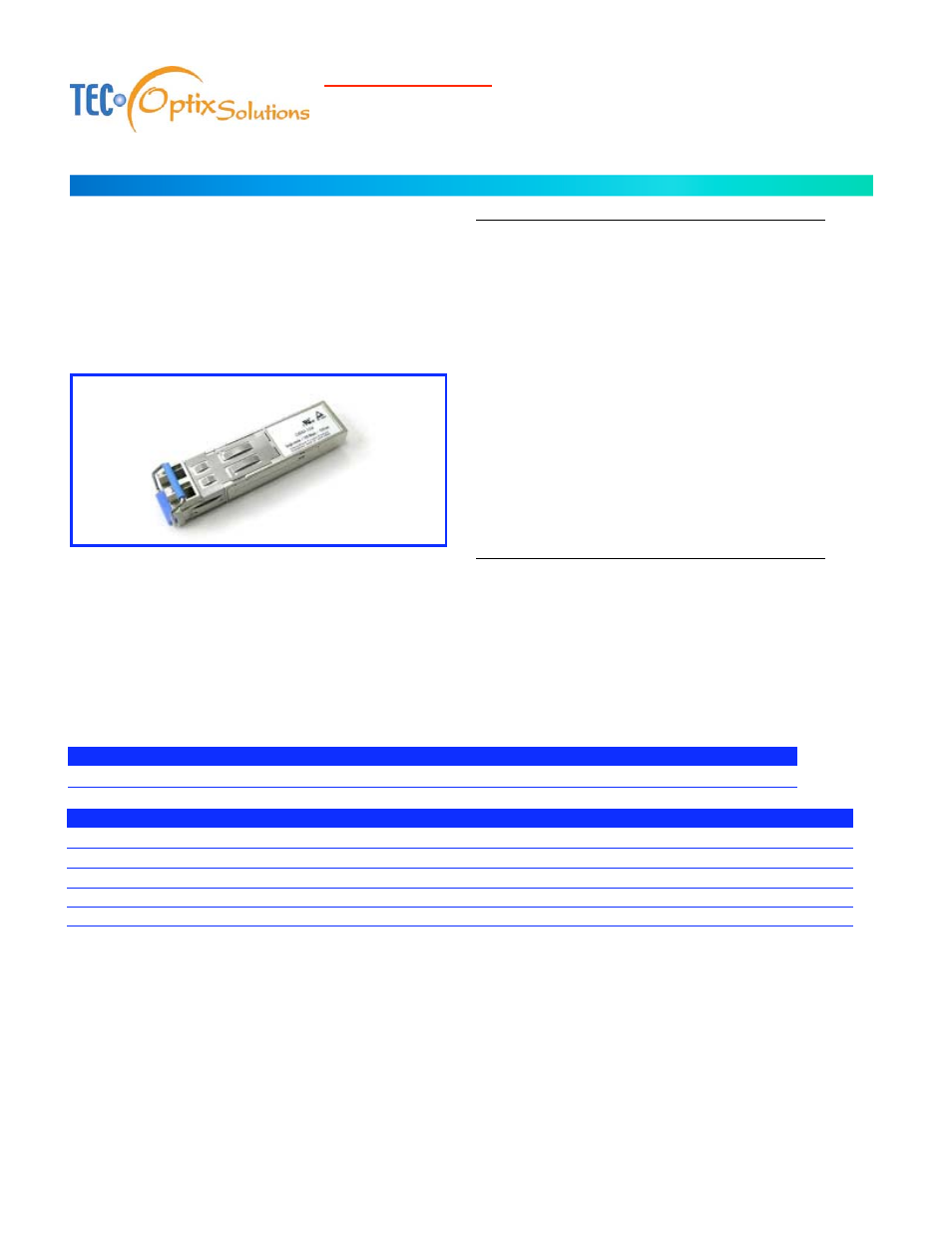

Lynn Electronics MC-SFP-MM-550M User Manual
Lynn Electronics Hardware

www.lynnelec.com
MC-SFP-MM-550M
850 nm Multi-mode Transceiver
Small Form Pluggable (SFP), 3.3 V
1.0625Gbd Fiber Channel/1.25 Gigabit Ethernet
Fiber Type 62.5/125 50/125
TEC Opitx Solutions
Division of Lynn Electronics Corp.
154 Railroad Drive • Ivyland, PA. 18974
800-523-6075 • fax 215-364-2944 • email: [email protected]
Features
Compliant with Fiber Channel 100-M5-SN-I and
100-M6-SN-I standard
Compliant with IEEE802.3z Gigabit Ethernet
standard
Industry standard small form pluggable (SFP)
package
Duplex LC connector
Differential LVPECL inputs and outputs
Single power supply 3.3V
TTL signal detect indicator
Hot Pluggable
Class 1 laser product complies with EN 60825-1
RoHS compliant
Application
Distributed multi-processing
Switch to switch interface
High speed I/O for file server
Bus extension application
Channel extender, data storage
Ordering Information
PART NUMBER
INPUT/OUTPUT
SIGNAL DETECT
VOLTAGE
TEMPERATURE
MC-SFP-MM-550
AC/AC
TTL
3.3V
0°C to 70 °C
Absolute Maximum Ratings
PARAMETER
SYMBOL
MIN
MAX
UNITS
NOTE
Storage Temperature
T
S
40
85
°C
Supply Voltage
Vcc
0.5
6.0
V
Input Voltage
V
IN
0.5
Vcc
V
Output Current
I
o
---
50
mA
Operating Current
I
OP
---
400
mA
