2

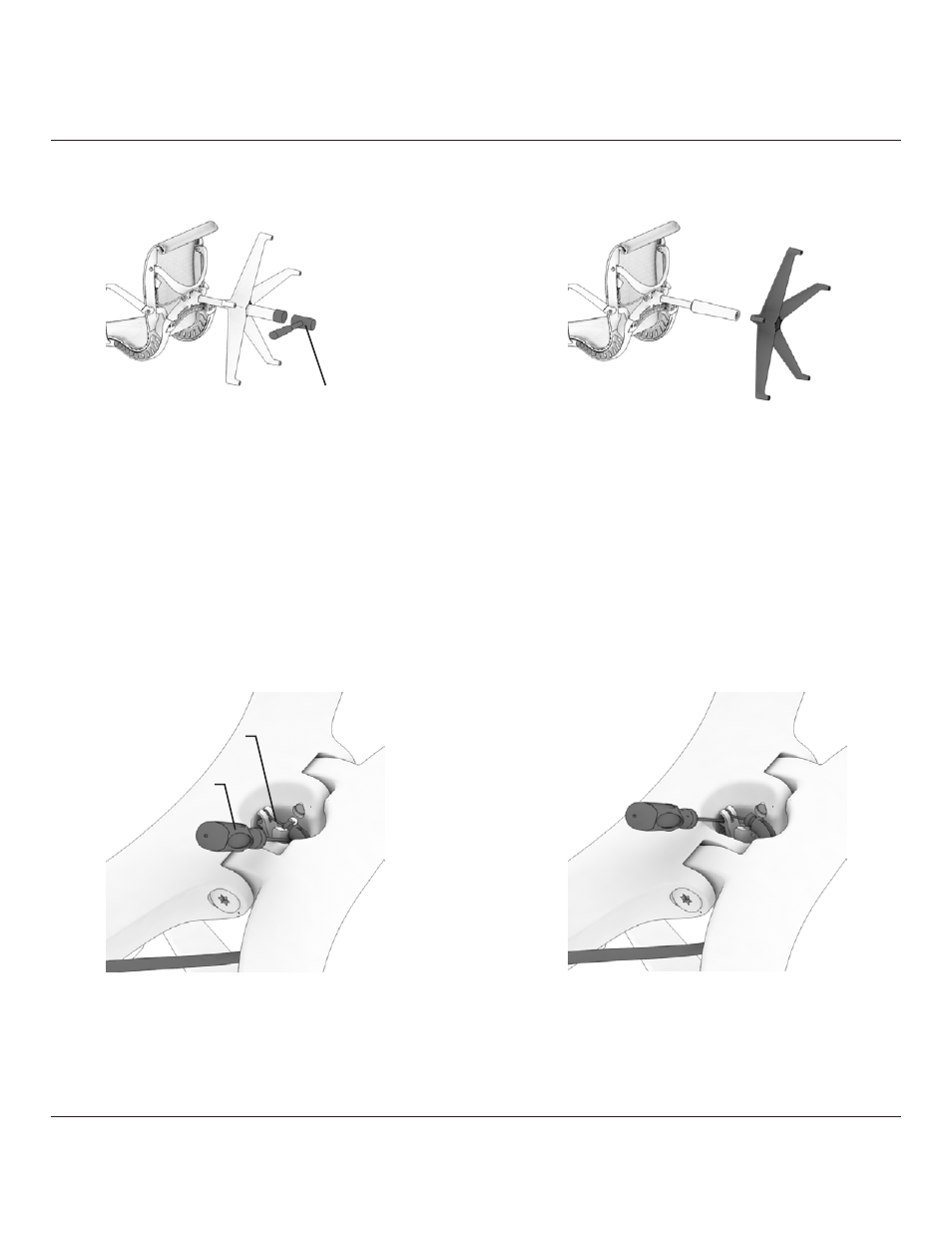

5.1 Use small Flathead
Screwdriver to disengage
black plastic connector of
Height Adjustment Cable
from top of Cylinder. 6.1 Use small Flathead
Screwdriver to disengage
ball of Height Adjustment
Cable from top of Cylinder.
3.1 Hold Base legs firmly and
strike the bottom of cylinder
with rubber mallet until Base
comes loose.
Caution:
Do not strike cylinder
directly with metal hammer, use
rubber mallet only!
Height Adjustment
Cable
Screwdriver
Rubber Mallet
4.1 Remove Base.
