4

Quick Start Guide

En

glis

h

Rear panel

The rear panel of GX1026 contains the power connector.

Hardware

Front panel

The front panel of GX1026 includes 24 10/100Mbps Fast Ethernet ports, 2

10/100/1000Mbps Gigabit Ethernet ports, and LED indicators that show the

working conditions of the switch.

Table 1. LED indicators

LED

Color

Status

Description

SYSTEM

Green

ON

The power is ON

STATUS

Green

ON

A device is connected to the port

Flashing

Transmitting data

OFF

No device connected

SPEED

Green

ON

100/1000Mbps

OFF

10Mbps

Power connector

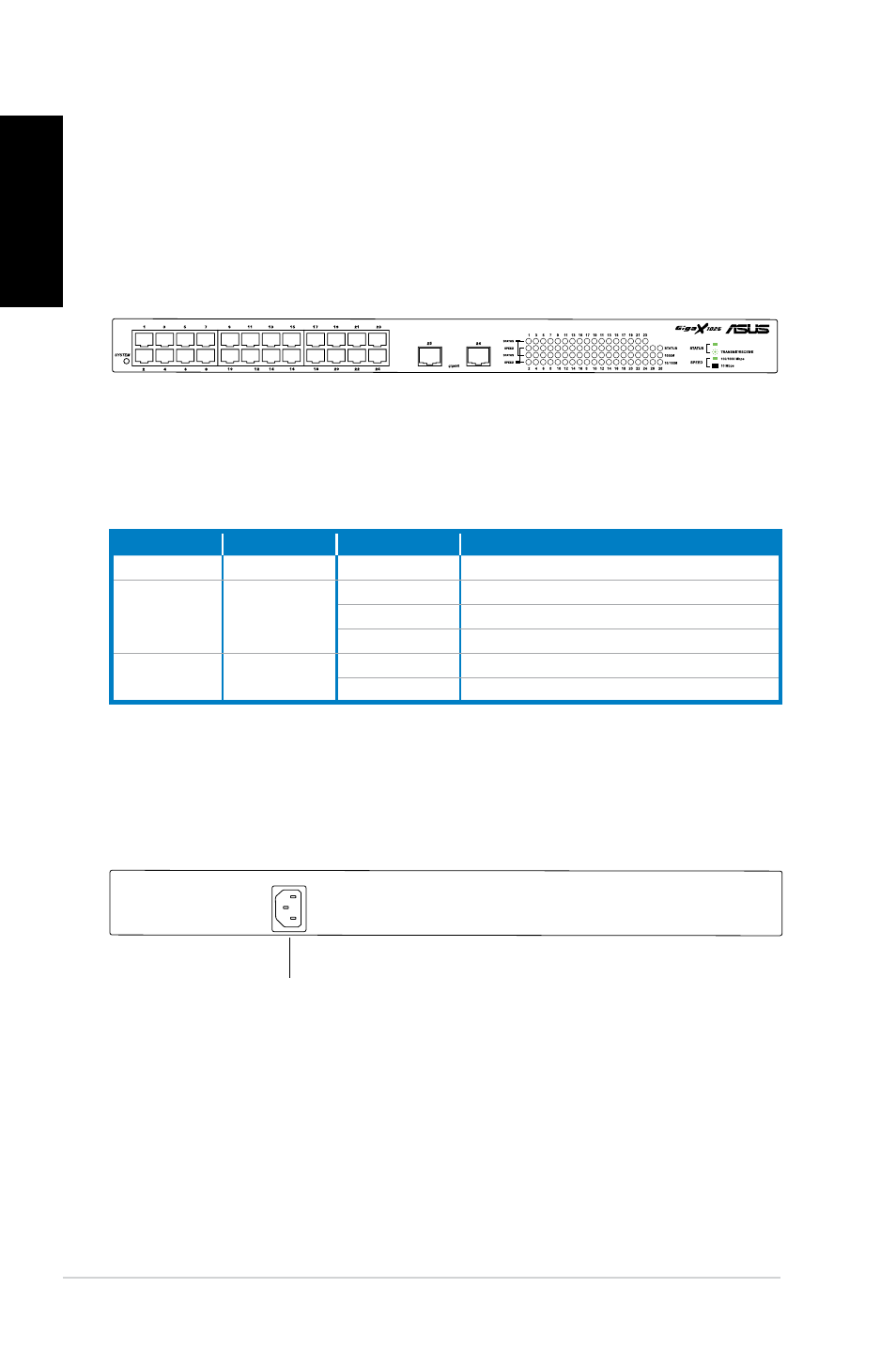

Figure 1. GX1026 front panel

Figure2. GX1026 rear panel
