English | 15
Bosch Power Tools 2 609 140 741 | (8.9.11)
Planing with Parallel/Beveling Guide (see figures D–F)
Mount the parallel guide 17 or beveling guide 21 to the ma-
chine using the corresponding fastening bolt 20. Depending
on the application, mount the rebating depth stop 24 with fas-
tening bolt 23 to the machine.
Loosen the locking nut 19 and adjust the requested rebating
width on the scale 18. Tighten the locking nut 19 again.
Adjust the requested rebating depth accordingly with the re-
bating depth stop 24.
Carry out the planing procedure several times until the re-
quested rebating depth is reached. Guide the planer applying
sideward supporting pressure.
Beveling with the Beveling Guide
When beveling rebates and
surfaces, adjust the required
slope angle with the angle ad-
justment 22.
Maintenance and Service
Maintenance and Cleaning
f Before any work on the machine itself, pull the mains
plug.
f For safe and proper working, always keep the machine
and ventilation slots clean.
Ensure easy operation of the park rest 25 and clean it regularly.
When the carbon brushes wear below acceptable service tol-
erances, the machine will automatically cut out. The machine
must be sent to customer service for maintenance (for ad-
dress, see the “After-sales Service and Customer Assistance”
section.
If the machine should fail despite the care taken in manufac-
turing and testing procedures, repair should be carried out by
an after-sales service centre for Bosch power tools.
In all correspondence and spare parts order, please always in-
clude the 10-digit article number given on the type plate of
the machine.
After-sales Service and Customer Assistance
Our after-sales service responds to your questions concern-
ing maintenance and repair of your product as well as spare
parts. Exploded views and information on spare parts can al-
so be found under:
www.bosch-pt.com
Our customer service representatives can answer your ques-
tions concerning possible applications and adjustment of
products and accessories.
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
Tel. Service: +44 (0844) 736 0109
Fax: +44 (0844) 736 0146
E-Mail: [email protected]
Ireland
Origo Ltd.
Unit 23 Magna Drive
Magna Business Park
City West
Dublin 24
Tel. Service: +353 (01) 4 66 67 00
Fax: +353 (01) 4 66 68 88
Australia, New Zealand and Pacific Islands
Robert Bosch Australia Pty. Ltd.
Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center
Inside Australia:
Phone: +61 (01300) 307 044
Fax: +61 (01300) 307 045
Inside New Zealand:
Phone: +64 (0800) 543 353
Fax: +64 (0800) 428 570
Outside AU and NZ:
Phone: +61 (03) 9541 5555
www.bosch.com.au
Republic of South Africa
Customer service
Hotline: +27 (011) 6 51 96 00
Gauteng – BSC Service Centre
35 Roper Street, New Centre
Johannesburg
Tel.: +27 (011) 4 93 93 75
Fax: +27 (011) 4 93 01 26
E-Mail: [email protected]
KZN – BSC Service Centre
Unit E, Almar Centre
143 Crompton Street
Pinetown
Tel.: +27 (031) 7 01 21 20
Fax: +27 (031) 7 01 24 46
E-Mail: [email protected]
Western Cape – BSC Service Centre
Democracy Way, Prosperity Park
Milnerton
Tel.: +27 (021) 5 51 25 77
Fax: +27 (021) 5 51 32 23
E-Mail: [email protected]

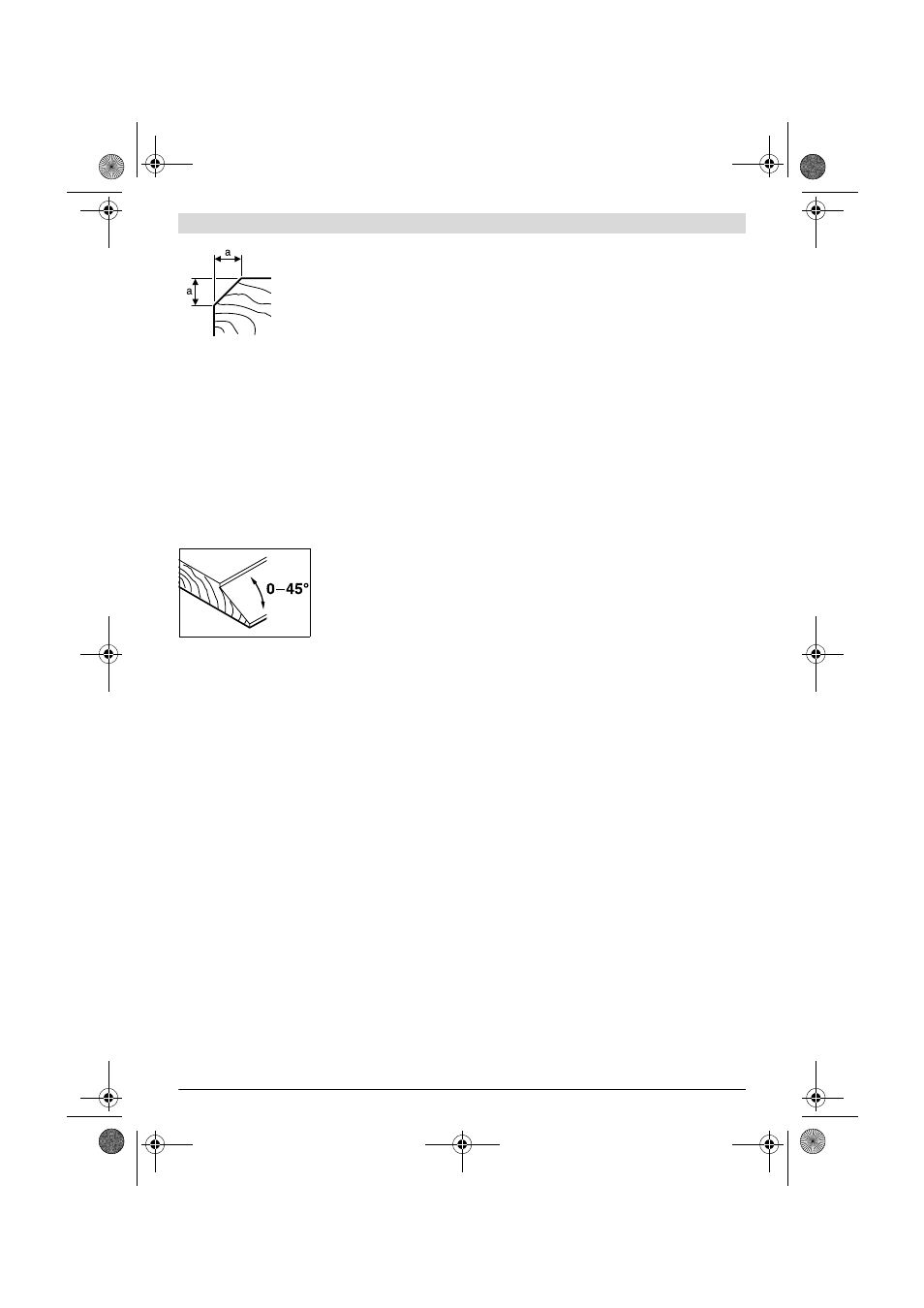

Groove to be used Dimension a
(mm)
none 0 – 4
small 2 – 6
medium 4 – 9
large 6 – 10
