Status Page
The GPSMAP 185 Sounder status page provides a visual reference of various
receiver functions, including current satellite coverage, receiver operating mode
and current receiver accuracy. The status information will give you an idea of
what the receiver is doing at any given moment.
The sky view and signal strength bars give you an indication of what satellites
are visible to the receiver and whether or not they are being tracked. The signal
strength is shown on a bar graph for each satellite, with the satellite number
below. When a satellite is visible but not being tracked, the strength bar will not
be shown and the sky view indicator will not be highlighted.
The sky view shows a bird’s-eye view of the position of each satellite relative
to the receiver’s last known position. The outer circle represents the horizon
(track up), the inner circle 45º above the horizon, and the center point a position
directly overhead. Use the sky view to determine if there are obstructions shading
your reception of GPS signals.
20
SECTION
1
STATUS PAGE
Receiver Status
Status Field
Horizontal Accuracy
Satellite
Sky View
Signal Strength
Indicators
Status Bar
Dilution of Precision
A B

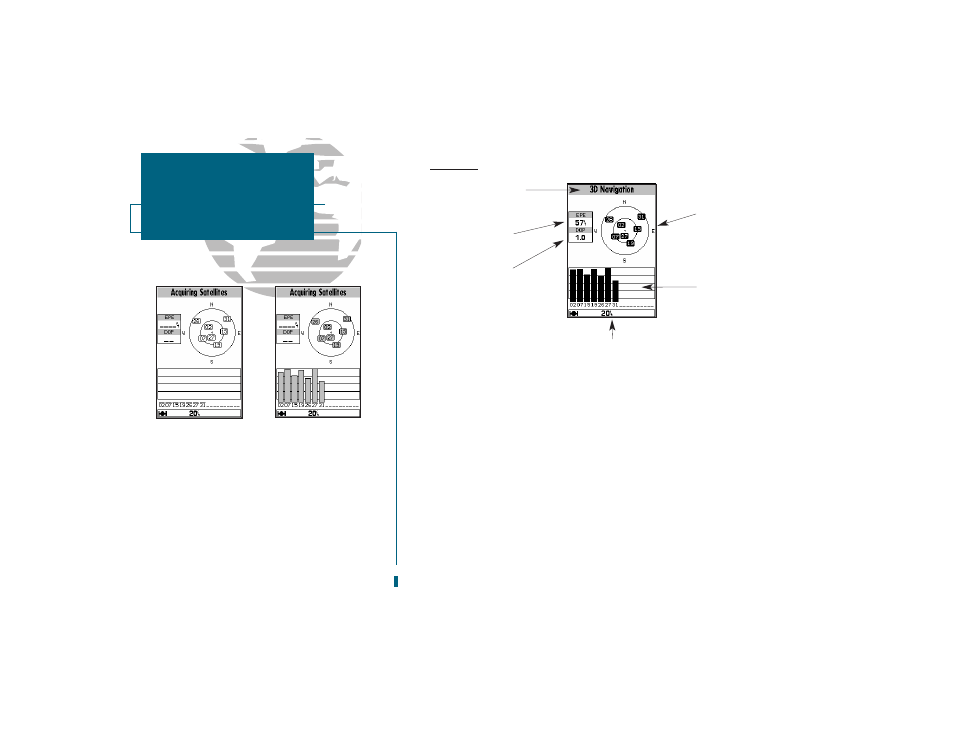

A. Whenever the GPSMAP 185 Sounder is searching
for satellites, no signal strength bars will appear.
B. Once the receiver has found the satellite(s) indi-
cated, a hollow signal strength bar will appear.
After satellite data has been collected, the signal
strength bars will become solid.
