28
ASRock 970 Extreme4 Motherboard

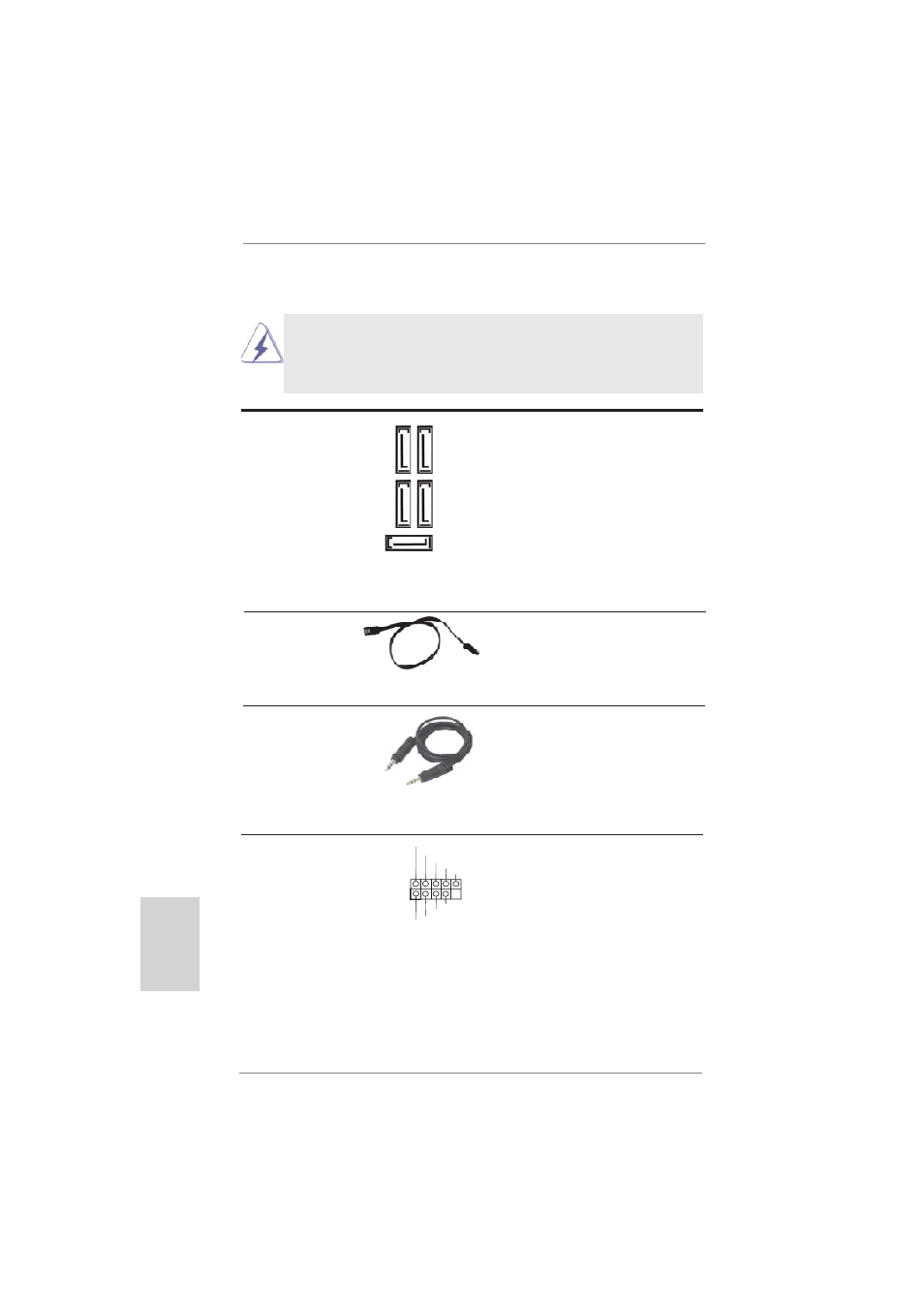

USB 2.0 Headers Besides four default USB 2.0
(9-pin USB_6_7) ports on the I/O panel, there
(see p.2 No. 27) are three USB 2.0 headers on
this motherboard. Each USB 2.0
header can support two USB
2.0 ports.
2.10 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
Serial ATA3 Connectors These fi ve Serial ATA3
(SATA3_1: see p.2, No. 16) (SATA3) connectors support
(SATA3_2_3: see p.2, No. 15) SATA data cables for internal
(SATA3_4_5: see p.2, No. 14) storage devices. The current
SATA3 interface allows up to
6.0 Gb/s data transfer rate.
SA
TA3_2_3 SA
TA3_4_5
SATA3_1
Serial ATA (SATA) Either end of the SATA data
Data Cable cable can be connected to the
(Optional) SATA3 hard disk or the SATA3
connector on this motherboard.
3.5mm Audio Cable Either end of the 3.5mm audio
(Optional) cable can be connected to the
portable audio devices, such
as MP3 player and mobile
phone or the Line-in port of
your PC.
P-7
P+7
GND
DUMMY
USB_PWR
USB_PWR
P-6
P+6
GND
1
