English – ASRock H61M-DPS User Manual

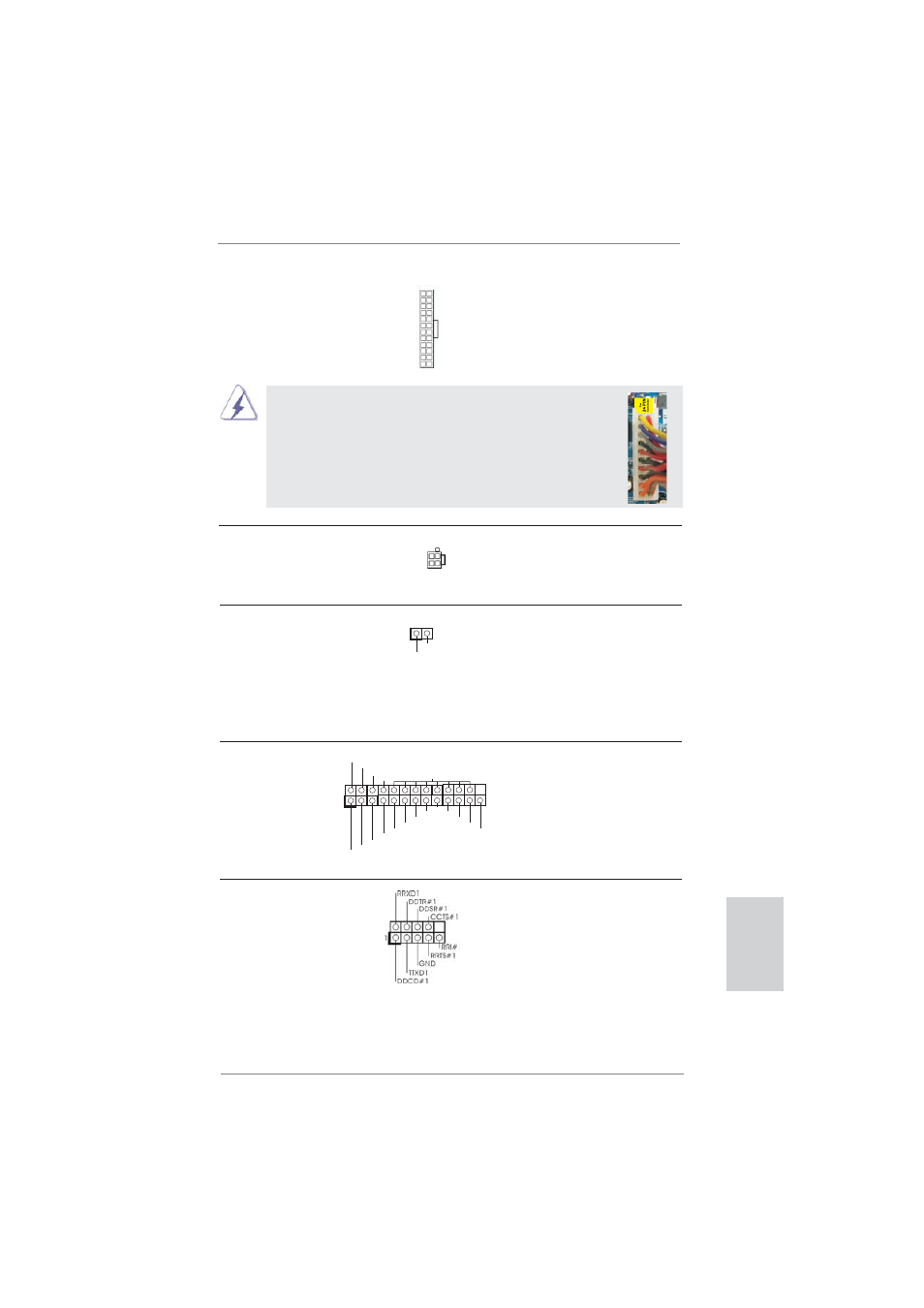

Page 13

background image

13

ASRock H61M-DPS Motherboard

English

ATX 12V Power Connector

Please connect an ATX 12V

(4-pin ATX12V1)

power supply to this connector.

(see p.2 No. 2)

Chassis Intrusion Header

This motherboard supports

(2-pin CI1)

CASE OPEN detection feature

(see p.2, No. 22)

that detects if the chassis cover

has been removed. This feature

requires a chassis with chassis

intrusion detection design.

1

Signal

GND

ATX Power Connector

Please connect an ATX power

(24-pin ATXPWR1)

supply to this connector.

(see p.2 No. 6)

12

1

24

13

20-Pin ATX Power Supply Installation

Though this motherboard provides 24-pin ATX power connector,
it can still work if you adopt a traditional 20-pin ATX power supply.
To use the 20-pin ATX power supply, please plug your
power supply along with Pin 1 and Pin 13.

12

1

24

13

Print Port Header

This is an interface for print

(25-pin LPT1)

port cable that allows

(see p.2 No. 19)

convenient connection of printer

devices.

1

AFD#

ERROR#

PINIT#

GND

SLIN#

STB#

SPD0

SPD1

SPD2

SPD3

SPD4

SPD5

SPD6

SPD7

ACK#

BUSY

PE

SLCT

Serial port Header

This COM1 header supports a

(9-pin COM1)

serial port module.

(see p.2 No. 18)
