English
Z87 OC Formula/ac / Z87 OC Formula

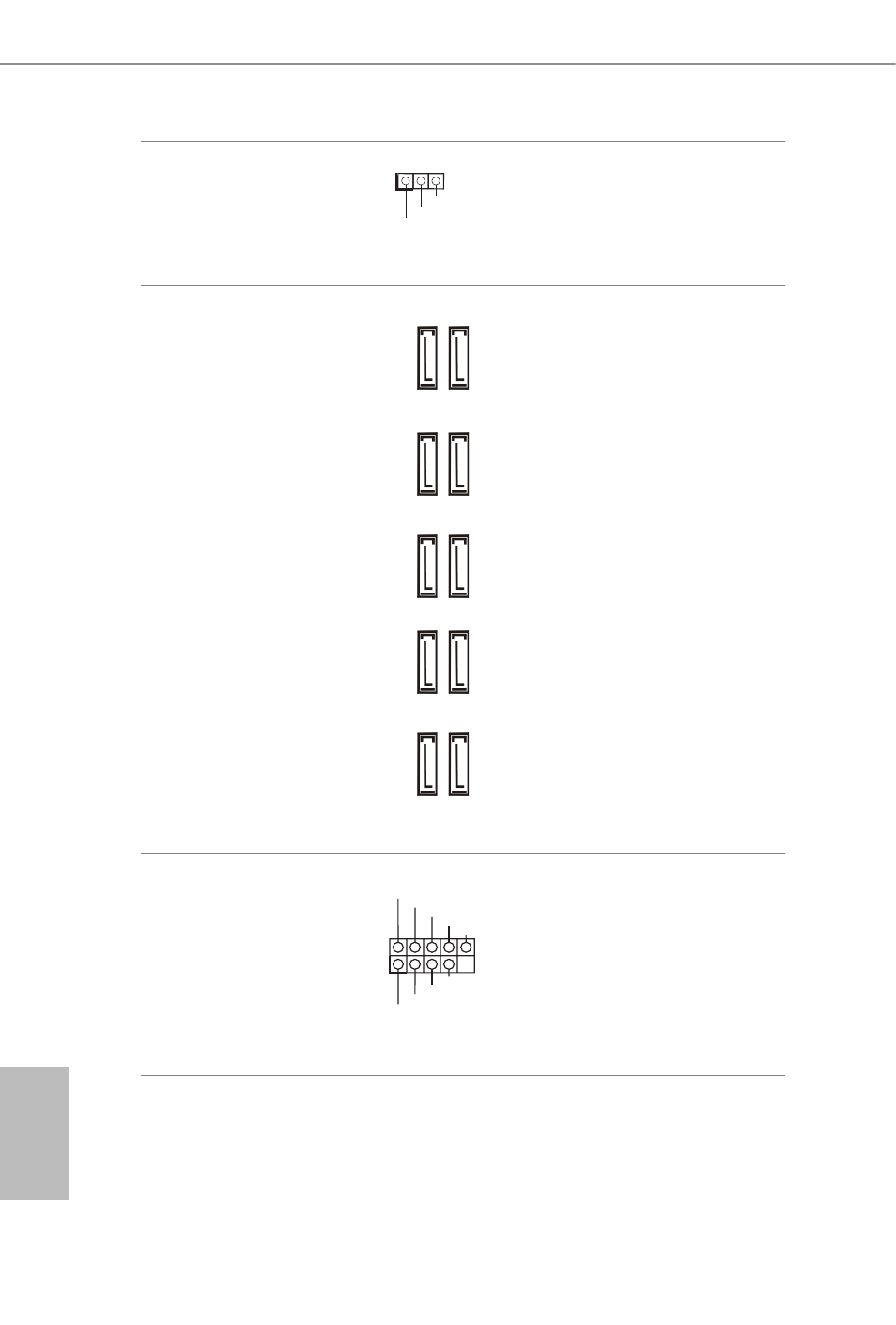

Power LED Header
(3-pin PLED1)
(see p.12, No. 17)
Please connect the chassis
power LED to this header
to indicate the system’s
power status.
Serial ATA3 Connectors
(SATA3_0_1:
see p.1 or 2, No. 22)
(SATA1_2_3:
see p.1 or 2, No. 23)
(SATA3_4_5:
see p.1 or 2, No. 24)
(SATA3_A1_A2:
see p.1 or 2, No. 21)
(SATA3_A3_A4:
see p.1 or 2, No. 20)
These ten SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
To minimize the boot
time, use Intel® Z87 SATA
ports (SATA3_0) for your
bootable devices.
USB 2.0 Headers
(9-pin USB2_3)
(see p.1 or 2, No. 33)
(9-pin USB4_5)
(see p.1 or 2, No. 36)
Besides two USB 2.0 ports
on the I/O panel, there
are two headers on this
motherboard. Each USB
2.0 header can support
two ports.
1
PLED+
PLED+
PLED-
SA
TA3_0_1
SA
TA3_4_5
SA
TA3_2_3
SA
TA3_A3_A4
SA
TA3_A1_A2
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
