338
uu Fuses u Fuse Locations
Han
d
lin
g the U
n
expected

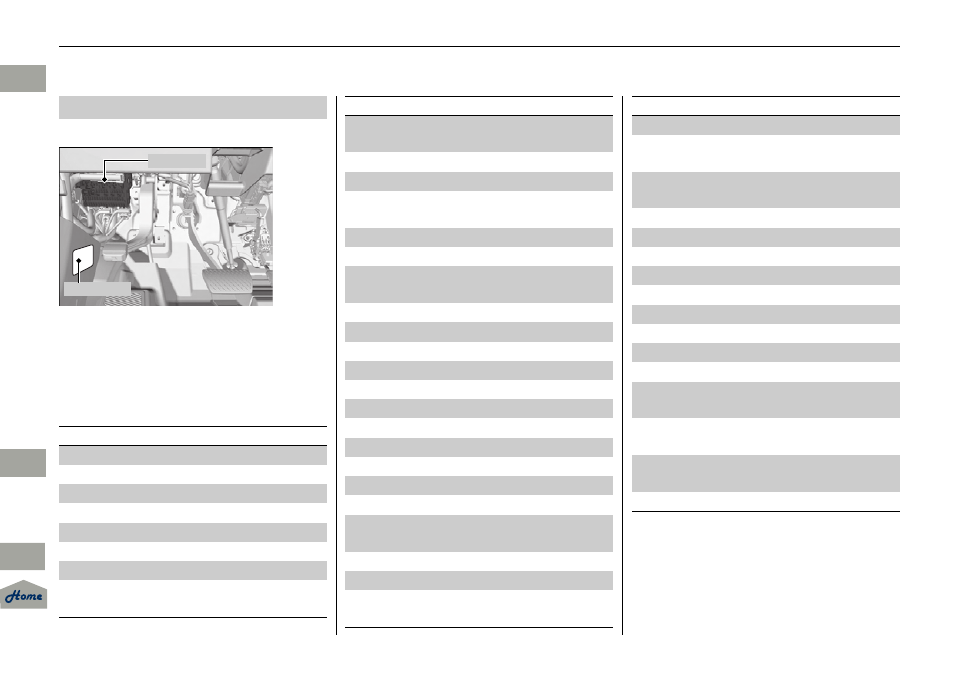

Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
■
Circuit protected and fuse rating
■ Interior Fuse Box
Fuse Label
Fuse Box
Circuit Protected Amps
1 − −
2 ACG 15 A
3 SRS 10 A
4 Fuel Pump 15 A
5 Meter 7.5 A
6 Option 7.5 A
7 VB SOL 10 A
8
Front Right Side
Door Lock Motor (Unlock)
15 A
9
Rear Left Side
Door Lock Motor (Unlock)
15 A
10 Power Lumbar 7.5 A
11 Moonroof 20 A
12
Accessory Power Socket
(Center Console)
15 A
13 Washer Main 15 A
14 Seat Heaters 15 A
15
Driver’s Door Lock Motor
(Unlock)
10 A
16 − −
17 − −
18 − −
19 ACC 7.5 A
20 ACC Key Lock 7.5 A
21 Daytime Running Lights 7.5 A
22 A/C 7.5 A
23 Rear Wiper 10 A
24 ABS/VSA 7.5 A
25 − −
26 Audio Amp 20 A
27
Accessory Power Socket
(Front)
15 A
28 − −
29 ODS 7.5 A
30
Driver’s Door Lock Motor
(Lock)
10 A
Circuit Protected Amps
31 Smart 10 A
32
Front Right Side
Door Lock Motor (Lock)
15 A
33
Rear Left Side
Door Lock Motor (Lock)
15 A
34 Small Lights 7.5 A
35 Illumination 7.5 A
36 Rear Wiper Main 10 A
37 − −
38 Left Headlight High Beam 10 A
39 Right Headlight High Beam 10 A
40 TPMS 7.5 A
41 Door Lock 20 A
42 Driver’s Power Window 20 A
43
Rear Right Side Power
Window
20 A
44
Front Right Side Power
Window
20 A
45
Rear Left Side Power
Window
20 A
46 Wiper 30 A
Circuit Protected Amps
