Getting Started
20
Navigation System

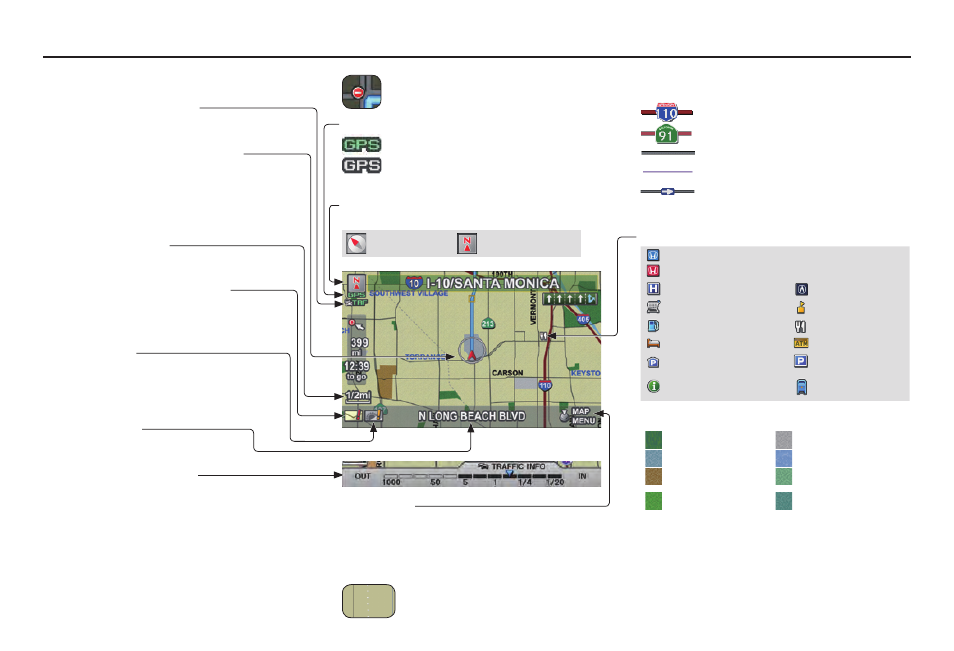

Map Screen Legend
Traffi c Status Indicator
(See page
Vehicle Position (see page
(Use voice command “Display
current location” or use the
Interface Dial to show current
location.)
Current Map Scale
(see page
Message Icon (see page
Indicates that you have an
AcuraLink message.
Warning Icon
Indicates that there are weather
warnings. To check the warning
list, see page
Map Scale Adjustment
(Mile or km per half-inch appears only
when you zoom in or out by rotating the
Interface Dial knob.)
NOTE:
See Map Legend in the
Map
Information
on the
MAP MENU
screen for further explanation.
Streets
(see
Map Overview
on page
: Freeways (Red)
: State Routes (Pink)
: Verifi ed Streets (Gray)
: Unverifi ed Streets (Purple)
(1/20 mile scale only)
Landmark Icon - Generic (see page
Honda Dealer (USA)
Honda Dealer (Canada)
Hospital
Acura Dealer
Grocery Store
School
Gas Station
Restaurant
Hotel/Lodging
ATM
Parking Garage
Parking Lot
Freeway Exit
Information
Post Offi ce
Map Features
Park
Airport/Business
Hospital
Body of Water
Shopping Mall
Cemetery
Golf Course/
Stadium
University
NOTE:
If you move the
Interface Dial
over
an area (map features shown above),
the name is displayed at the top of the
screen.
No Entry Icon
GPS Signal Strength
: Best Reception
: Good Reception
(Missing): Poor/No Reception
Map Orientation
(see page
“Heading Up”
“North Up”
Map Menu
(see page
(Push in on the Interface Dial to view.)
“ Breadcrumbs”
(see
Off-road Tracking
on page
