Page 20: Getting started, Map screen legend
20
Navigation System
Getting Started

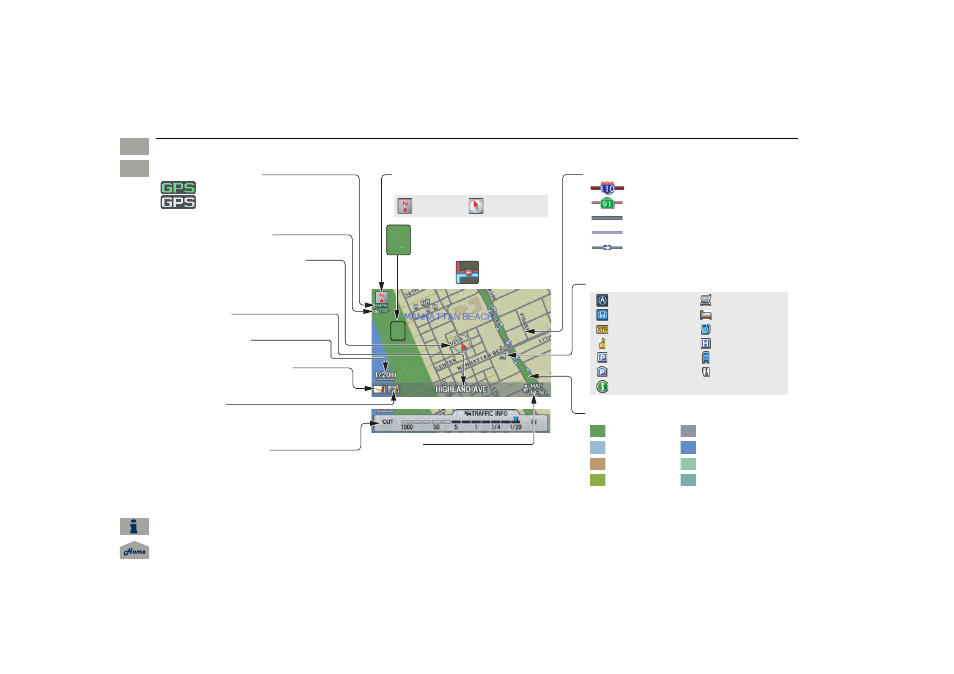

Map Screen Legend
: Park
: Hospital
: Shopping Mall
: Golf Course
: Airport/Business
: Water Area
: Cemetery
: University
Traffic Status Indicator
(see page
Vehicle Position
(see page
(Use voice command “Display
current location” or use the
Interface Dial
to show current
location.)
Current Map Scale
(see page
Message Icon
(see page
Indicates that you have an
AcuraLink message.
Warning Icon
Indicates that there are weather
warnings. To check the warning
list, see page
Current Street
(see page
Map Scale Adjustment
(Mile or km per half-inch appears only
when you zoom in or out by rotating the
Interface Dial knob
.)
NOTE:
See Map Legend in the Map Information
on the
Map menu
for further explanation.
No Entry Icon
GPS Signal Strength
: Best Reception
: Good Reception
(Missing): Poor/No Reception
Map Orientation
(see page
Map Menu
(see page
(Push in on the
Interface Dial
to view.)
Breadcrumbs
(see
Off-road Tracking
on
page
Streets
(see
Map Overview
on page
: Freeways
: State Routes
: Verified Streets
: Unverified Streets
: One-way Streets (see page
(1/20 mile scale only)
Landmark Icon - Generic
(see page
)
Grocery Store
Hotel/Lodging
Gas Station
Hospital
Post Office
Restaurant
Acura Dealer
Honda Dealer
ATM
School
Parking Lot
Parking Garage
Freeway Exit Information
NOTE:
If you move the Interface Dial over an area (map features
shown above), the name is displayed at the top of the screen.
North-up
Heading-up
Map Features
Navigation System Manual
2013 MDX
