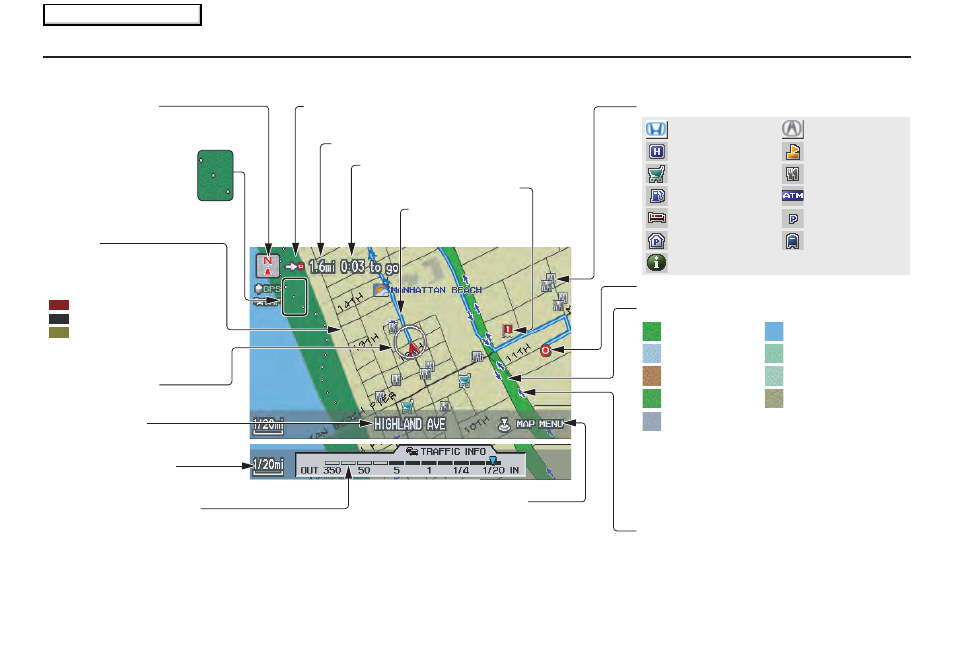

Map Screen Legend
Acura Dealer
School
Restaurant
ATM
Parking Lot
Post Office
Honda Dealer
Hospital
Grocery Store
Gas Station
Hotel/Lodging
Parking Garage
Freeway Exit Information
Landmark Icon - Generic (see page
64
)
Destination Icon (see page
64
)
Map Features
NOTE:
If you move the Interface Dial over an area (map
features shown above), the name is displayed on
the screen.
: Park
: Hospital
: Shopping Mall
: Golf Course
: Water Area
: Cemetery
: University
: Indian Reservation
: Airport/Stadium/Business
Map Scale Adjustment
(Mile or km per half inch appears
only when you zoom in or out by
rotating the Interface Dial knob.)
(see page
62
)
NOTE:
See
Map Legend
on the
INFO
screen (
Other
) for further explanation (see page
90
).
Current Map Scale
(see page
62
)
Current Street
(see page
71
)
Vehicle Position
(see page
71
)
“Breadcrumbs”
(see Off-road Tracking
on page
70
)
Direction of Destination (when en route)
(see page
58
)
Map Orientation
(see page
63
)
Distance to Destination (see page
58
)
Time to Destination (see page
58
)
Waypoint (see page
75
)
Blue Line
Calculated route
(see page
55
)
Map Menu (see page
58
)
(Push in on the Interface Dial to view.)
One-Way Traffic Icon
(1/20 mile scale only) (see page
64
)
Streets
(see Map Overview on
page
6
, or Unverified Area
Routing on page
102
)
Interstates or Freeways
Verified Streets
Unverified Streets
