3
Setting the Flowrate on the Pediatric
Flowmeter
WARNING
DO NOT select a different setting unless your
physician has prescribed a change in the flow-
rate of the PreciseR
X
TM Pediatric Flowmeter.
1. Set the PEDIATRIC FLOWMETER to the setting
pescribed by your physician.
NOTE: Flowrate on the standard concentrator
flowmeter will drop below the 2 L/min. setting when
Invacare PreciseR
X
TM Pediatric Flowmeter is installed and
operating.

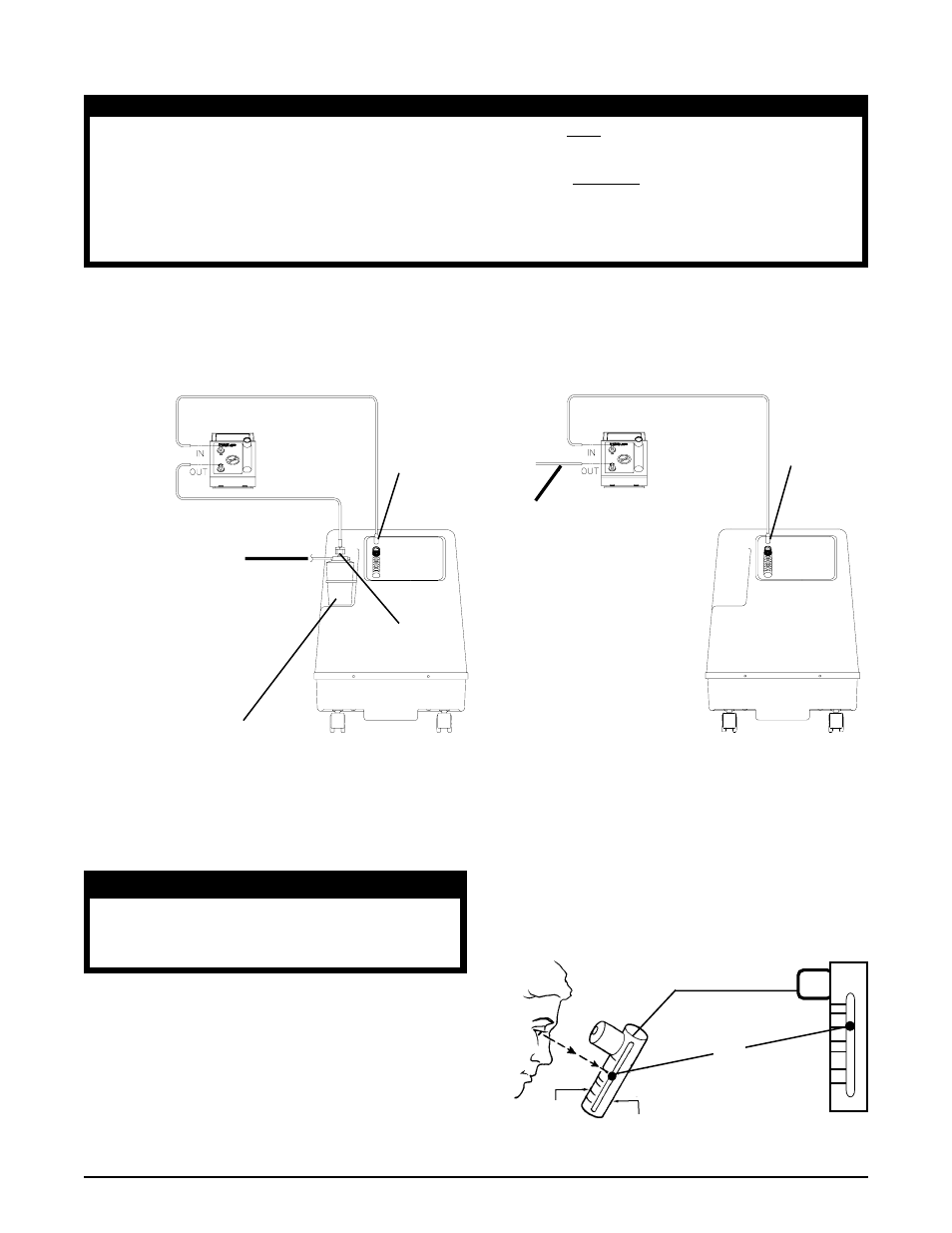

FIGURE 3- SETUP/OPERATION OF THE PRECISER
X
TM
PEDIATRIC FLOWMETER (PF16)
W/ALL IRC301, 3LX, 501, 5LX, 5LXO2, AND 6LXO2 MODELS
WARNING
Total length of ALL tubing for the PEDIATRIC FLOWMETER with Humidifier Bottle CANNOT ex-
ceed 39 ft.
Total length of ALL tubing for the PEDIATRIC FLOWMETER without Humidifier Bottle CANNOT
exceed 50 ft.
Connect cannula to child ONLY after ALL tubing connections have been made. Possible
water feedback through the tubing could occur if this sequence is NOT followed.
Pediatric Flowmeters - Tube Lengths
7 Ft. Length
7 Ft. Length
7 Ft. Length
Humidifier Bottle
Adapter Inlet
Oxygen
Output
Fitting
Humidifier Bottle
HUMIDIFIER BOTTLE
OXYGEN OUTPUT - Connect
Nasal Cannula to Patient (25 ft.
MAXIMUM CP Tubing may be
used with nasal cannula).
Oxygen
Output
Fitting
OXYGEN OUTPUT - Connect
Nasal Cannula to Patient (25 ft.
MAXIMUM CP Tubing may be
used with nasal cannula).
STANDARD HOOKUP HUMIDIFIER BOTTLE
HOOKUP
Scale
Back
Ball
Flowmeter
Side
View
FIGURE 2 - OPERATION/ALIGNMENT OF SCALE FIGURE 2 - OPERATION/ALIGNMENT OF SCALE FIGURE 2 - OPERATION/ALIGNMENT OF SCALE FIGURE 2 - OPERATION/ALIGNMENT OF SCALE FIGURE 2 - OPERATION/ALIGNMENT OF SCALE
2. Bisect the ball in the flowmeter with the line of the
prescribed flowrate on the Pediatric Flowmeter when
setting the flowrate. This will ensure an accurate
flowrate (FIGURE 2).
3. CONNECT CANNULA TO THE CHILD.
