2.0. APG8201 PINhandy
2.1. Device and Parts

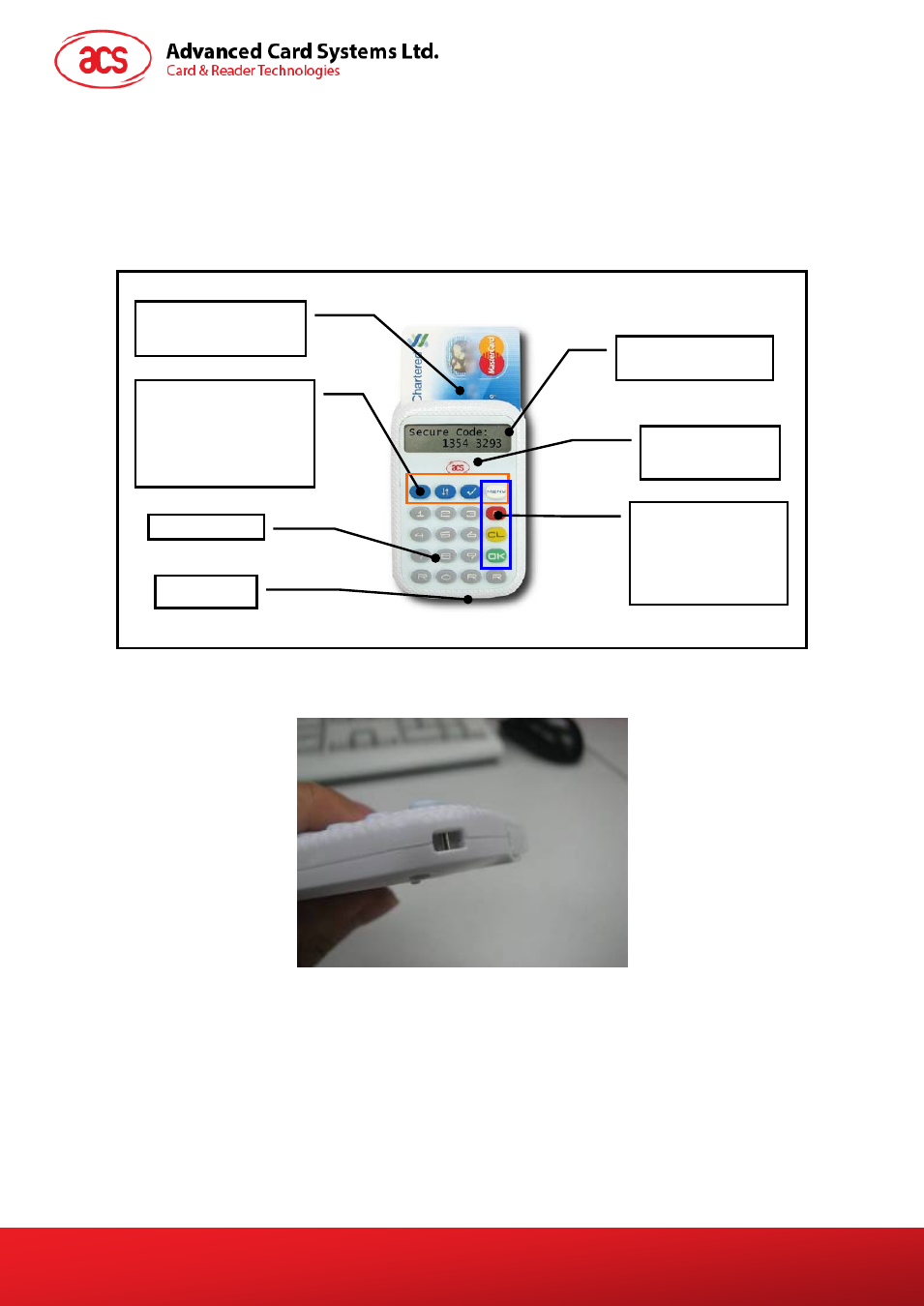

Figure 1 shows the different parts of the APG8201 PINhandy 1 and their descriptions. Figures 2 and 3
show the string holder which is located at the bottom left corner and the USB port at the bottom of the
device, respectively.
Figure 1: APG8201 Main Components
Figure 2: APG8201 String Holder
Card Slot
(Contact Type Connector)
LCD (2x16 Characters)
Large Area for Logo
Function Keys:
1. Menu
2. Cancel (C)
3. Backspace (CL)
4. Confirm (OK)
5. ePurse
Authentication Modes (L-R)
1. OTP
2. Challenge-response
3. Signature
4. TDS
Numeric Keys
USB PORT
