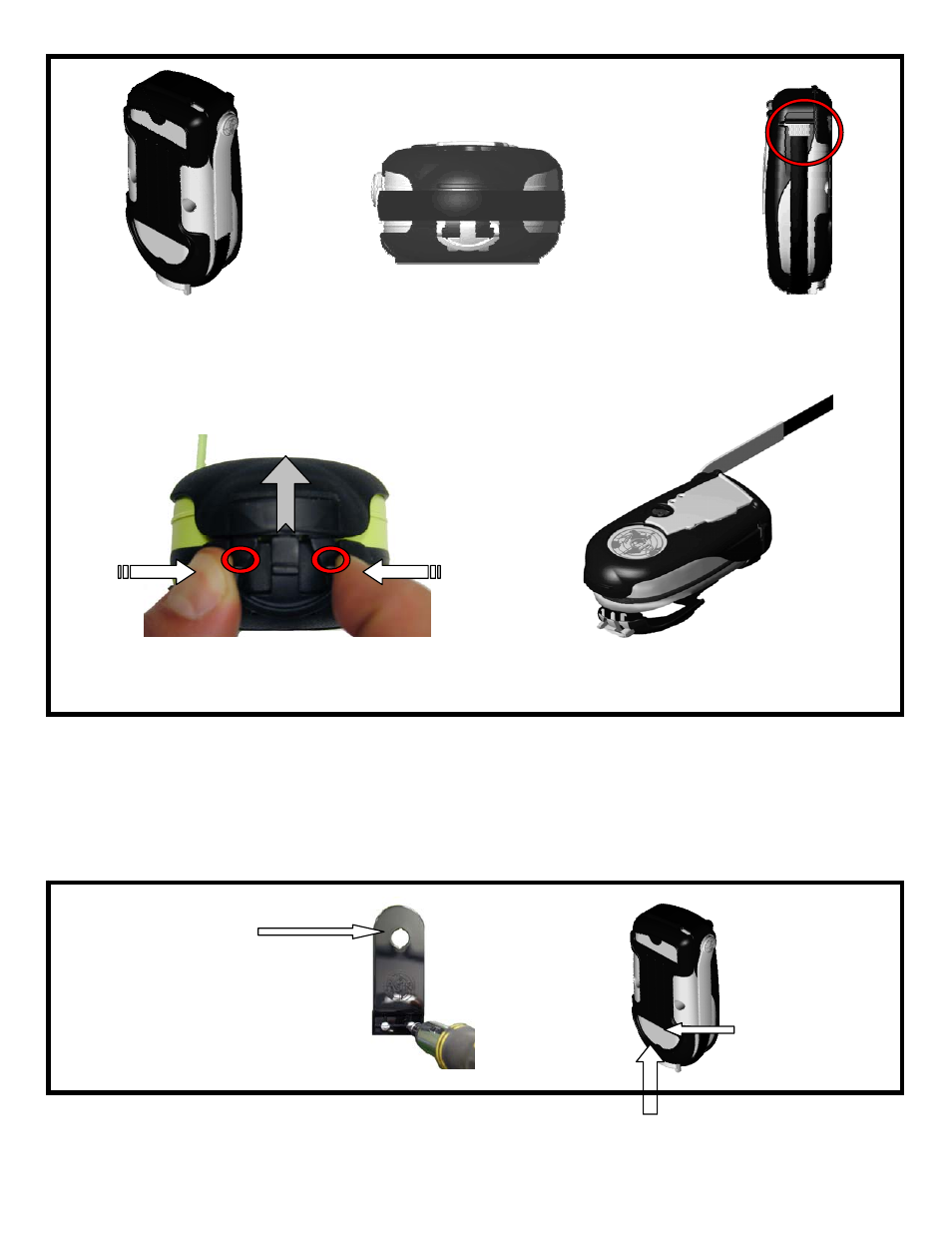

Figure 8.
Removable Holster
To Open the Holster, squeeze inward on the two tabs located on the bottom clip and pull up on the top of the
holster. Rotate antenna up, and slide the holster off around the antenna.
To secure antenna when the holster is on your AquaFix™, be sure to deploy antenna prior to placing the holster onto
the unit. Slide the antenna through the holster to secure it to the beacon. The holster will clip together at the bottom
of holster. Rotate antenna into down position in order to wrap it around the holster to lock it in place. Make sure the
antenna runs between the two guides on the bottom of the holster. This will prevent the antenna from slipping out of
position. Finally lock the antenna into place by engaging the tab located on the antenna into the slot provided on the
top right corner of the holster. Slide it in to lock in place.
5.3
The AquaFix™ also comes with a bulk head mounting clip that allows you to easily mount your P-
EPIRB to your console or bulk head. Simply bolt the mounting clip to your desired location and
slide the P-EPIRB onto the clip ensuring that the bottom back of the holster slides over the clip to
secure it in place (See figure 9).
Connect GPS Interface Cable
to the bulk head mount
when P-EPIRB is not attached.
Figure 9.
Bulk Head Mount
Holster opening for the
bulk head mount.
