PCH 5121
12.1” industrial Panel PC
1000-nit Sun light readable screen
IP67 rated fully enclosure
ƒ
Serial Port5 Address [2F0]
Selects the serial port base address.
Disabled
No base address
2F0 DEFAULT
I/O address 2F0
ƒ
Serial Port5 IRQ [10]
Use the Serial Port5 IRQ option to select the interrupt address for serial port 5.
10
DEFAULT
IRQ address 10
5.3.4 HARDWARE HEALTH CONFIGURATION

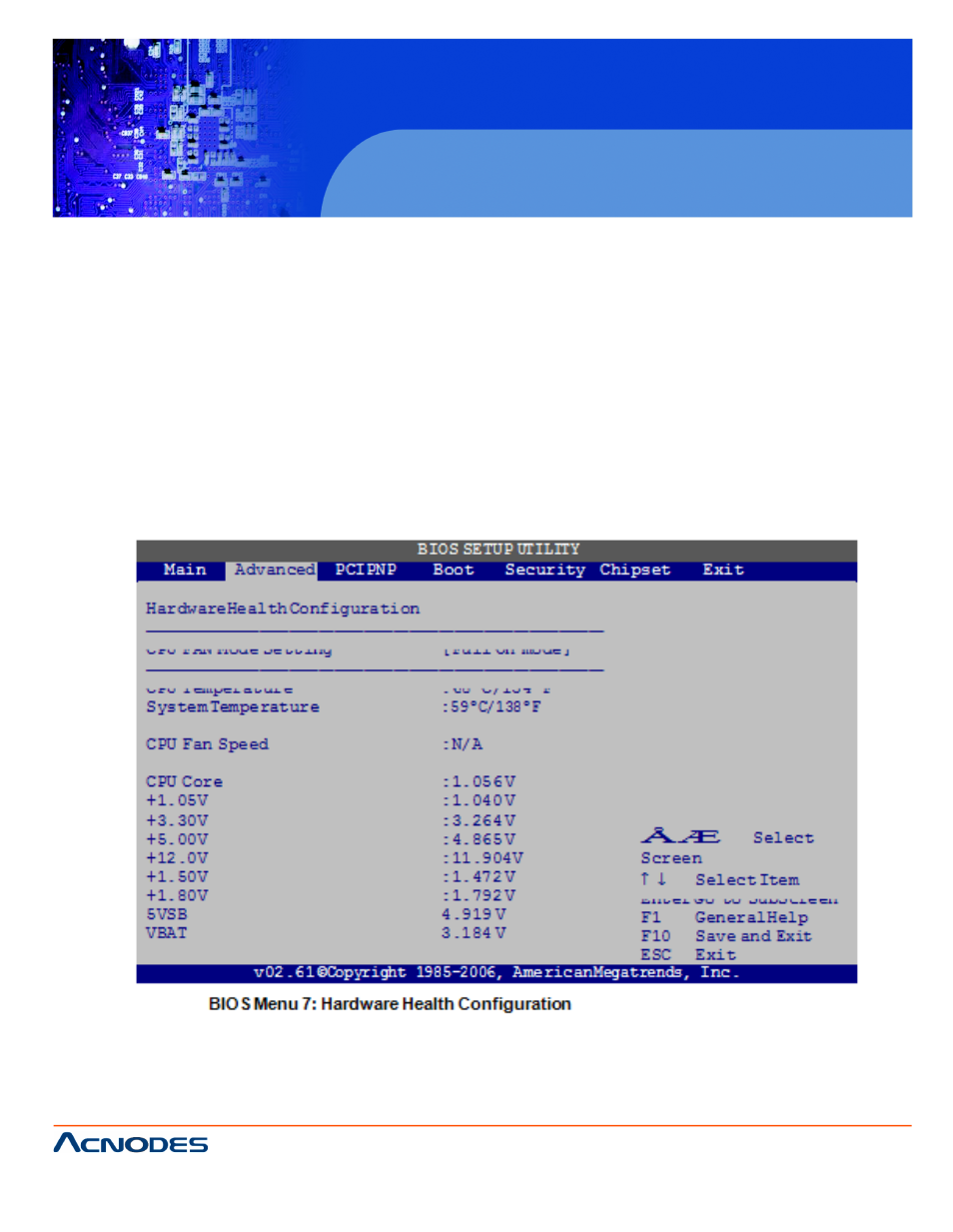

The Hardware Health Configuration menu (BIOS Menu 7) shows the operating temperature, fan
speeds and system voltages.
ƒ
Mode Setting [Full On Mode]
Use the Mode Setting option to configure the second fan.
