APH 8170

17” Industrial Panel Mount Monitor

1000-nit High Brightness LCD

P.1

UM-UV-H17-Q412V3

www.austin-hughes.com

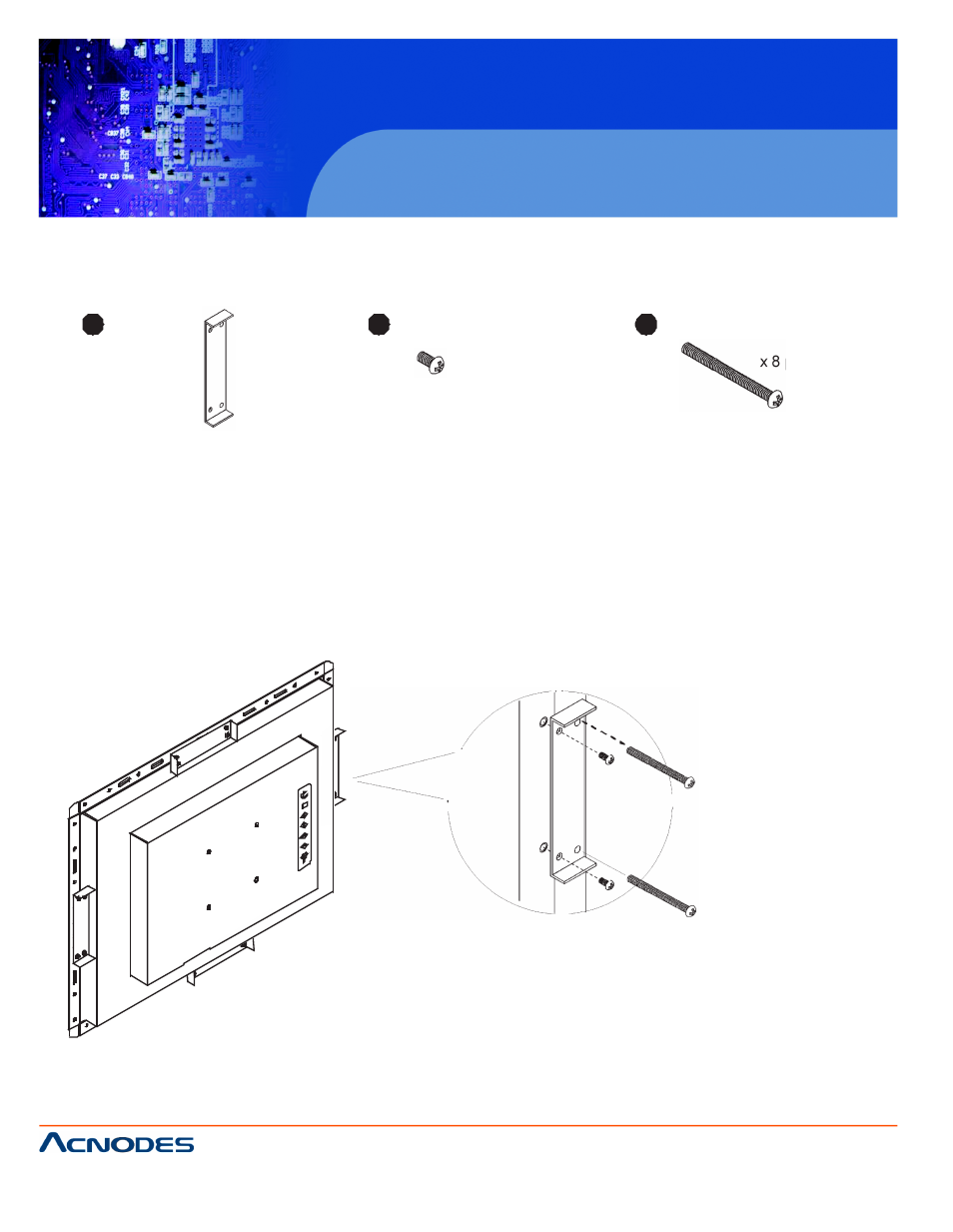

< 1.3 > Mounting Hardware - APH8170

1

Mounting

bracket

x 4 pcs

2

M4*6mm screw

x 8 pcs

3

M4*50mm screw

x 8 pcs

Hardware set part no. UV-BK#2

Steps

¦

Install 4 mounting brackets with 8 x M4*6mm screws

¦

Adjust the LCD panel with 8 x M4*50mm screws and fix it on the surface.
