APH 8170
17” Industrial Panel Mount Monitor
1000-nit High Brightness LCD

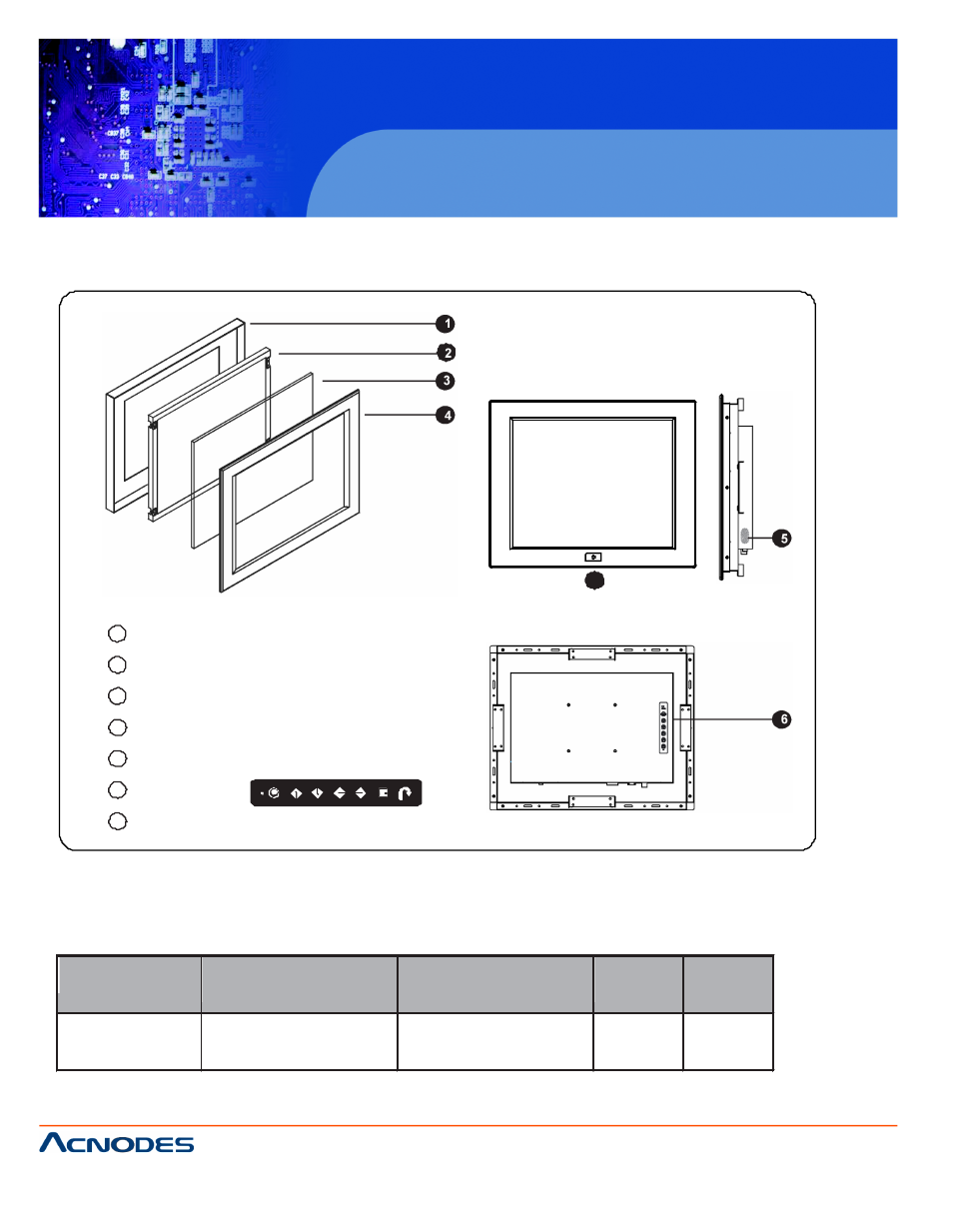

< 1.2 > Structure Diagram - APH8170
1
2
3 Front view
4
HAP-17
5
7
1 Rear case
2 LCD panel
3 Protective 3mm glass
4 6mm aluminum front bazel
5 Audio speaker ( for HDMI, Audio or TV option )
6 LCD membrane
7 Remote sensor
Rear view
6
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
APH8170
439 x 64 x 357 mm
17.3 x 2.5 x 14 inch
615 x 113 x 523 mm
25.6 x 4.9 x 23.5 inch
5.5 kg
12 lbs
7.5 kg
17 lbs
