FPC 7120

Fanless Touch panel PC

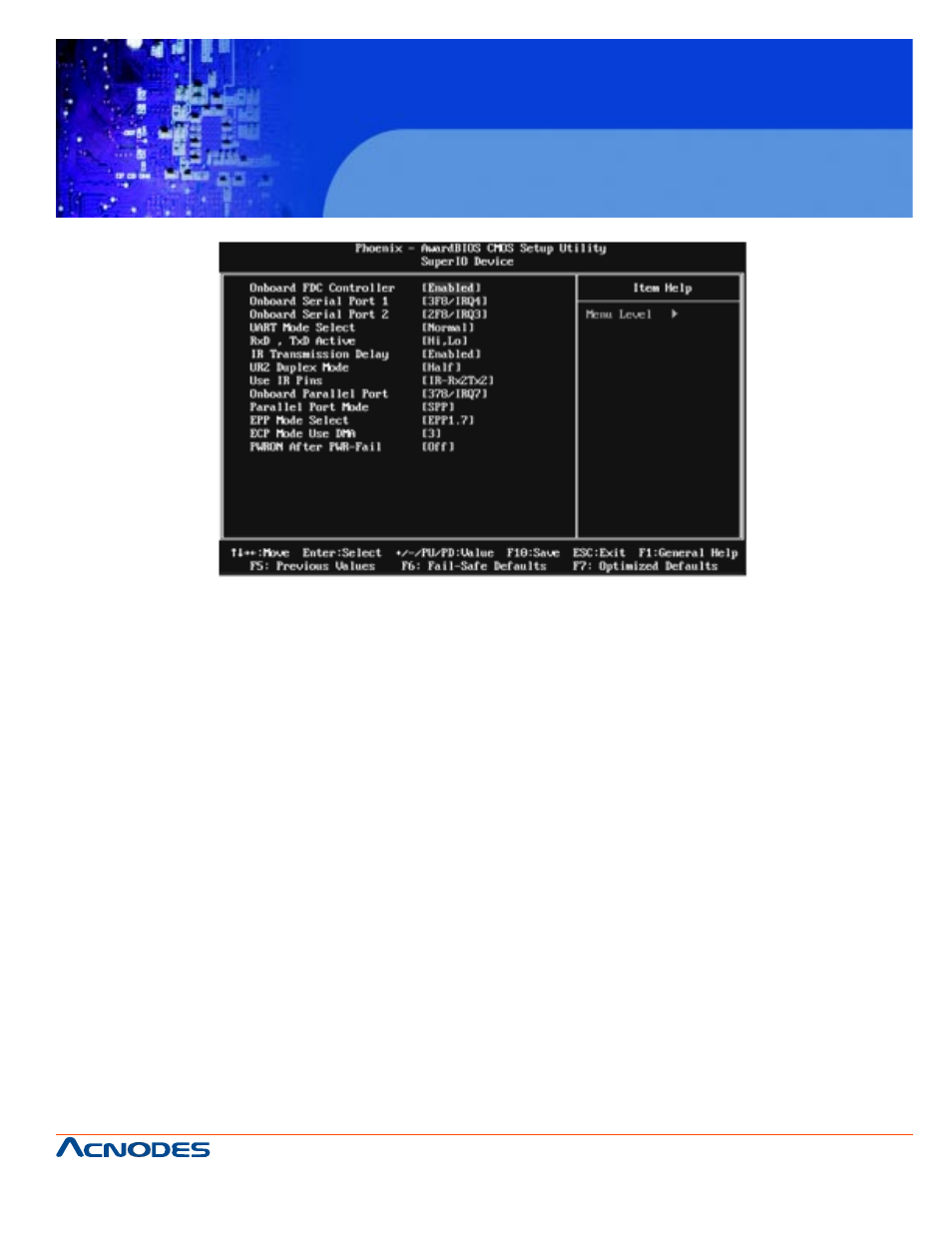

Super IO Device

>Onboard FDC Controller
Options: Enabled, Disabled
Default: Enabled
>Onboard Serial Port 1
Options: Disabled, 3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3, Auto
Default: 3F8/IRQ4
>Onboard Serial Port 2
Options: Disabled, 3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3, Auto
Default: 2F8/IRQ3
>UART Mode Select
Options: IrDA, ASKIR, Normal
Default: Normal
>Onboard Parallel Port
Options: Disabled, 378/IRQ7, 278/IRQ5, 3BC/IRQ7
Default: 378/IRQ7
>Parallel Port Mode
Options: SPP, EPP, ECP, ECP/EPP, Normal
Default: SPP

Onboard Serial Port 3
This option is used to assign the I/O address and Interrupt Request (IRQ) for the onboard Serial
Port.
Options: 280, 288, 2A0, 2A8
Default: 280
