RMW 7170
17” 1920x1200 Full HD Widescreen LCD
6U Rackmount Display Panel

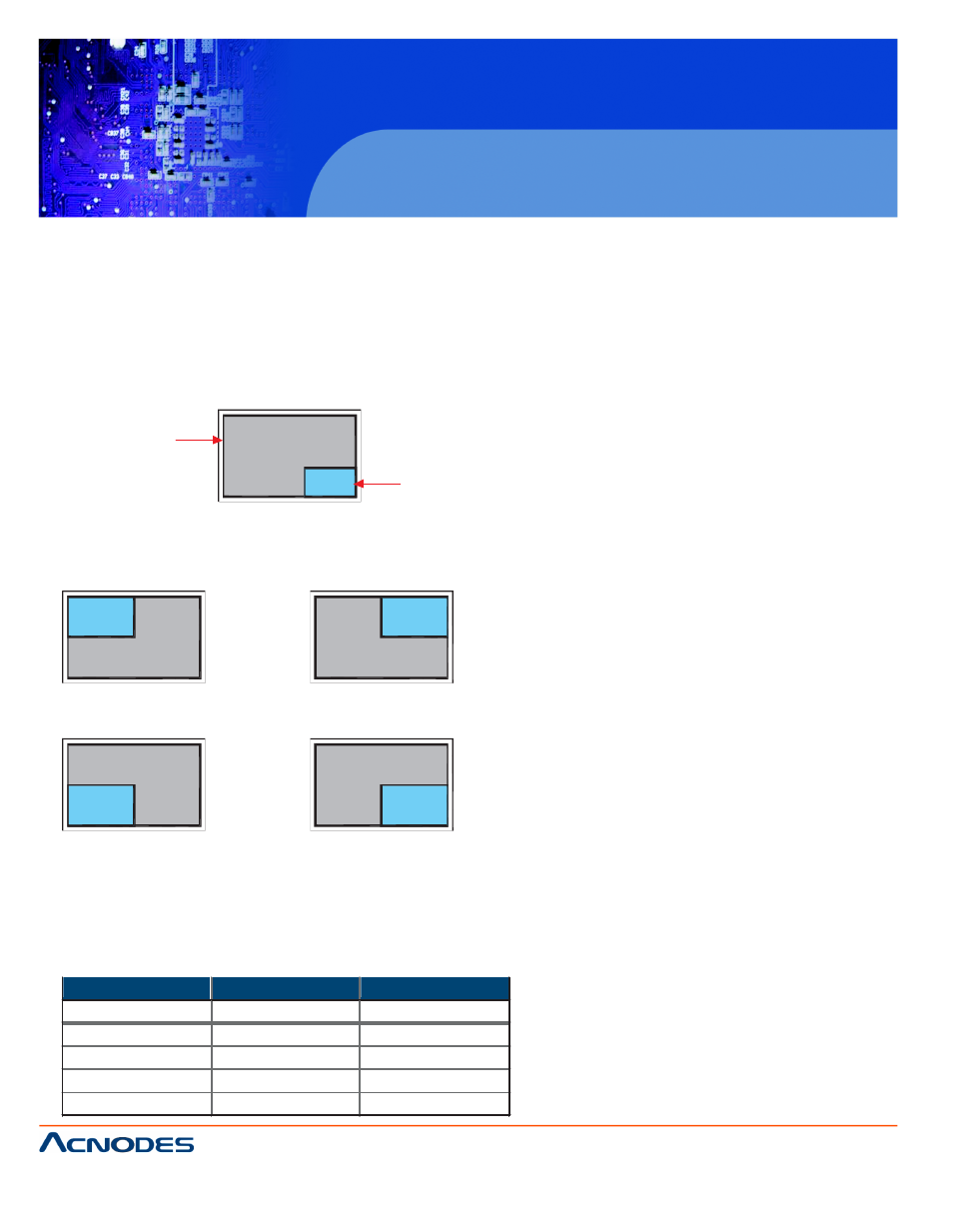

< 2.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP )
< 2.3.1 > Picture in Picture ( PIP )
Mode
Display the Sub screen in the Main screen.
OSD Menu
? MISC ? PIP Mode ? Large / Small / OFF
Main screen
Sub screen
Position
Adjust the position of the Sub screen ( top left, bottom left, top right, bottom right )
OSD Menu
? MISC ? PIP Position ? top left / top right / bottom left / bottom right
top left top right
bottom left bottom right
Size
Adjust the size of the Sub screen ( Large / Small )
OSD Menu
? MISC ? PIP Mode ? Large / Small
Size of Sub screen
LCD Monitor Large Sub screen Small Sub screen
1920 x 1200 552 x 414 480 x 360
1920 x 1080 552 x 414 480 x 360
1440 x 900 414 x 310 360 x 270
1366 x 768 392 x 294 340 x 254
1280 x 1024 368 x 276 320 x 240
