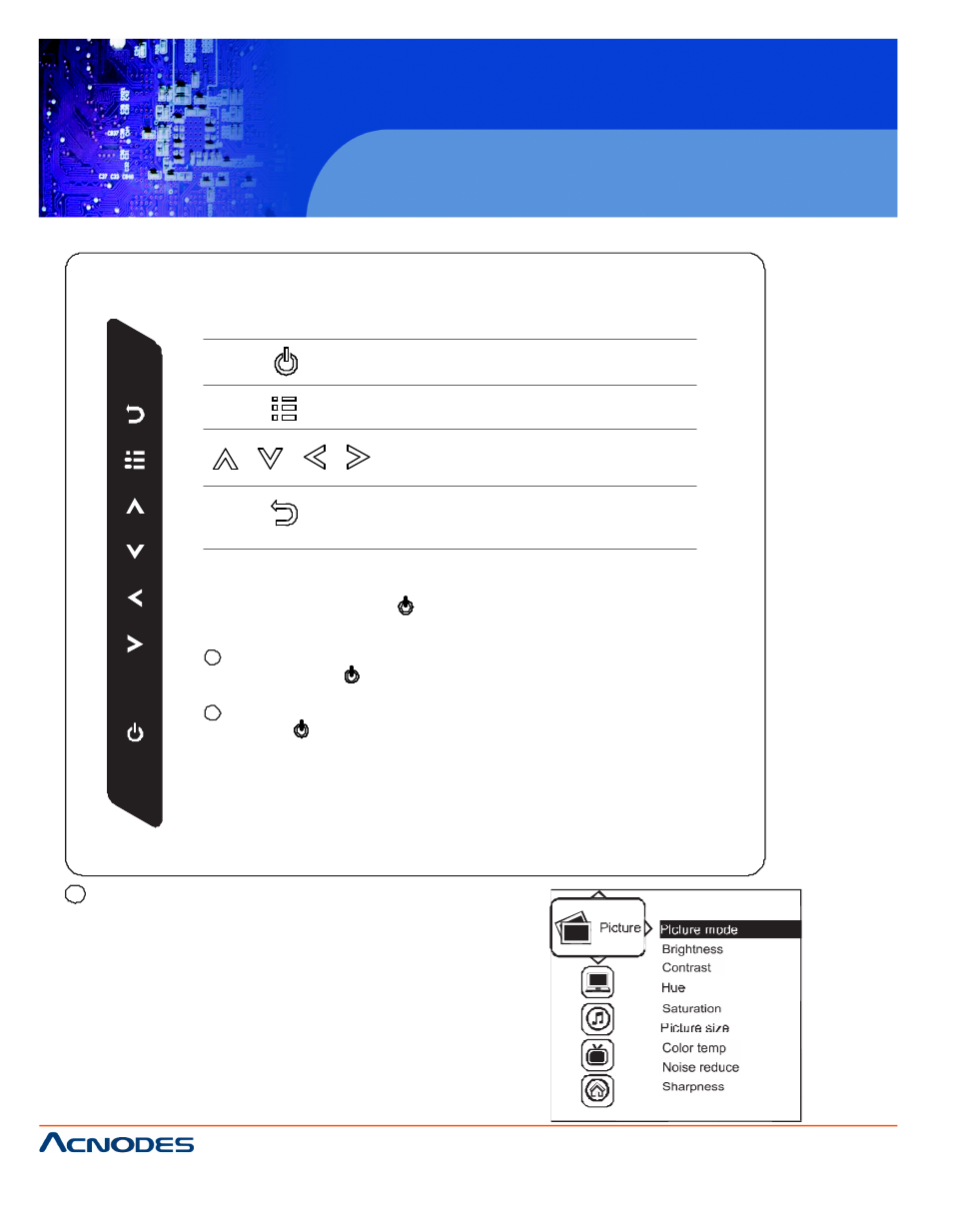

< 2.2 > On-screen Display Operation ( OSD )
Membrane Switch
Function
Turn the monitor on or off
Display the OSD menu
Act as an Enter key to select screen setting o
Scroll through menu options and adjust
the displayed control
Exit the OSD screen
Go back to the previous on-screen sub-menu
main menu
Remark : All LED touch buttons in
WHITE light.
The LED of
Power
touch button will flash continuously when
no signal input.
1
All the LED touch buttons will automatically turn off after 10 minutes of idle
( except the
Power
).
2
Light up all membrane buttons, please press any button for 1 - 2 seconds (
the
Power
).
1
Picture mode :
Standard / Vivid / Soft / User mode to choose
Brightness :
Adjust background black level of the screen image
Contrast :
Adjust the difference between the image background
(black level) and the foreground (white level)
Hue:
Adjust the screen hue value
Saturation :
Adjust the saturation of the image color
Picture size :
Adjust the image size
Color temp :
Standard / Cool / Warm / User to choose
Noise reduce :
Reduce the noise of the image
Sharpness :
Adjust the image from weak to sharp
