RMW 7190
19” 1440x900 Full HD Widescreen LCD
7U Rackmount Display Panel
< Part 3 >

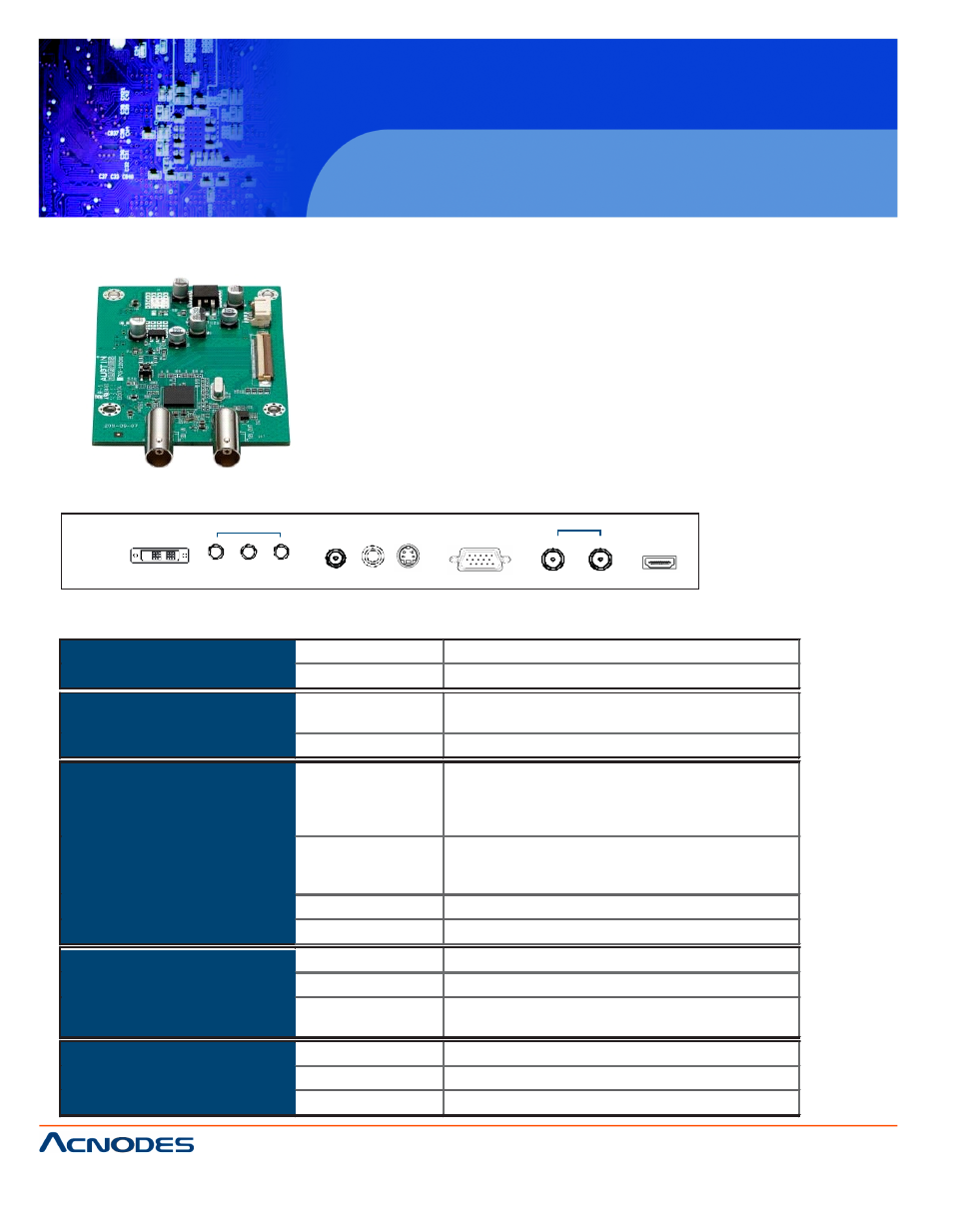

< 3.1 > Options : 3G / HD / SD-SDI input
Ac nodes’ SDI input is an ideal s olution for the broadcast-
grade video and high resolution CCTV market.
Designed for use with Full HD 1080p and ultra high resolution
1920 x 1200 LCD displays, Acnodes provides a SDI input
module without using additional space or power and it comes
standard with a 2-year warranty.
DVI-D
Audio
out - in - in
Video PC
Powe r BNC S-Video VGA
SDI
o ut - in
HDMI
***
For SDI option, the AD board will be upgraded to AV3.0, and this com es standard with HDMI, DVI-D,
VG A, S-Video, BNC and audio inputs.
INPUT 3G-SDI IN BNC x 1 / 0.8Vp-p ( 75 ohm )
3G-SDI OUT BNC x 1 / Active through, equalized & relocked
Standard Compliance Video SMPTE 425M / 274M / 296M / 125M
ITU-R BT.656
Audio SMPTE 299M / 272M-C
Compatible Video Format 3G-SDI 1080p @60 / 50Hz, 4:2:2
1080p @30 / 25 / 24Hz, 4:4:4
1080i @60 / 50Hz, 4:4:4
720p @60 / 50Hz, 4:4:4
HD-SDI 1080p @30 / 25 / 24Hz, 4:2:2
1080i @60 / 50Hz, 4:2:2
720p @60 / 50Hz, 4:2:2
SD-SDI 480i @60Hz, 4:2:2
ITU-R BT.656 576i @50Hz, 4:2:2
Compatible Audio Format 3G-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
HD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
SD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized /
Asynchronized Video
Max. Transmission Distance
75 ohm coaxial cable
3G-SDI 150m at 2.97Gb/s
HD-SDI 250m at 1.485Gb/s
SD-SDI 480m at 270Mb/s
