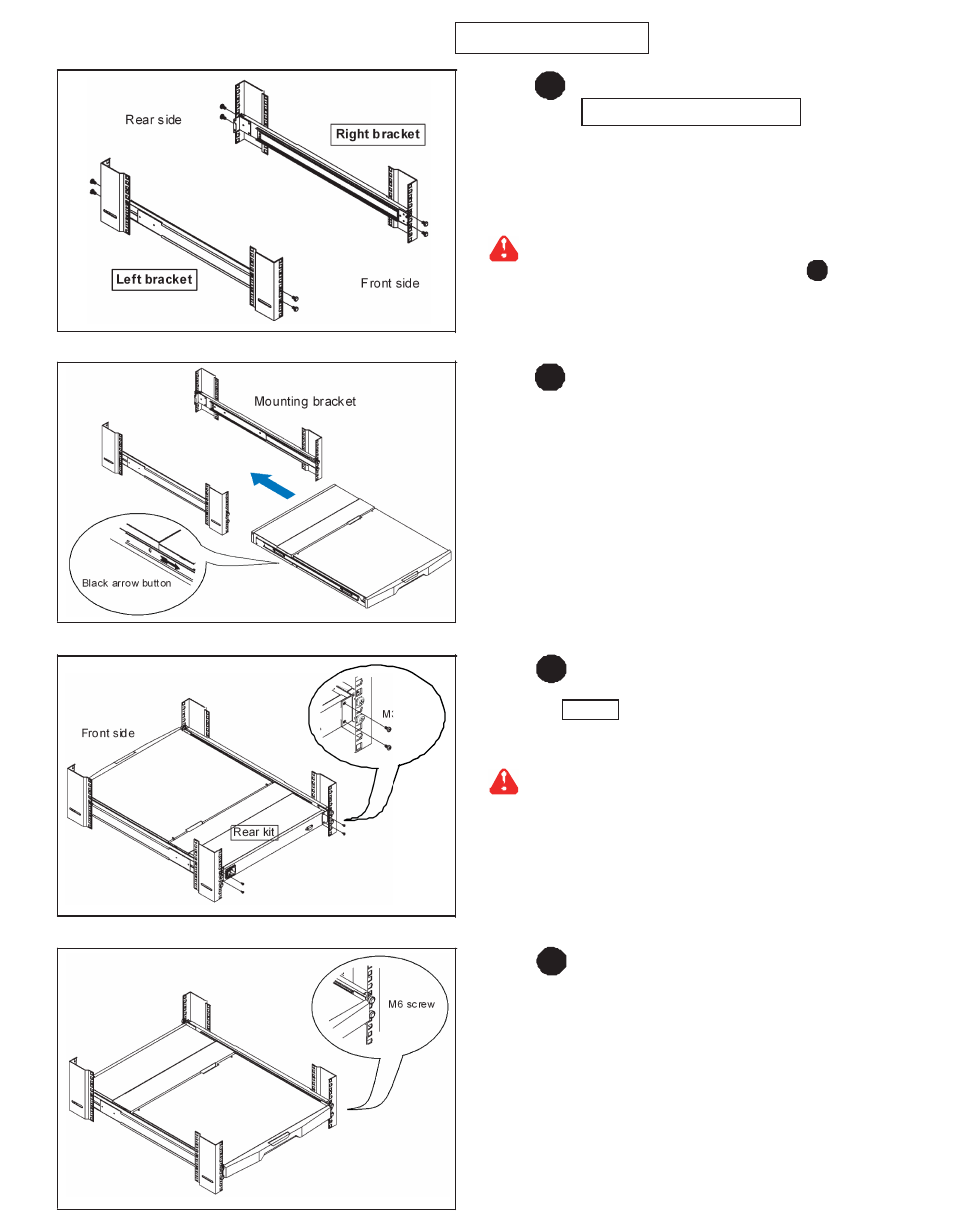

< 1.3 > Installation - How to install 1U 20" LCD Tray
Rear side
Left bracket
Right bracket
Front side
Step
1
¦
Attach the left and right mounting bracket to
rack 19" mounting rails.
¦
Adjust the mounting bracket to fit your rack.
¦
M6 screw x 8 pcs included.
Leave all M6 screws slightly loose, until
you complete the installation in step 3
Mounting bracket
Step 2
¦
Pick up the LCD tray.
¦
Insert the LCD tray into the mounting bracket.
¦
Pull and hold the left & right black arrow buttons
on the rails.
¦
Return the LCD tray to park position.
Black arrow button
Front side
M3.2 screw
Step 3
¦
Fix the rear kit to the mounting bracket with M3.2
screw x 4 pcs included.
This step is necessary. Failure to complete this
will cause damage.
Rear kit
M6 screw
Step
4
Complete the installation
¦
Tighten all 8 pcs of M6 screw to complete the
installation.
