< Part 1 >

< 1.1 > Package Content






KDH 8170/8190 uni t X 1

- 6ft C ombo KVM cable X 1

- Power cord X 1

- M6 s cre w, cage nut & cup w asher X 8





The above package content is only for the single console models.

It varies with options such as KVM, HDMI, DVI-D, AV, audio & DC power.









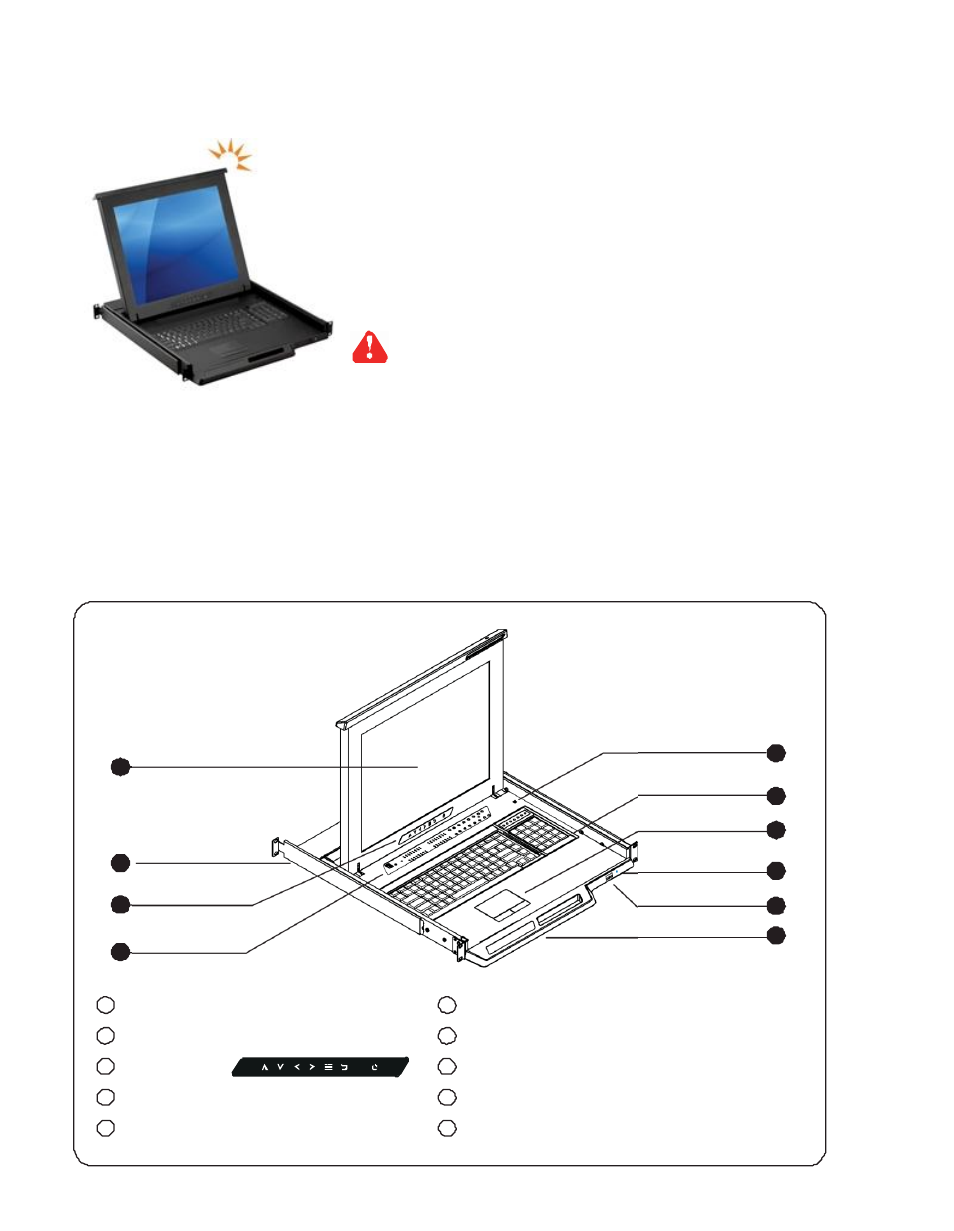

< 1.2 > Structure Diagram










5

1

6

7

2

8

3

9

4

1

LCD interchangeable module kit

2

Installation Slides

3

LCD membrane

4

Membrane switch (KVM option)

5

Micro switch for screen auto power off

10



6

Keyboard interchang eable module kit

7

Mouse interchangeable module kit

8

Blue Power L ED

9

Front USB port for device access ( USB Hub KVM only )

10

Molded front handle
