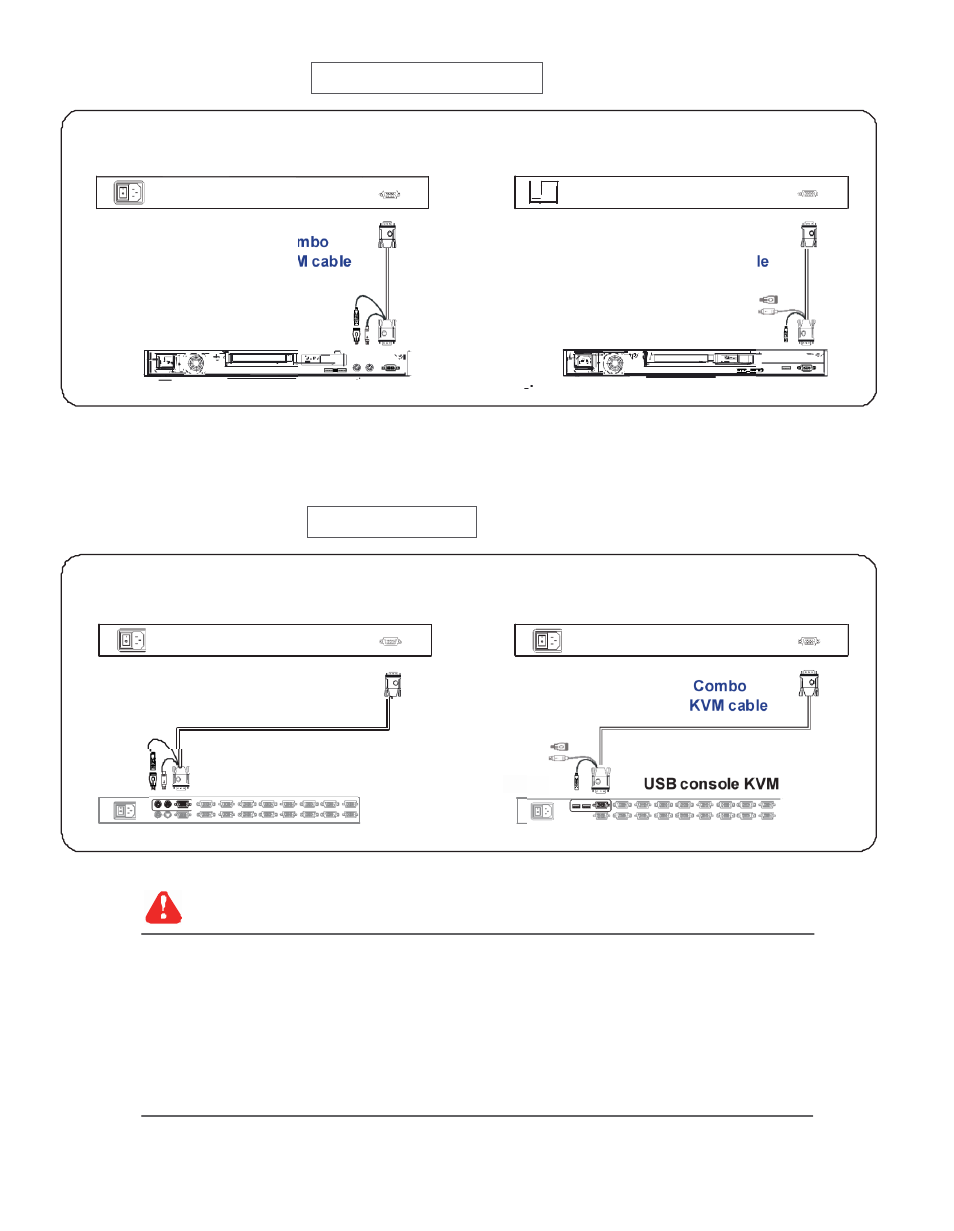

< 1.4 > Connection to PS/2 or USB Server
le
mbo
M cable
Combo
KVM cable
USB console KVM
LCD console drawer LCD console drawer
KVM KVM
Co Combo
KV KVM cab
PS/2 server USB server
< 1.4 > Connection to external KVM
LCD console drawer LCD console drawer
KVM KVM
Combo
KVM cable
PS/2 console KVM
Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such
as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while
servers and KVM are powered on may caus e irreversible damage to the servers, KVM and LCD
console drawer. Before attem pting to connect anything to the LCD console drawer, we suggest
turning off the power to all devices. Apply power to connected devices again only after the LCD
console drawer is rec eiving power. The company is not responsible for damage caused in this way.
