RP2117
17” 1920x1200 Full HD Widescreen LCD
1U Rackmount Display Panel
< Part 3 >

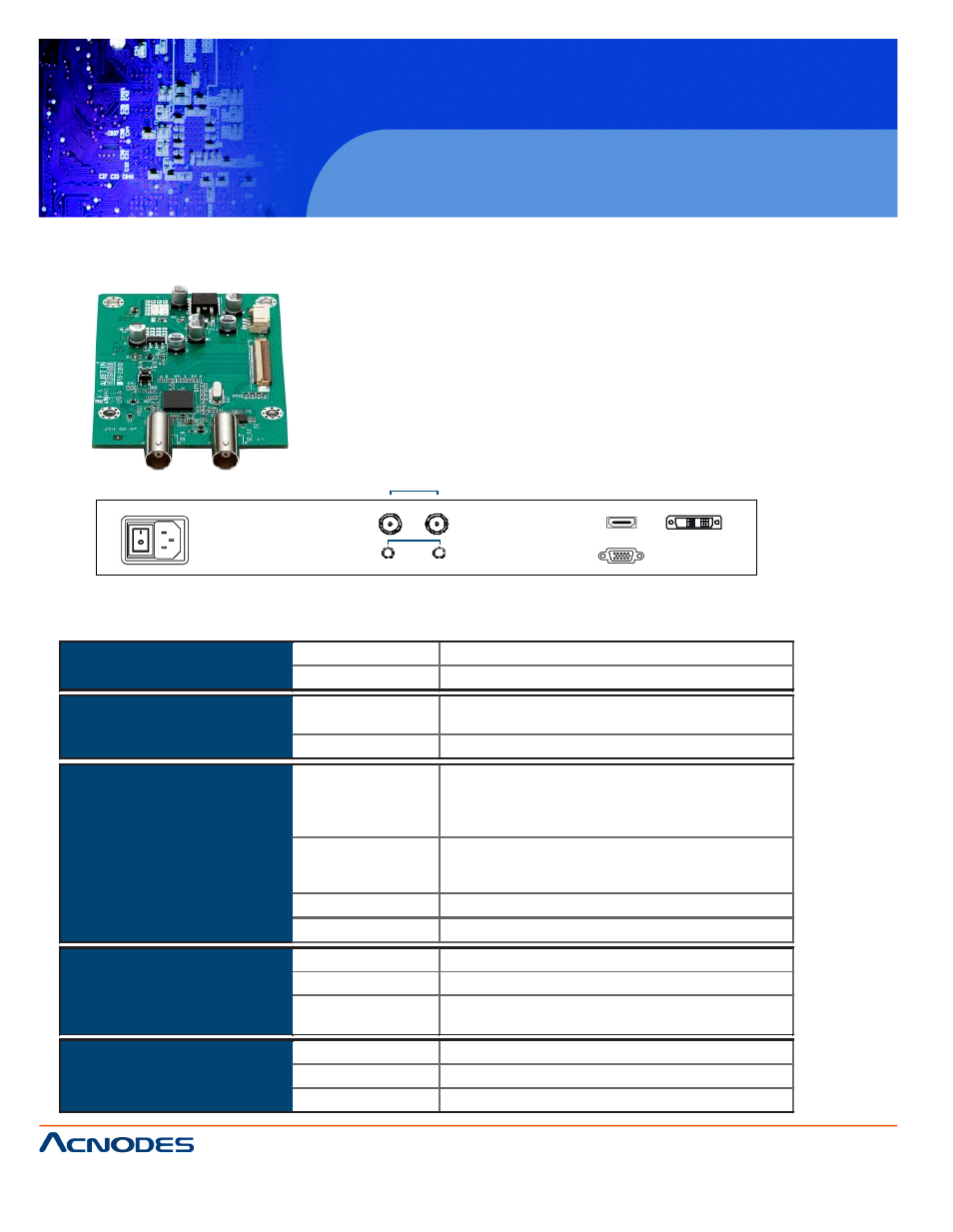

< 3.1 > Options : 3G / HD / SD-SDI input
Acnodes ’ SDI input is an ideal solution for the broadcast-
grade video and high resolution CCTV market.
Designed for use with F ull HD 1080p and ultra high resolution
1920 x 1200 LCD displays, Acnodes provides a SDI input
module without using additional space or power and it com es
standard with a 2- year warranty.
Power
A udio
SDI
in - out HDMI
VGA
DVI-D
***
PC in out
For SDI o ptio n, casing depth w ill be extend ed fro m 480mm ( 18.9" ) to 530m m ( 20.9" )
INPUT 3G-SDI IN BNC x 1 / 0.8Vp-p ( 75 ohm )
3G-SDI O UT BNC x 1 / Active through, equalized & r eloc ked
Standard Com plian ce Video SMPT E 425M / 274M / 296M / 125M
ITU-R BT.656
Audio SMPT E 299M / 272M-C
Com patible Video F ormat 3G-SDI 1080p @60 / 50Hz, 4:2:2
1080p @30 / 25 / 24Hz, 4:4:4
1080i @60 / 50Hz, 4:4:4
720p @60 / 50Hz, 4:4:4
HD-SDI 1080p @30 / 25 / 24Hz, 4:2:2
1080i @60 / 50Hz, 4:2:2
720p @60 / 50Hz, 4:2:2
SD-SDI 480i @60Hz, 4:2:2
IT U-R BT.656 576i @50Hz, 4:2:2
Com patible Audio F ormat 3G-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
HD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
SD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized /
As ynchronized Video
Max. Transm ission Distance
75 ohm coaxial cab le
3G-SDI 150m at 2.97G b/s
HD-SDI 250m at 1.485Gb/s
SD-SDI 480m at 270Mb/s
