PM 6200
20” Industrial Open Frame Monitor

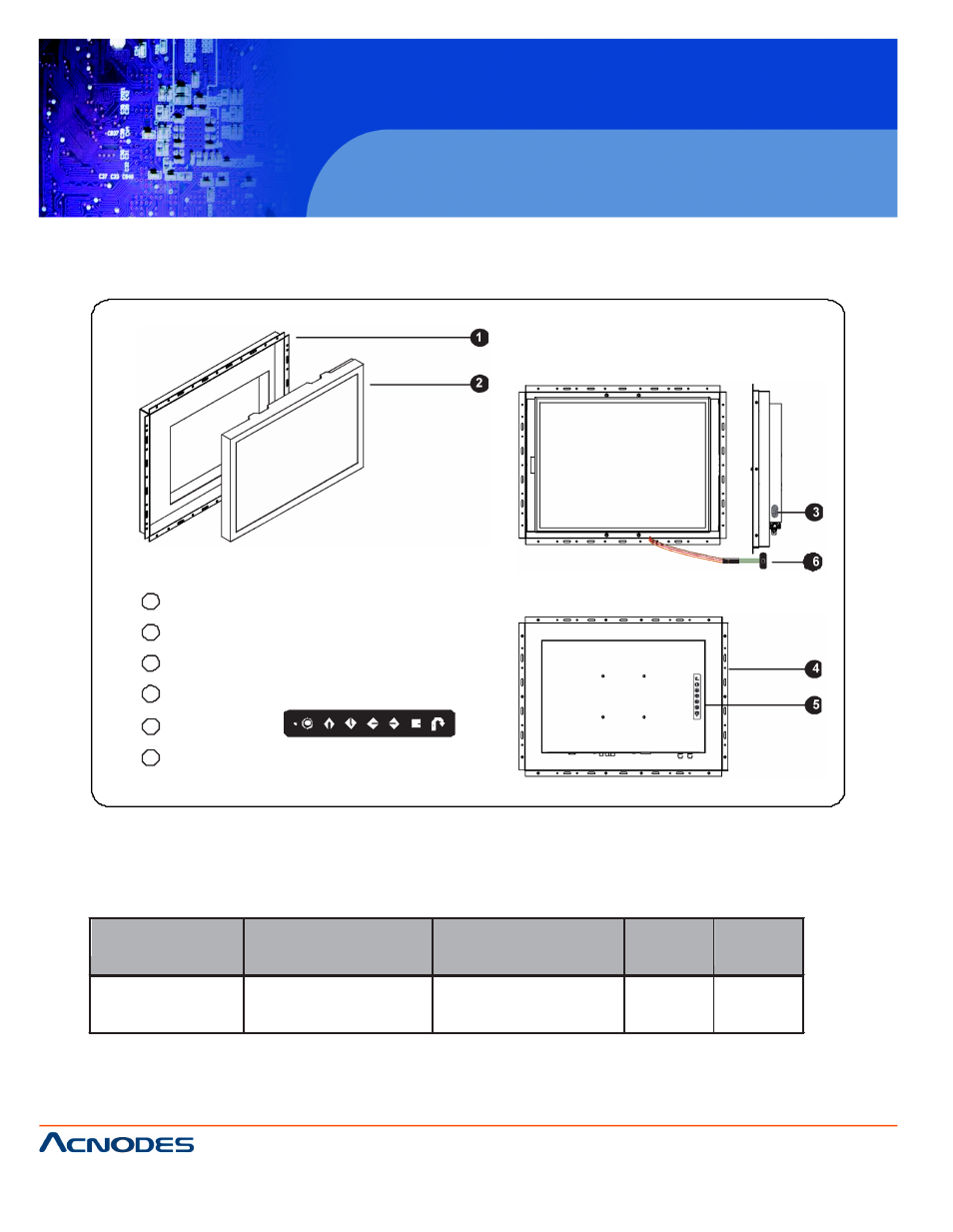

< 1.2 > Structure Diagram -PM6200 20" LCD Display
1
Front view
2
OP-20
3
6
1 Rear case
2 LCD panel
3 Audio speaker ( for HDMI, Audio or TV option )
4 Universal open frame mounting
5 LCD membrane
6 Extended remote sensor membrane cable
( 66cm from AD board to sensor end )
Rear view
4
5
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
PM6200
510 x 66 x 389 mm
20.1 x 2.6 x 15.3 inch
651 x 124 x 597 mm
25.6 x 4.9 x 23.5 inch
6 kg
13.2 lbs
8 kg
17.6 lbs
