PM 6200

20” Industrial Open Frame Monitor

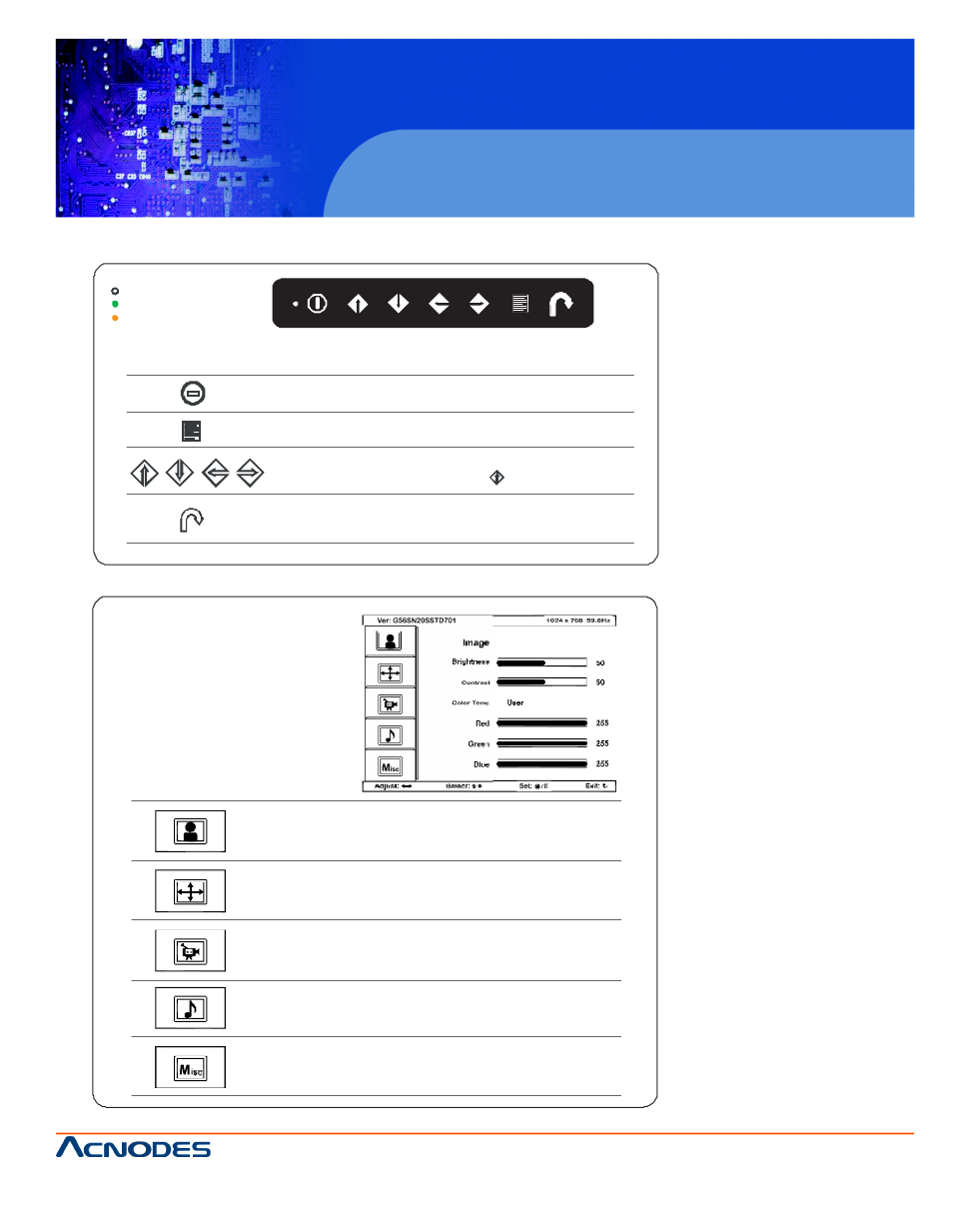

< 2.2 > On-screen Display Operation ( OSD )

Power light

Green = On

Orange = Power saving

Membrane Switch

Function

Power on / off LCD

Display the OSD menu

Scrolls through menu options and adjusts the displayed control

(To auto adjustment by pressing the button

for 5 seconds)

Exit the OSD screen

Toggle analog, digital & video connection (DVI-D and video options only)

OSD Configuration Page

Image:

for the brightness, contrast, color temp, red, green, and blue

Geometry:

for the auto adjust, H position, V position, phase and clock

Video:

for the colour, tint, sharpness, noise reduction, DCDi and TV Setup

Audio:

for volume, bass, treble, balance, AVL and mute

Misc:

for the language, OSD position, graphic mode, ratio, reset and timer
