< 3.2 > Options : MCS
( Multi-display Control )
More control is always good. Especially when it is necessary and
easy. Acnodes provides MCS solution to control the
OSD of
various LCD display up to 64 units.

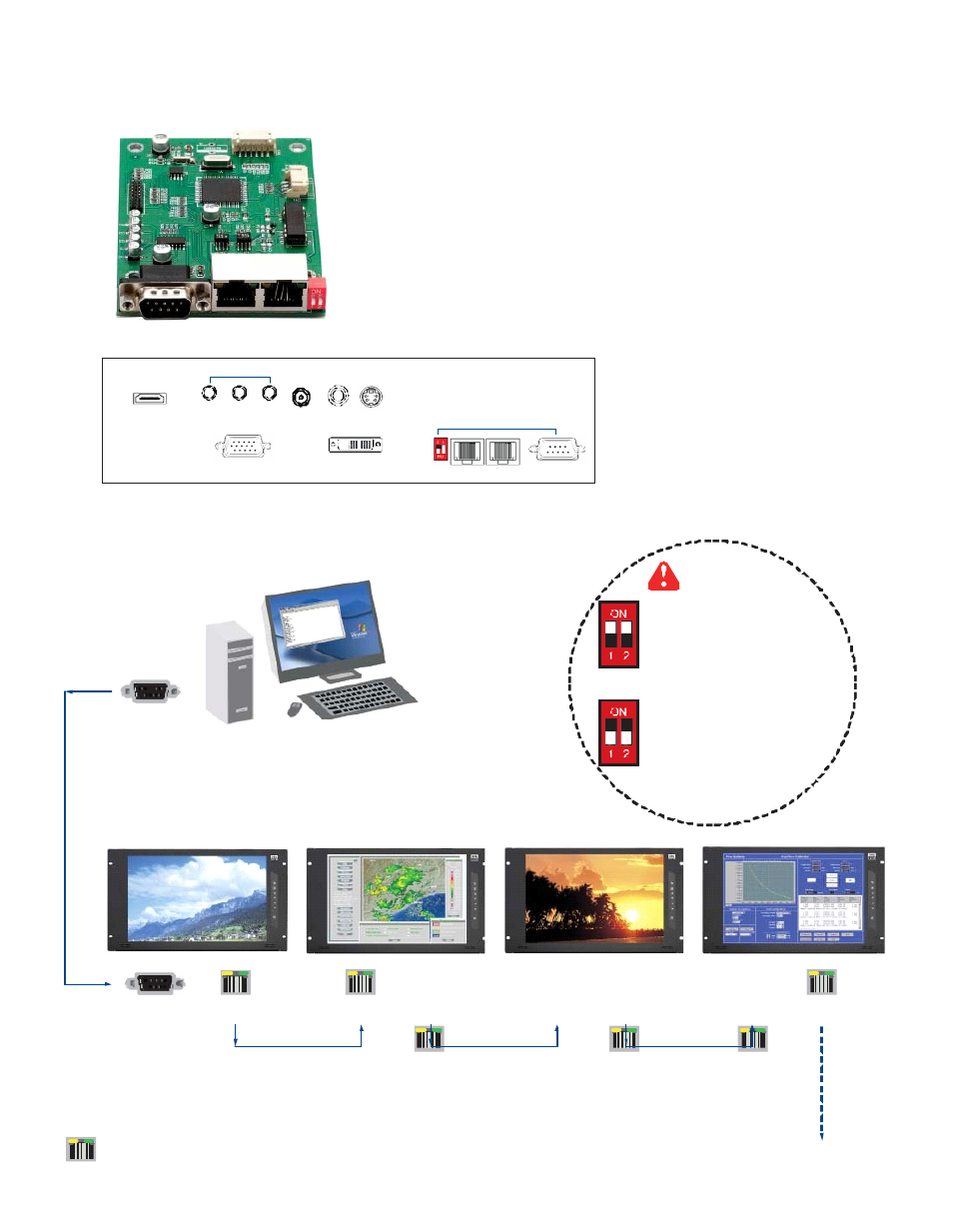

The RS-232C is used for the communication between the PC and the
first display via a 15 feet serial cable while the CAN bus is used for the
various LCD displays cascade together via CAT 5/6 cable, and daisy
chain up to 1,000 meters.
Designed for use with various LCD displays, Acnodes provides a
MCS input module without using additional space or power and it
comes standard with a 2-year warranty.
HDMI Audio Power BNC S-Video
out - in - in
Video PC
MCS
VGA DVI-D set out in Link
***
For MCS option, casing depth will be changed.
RS-232C
Set switch
For the 1st and last display,
push the set switch upward
15 feet serial cable
( over 15 feet, extender required )
For other daisy chain displays,
push the set switch downward
LINK OUT IN OUT IN OUT IN OUT
Cat5 / 6 cable
max. 300 meters
Cat5 / 6 cable
max. 300 meters
Cat5 / 6 cable
max. 300 meters
RJ-45 jack
Daisy chain up to 1,000
meters and 64 displays
up to 64 displays
