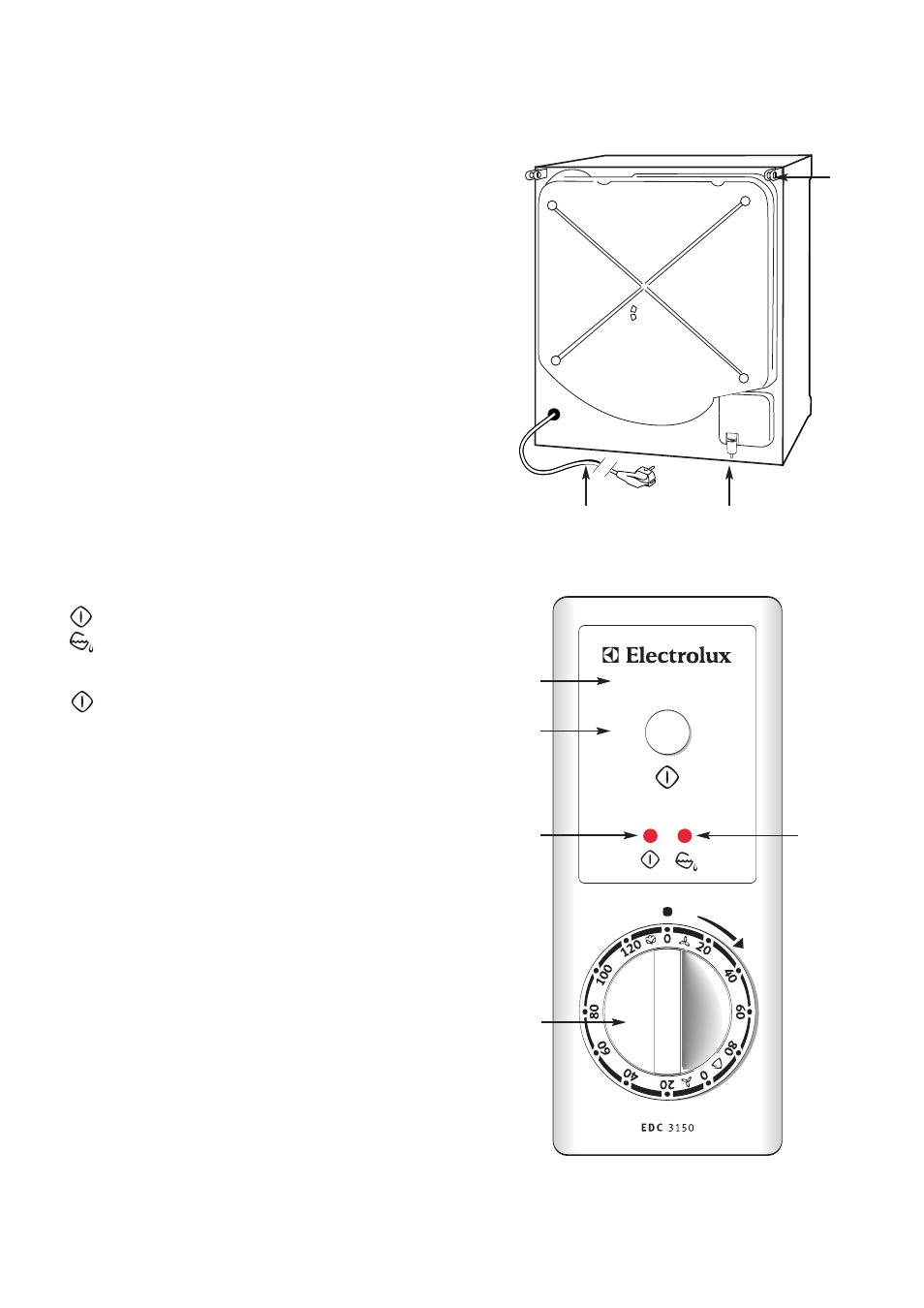

Description of the appliance
10. Rating plate
11. Drum
12. Electrical lead
13. Connector for drain hose
There is a drain hose as an extra accessory for you
who want and can connect the tumble dryer directly
to a drain outlet. Fix the hose to the connector (13)
after releasing the hose clip and removing the plug.
When a drain hose is fitted, the water tank will not
be filled with water.
14. Holder for wall mounting console
• Lights
A. Lit during drying stage.
B. Lit when water tank is full.
• Start button
C. After selecting the program and drying time,
press this button to start the dryer.
• Timer knob
D. This knob is used to set both the drying time
and the drying temperature required.
Separate time scales and temperatures for
Cotton (max 120 min) and
Synthetics (max 80 min).
14
12 13
A B
D
C
