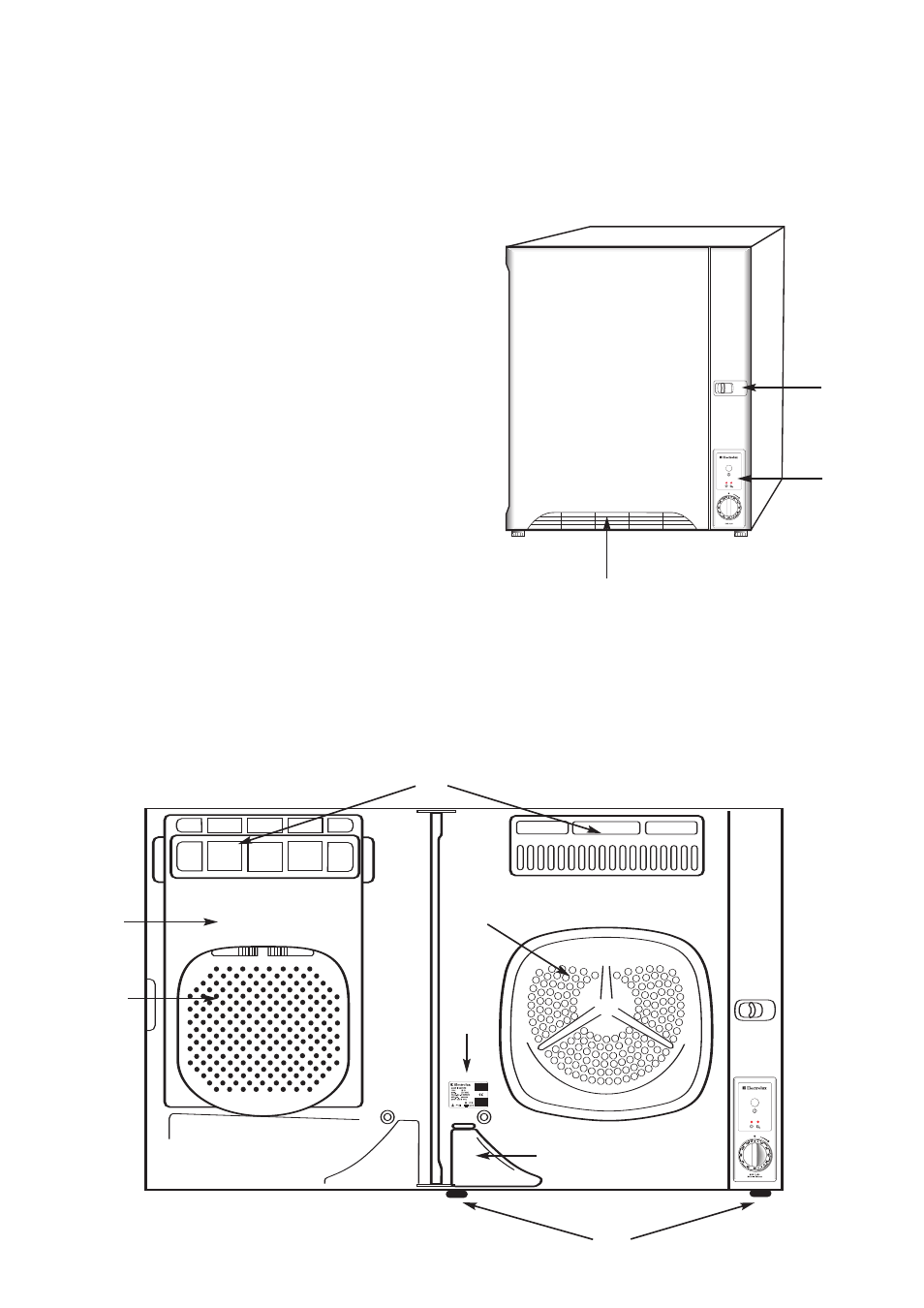

Description of the appliance
1. Door Latch (push the knob to the right to open)
Avoid opening the door while a program is in
progress.
2. Space for programme chart
(Self-adhesive label)
3. Control panel
4. Warm air discharge
5. Air ducts - These should not be obstructed.
6. Condenser
This is built into the door and needs to be cleaned
at regular intervals.
7. Filters
Should be cleaned before or after each load. The
fluff filter is behind the coarse filter and can be
removed for cleaning.
8. Adjustable feet
If the dryer is not being wall mounted the feet need
to be adjusted so that the dryer is level.
9. Water tank for condensed water
This fills up with the water condensed by the dryer
and should be emptied before or after each load.
When the tank is full, warning light (B) will come on
and the dryer will stop automatically. It cannot be
restarted until the tank has been emptied.
