1) The Stand Alone Mode enables;

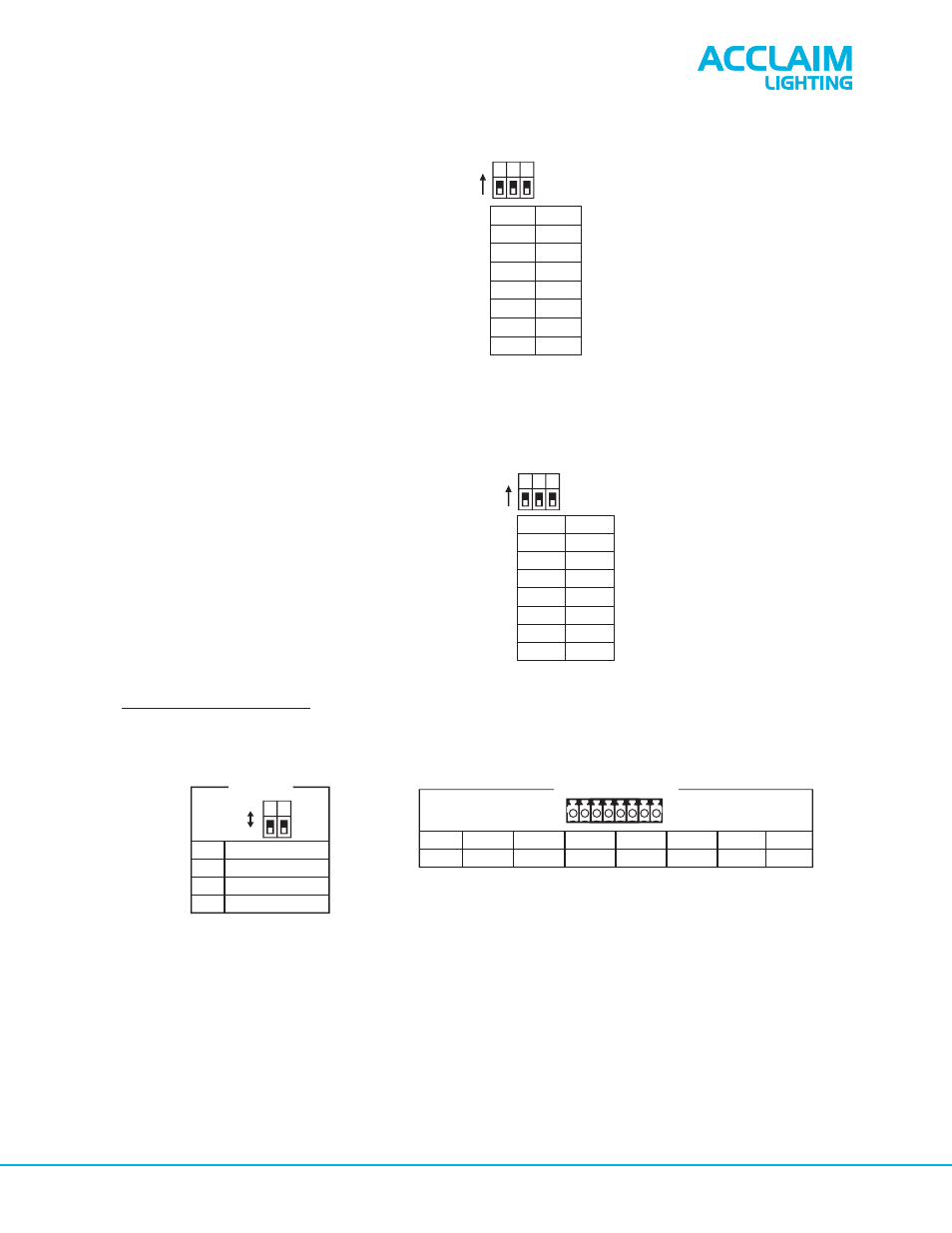

2) Thus, flip the dip-switch 4,5 & 6(12-way Function Dip Switch)to adjust a desired level for chasing speed.
4 5 6 ON
SPEED
000
100
010
110
001
101
011
111
0.1S
0.2S
0.5S
1S
5S
10S
20S
30S
"0" = "OFF" position
"1" = "ON" position.
(Dip Switches 10 = off)
1.2.2 Adjusting chase speed
1) The Stand Alone mode enables;
2) Thus, flip the dip-switch 7,8 & 9 (12-way Function Dip Switch) to select the desired program.
1.2.3 Selecting Built-in programs
000
100
010 1
2
3
7 8 9 ON
PROGRAM
(Dip Switches 10 = off)
110
001
101
011
111
4
5
6
7
AUTO
"0" = "OFF" position
"1" = "ON" position.
AUTO=a sequence of 7 programs
1) SINGLE Output Mode, one output with R.G.B.A which was controlled by DMX channel 1, the output of
R.G.B.A is identical.
In this function, user can flip the dip-switch 11 & 12(12-way function Dip Switch) to select the desired Output
Loading Mode.
1.3 Loading Mode Setting
1 2 3 4 5 6
OUTPUT TERMINALS
OUTPUT
11 12
1 =ON
0=OFF
00 SINGLE
10 COLOR
01 RGB
11 RGBA
2) COLOR Mode , one output which color of R.G.B. Was controlled by one channel 1.No output for A.
3) RGB Mode , one output which RGB was controlled by 3 DMX channels separately. No output for A
4) RGBA Mode , one output which R.G.B.A was controlled by 4 DMX channels separately.
7 8
1 2 3 4 5 6 7 8
Red+ Red- Green+ Blue+ Blue- A/W+ A/W- Green-
