Driving to your destination, 2009 pilot, Map screen legend – HONDA 2009 Pilot Navigation User Manual
Page 50
50
Navigation System

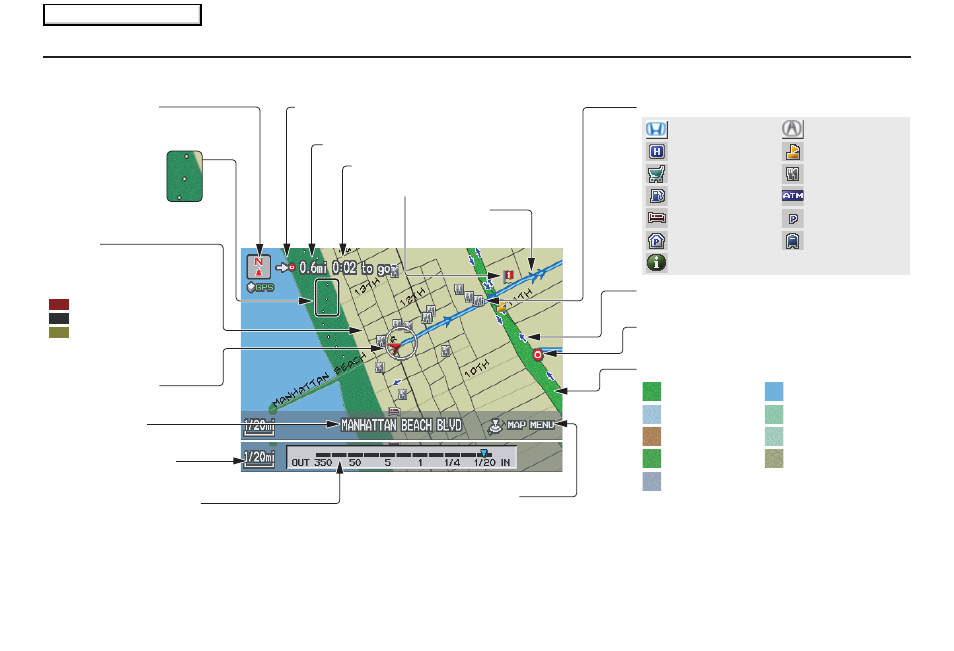

Map Screen Legend
Acura Dealer
School
Restaurant
ATM
Parking Lot
Post Office
Honda Dealer
Hospital
Grocery Store
Gas Station
Hotel/Lodging
Parking Garage
Freeway Exit Information
Landmark Icon - Generic (see page
58
)
Destination Icon (see page
58
)
Map Features
NOTE:
If you move the Interface Dial over an area (map
features shown above), the name is displayed on
the screen.
: Park
: Hospital
: Shopping Mall
: Golf Course
: Water Area
: Cemetery
: University
: Indian Reservation
: Airport/Stadium/Business
Map Scale Adjustment
(Mile or km per half-inch appears
only when you zoom in or out by
rotating the Interface Dial knob.)
(see page
56
)
NOTE:
See
Map Legend on the Information screen for further explanation (see page
74
).
Current Map Scale
(see page
56
)
Current Street
(see page
63
)
Vehicle Position
(see page
63
)
“Breadcrumbs”
(see Off-road
Tracking on
page
62
)
Streets
(see Map Overview on
page
6
, or Unverified Area
Routing on page
86
)
Direction of Destination (when en route)
(see page
52
)
Map Orientation
(see page
57
)
Distance to Destination (see page
52
)
Time to Destination (see page
52
)
Waypoint (see page
66
)
Blue Line
Calculated route
(see page
49
)
Map Menu (see page
52
)
(Push in on the Interface Dial to view.)
One-Way Traffic Icon (1/20 mile scale only)
(see page
58
)
Interstates or Freeways
Verified Streets
Unverified Streets
