5 GSD 22 Sonar Module
I
NSTALLATION
I
NSTRUCTIONS

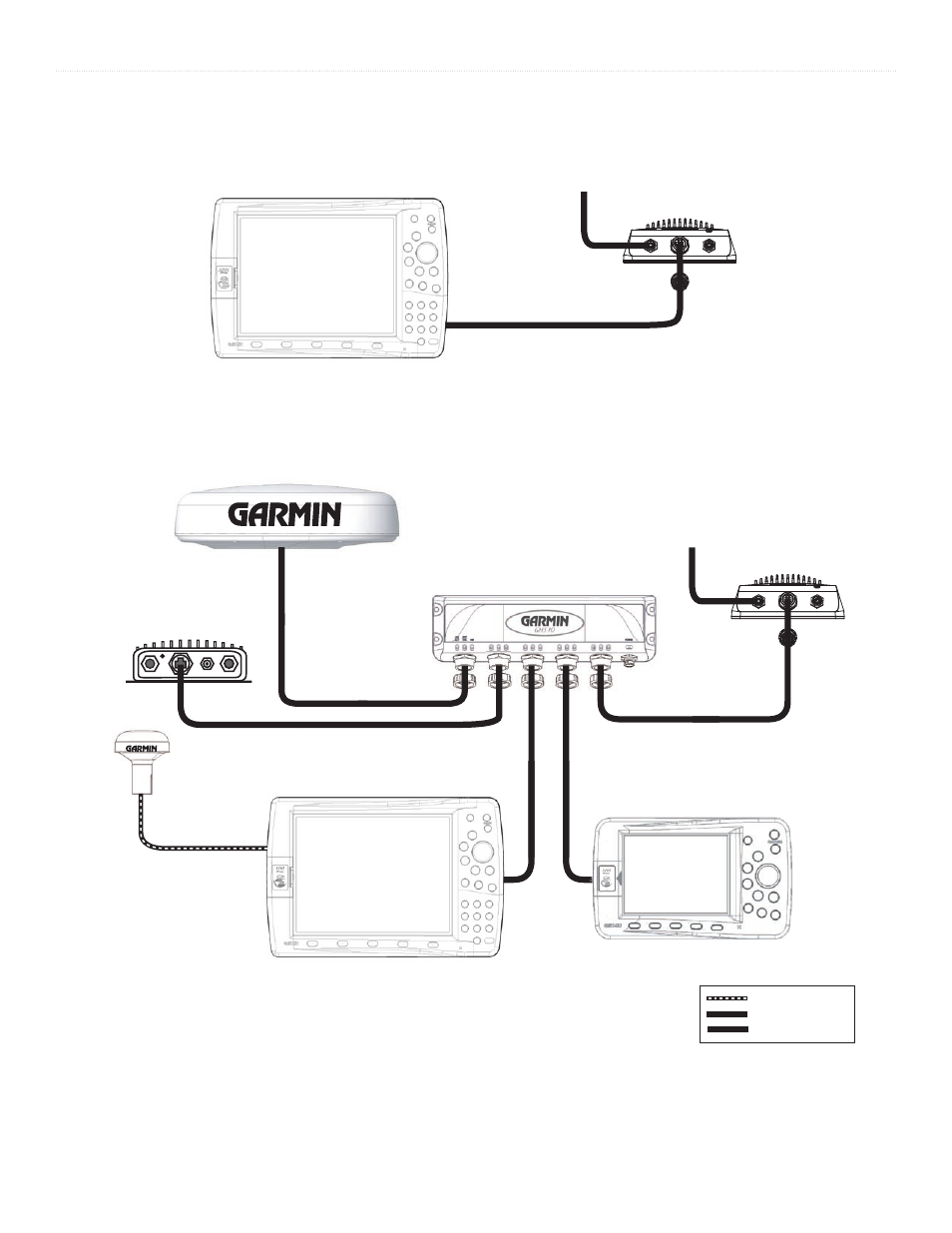

The following diagrams shows the Garmin Marine Network with a GSD 22 Sounder Module connected.
GARMIN GDL 30/30A
MARINE WEATHER/AUDIO
SATELLITE RECEIVER
GPS 17
GARMIN GMS 10
MARINE NETWORK PORT EXPANDER
GSD 22
SOUNDER
MODULE
GARMIN
MARINE RADAR
TO TRANSDUCER
xx
xx
xx
xx
xx
xxxxxxxxxxx
Serial cable
Ethernet cable
Transducer cable
xxxxxxxxx
GSD 22
SOUNDER
MODULE
TO TRANSDUCER
xx
xx
xx
xx
xx
xxxxxxxxxxx
The GARMIN Marine Network with a Single MFD and a GSD 22
The GARMIN Marine Network with Multiple Units and a GSD 22
