300Mbps Wireless N Router TL-WR940N/TL-WR941ND
-47-
¾ MAC Address - The MAC address of the DHCP client
¾
Assigned IP - The IP address that the router has allocated to the DHCP client.
¾
Lease Time - The time of the DHCP client leased. After the dynamic IP address has expired,
a new dynamic IP address will be automatically assigned to the user.
You cannot change any of the values on this page. To update this page and to show the current
attached devices, click the Refresh button.
4.7.3 Address Reservation
Choose menu “DHCP→Address Reservation”, you can view and add a reserved addresses for
clients via the next screen (shown in Figure 4-28).When you specify a reserved IP address for a
PC on the LAN, that PC will always receive the same IP address each time when it accesses the
DHCP server. Reserved IP addresses should be assigned to the servers that require permanent
IP settings.

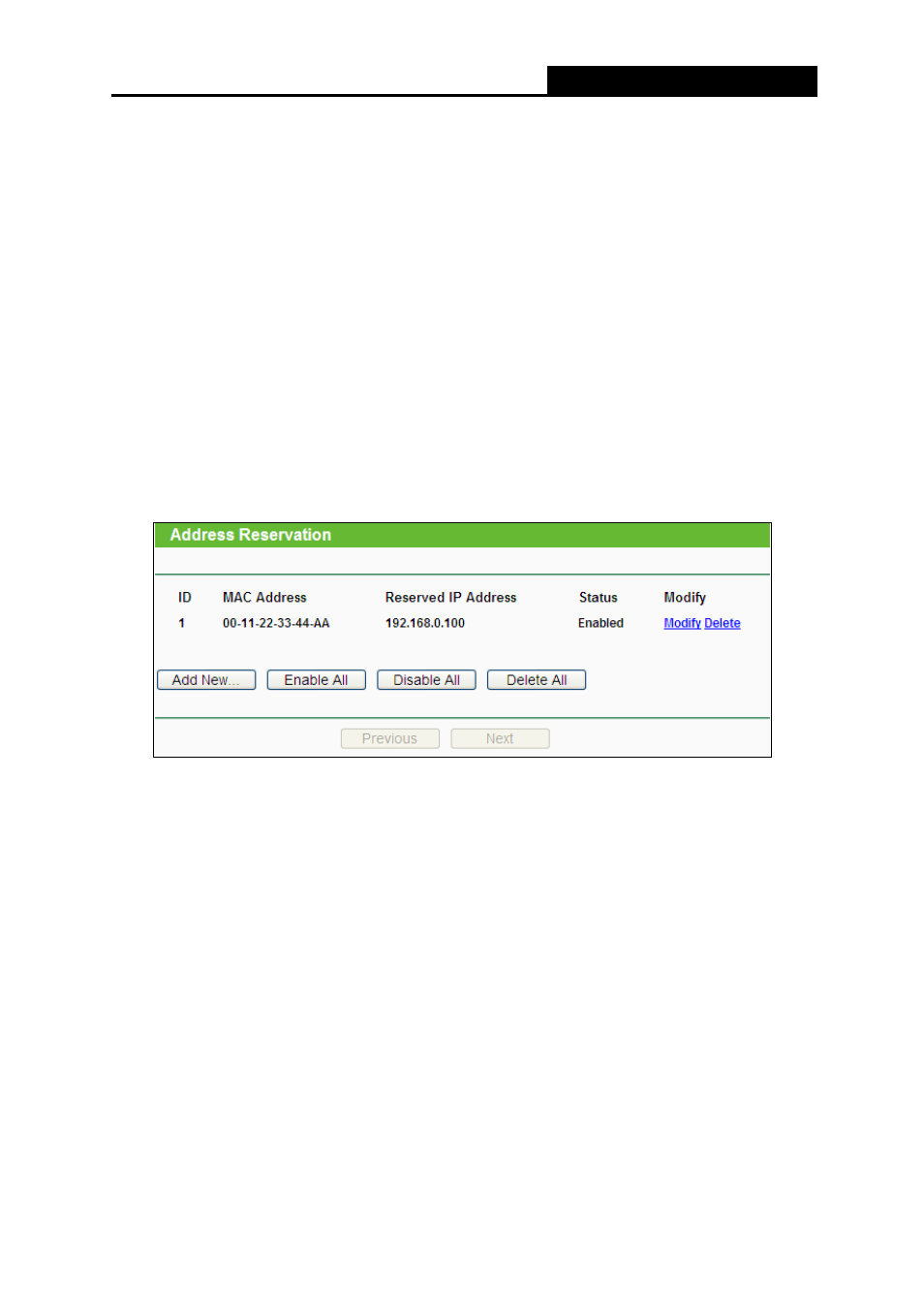

Figure 4-28 Address Reservation
¾
MAC Address - The MAC address of the PC for which you want to reserve IP address.
¾ Assigned IP Address - The IP address of the router reserved.
¾ Status - The status of this entry either Enabled or Disabled.
To Reserve IP addresses:
1. Click the Add New … button. (Pop-up Figure 4-29)
2. Enter the MAC address (in XX-XX-XX-XX-XX-XX format.) and IP address in dotted-decimal
notation of the computer you wish to add.
3. Click the Save button when finished.
