4

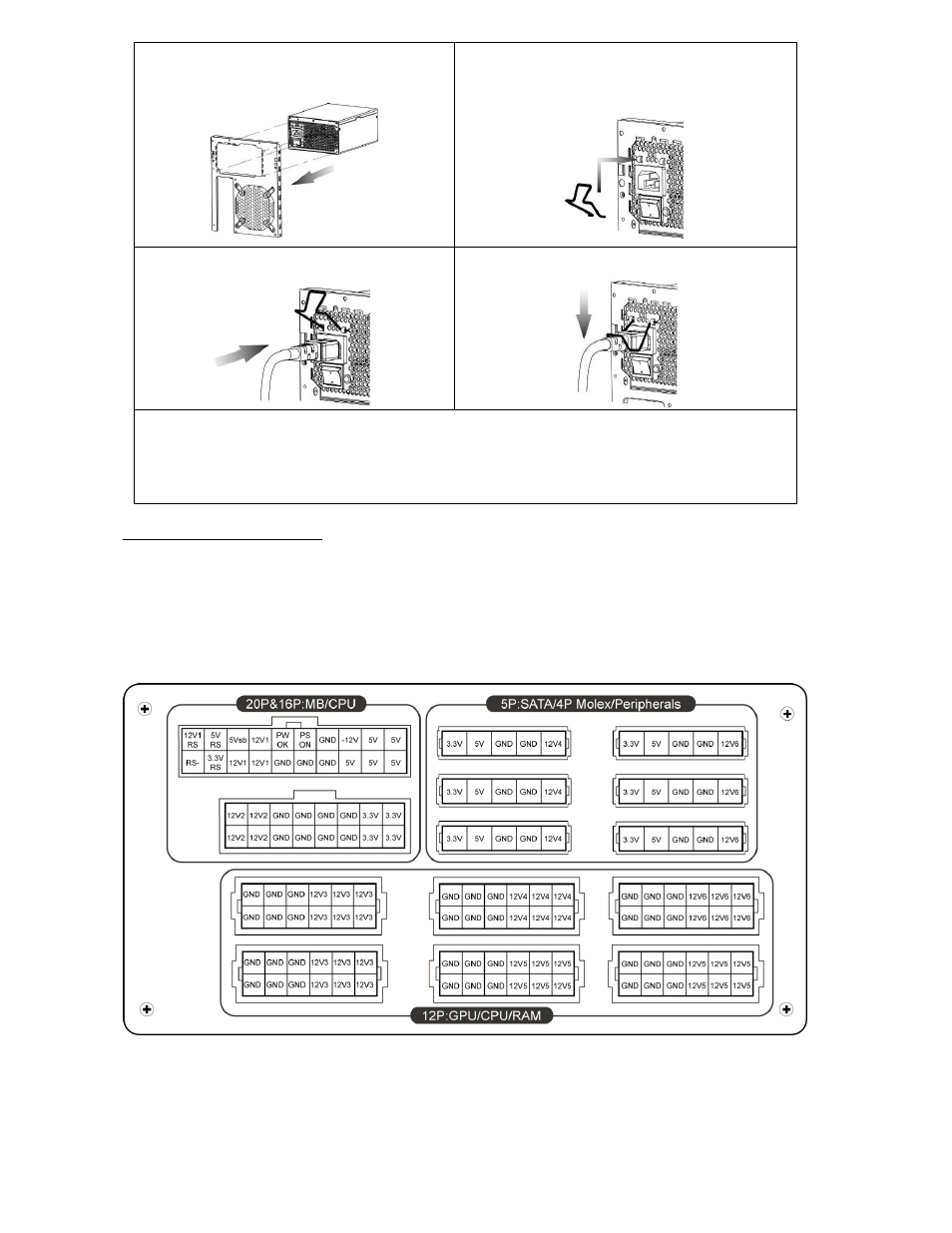

① Set your PSU into the chassis, and please
make sure the I/O switch is on “O”
position.
② Press two sides of the CordGuard lock
together, and set it into CordGuard holder near
the AC inlet.
③ Plug the AC cord into your PSU. ④ Lock CordGuard to latch onto AC cord.
1. CordGuard is for AC cords supplied with ENERMAX CordGuard-compatible PSUs. Other AC
cords may be incompatible.
2. When assembling or maintaining the system, please remove AC cord from AC inlet, or turn I/O
switch into “O” position.
CABLES & CONNECTORS
All connectors are designed to prevent insertion in wrong orientation. If you cannot easily insert a
connector, please check if you are inserting the connector in the right orientation. Do not try by force to
insert it nor modify the connectors. This might damage power supply and system components, and
warranty shall be void.
Following graphic illustrates the modular sockets layout and its DC rail distribution.
*You must connect 16-pin and 20-pin connectors into respective sockets to enable 24-pin MB and 8-pin
CPU connectors.
*This product incorporates multiple 12V rails over current protection. If you let
many peripherals consume the power on only one 12V rail , it may trigger the over current protection and
shut down the system. Please re-direct certain peripheral power cable to other 12V rail to share the
current loading to ensure highest stability and safety.
