Earthquake Sound Cinenova 16 - Manual (Page 9)

Rear Panel

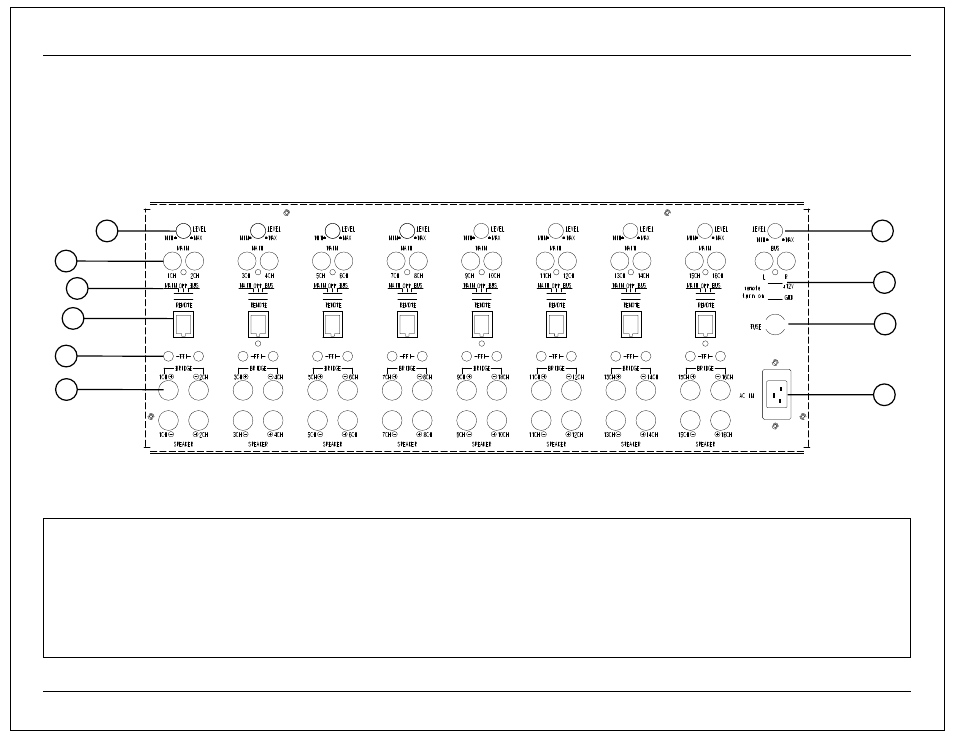

Rear Panel Map CineNova Grande Power Amplifiers
1) 4) Remote level controls for each channel 8)
(optional)
2) 9)
5) Fused Fault Indicators
6) Speaker output binding posts
3) Source selection allows you to select between
the common bus and auxiliary inputs, or the 7) Master level control, when channels are
individual channel input. switched to bus.
Independent level controls for each channel Turn ON the amp via 12V DC trigger
Gold plated RCA individual channel inputs allow Fused AC input
you to connect different audio sources to each
channel.
10) 3-Prong power connection
2
1
3
4
5
7
8
9
9
6
10
