SoundMax SM-CCR3036 User Manual
Page 8
8

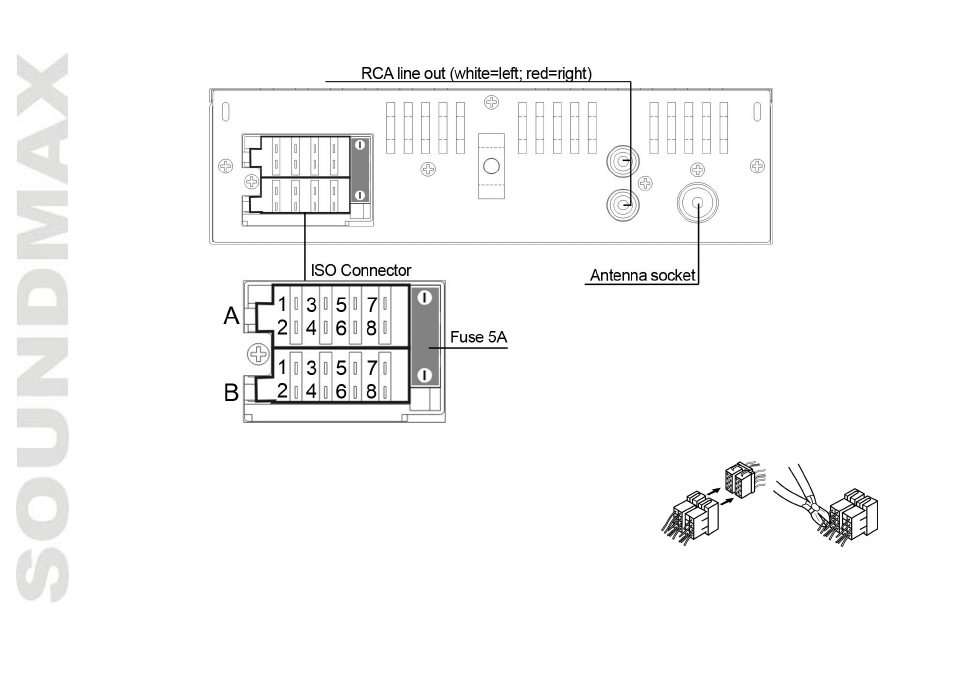

tion diagram
Using the ISO Connector
1. If your car is equipped with the ISO connector, then connect the ISO
connectors as illustrated.
2. For connections without the ISO connectors, check the wiring in the
vehicle carefully before connecting, incorrect connection may cause serious
damage to this unit.
Cut the connector, connect the colored leads of the power cord to the car battery as shown in the color code
table below for speaker and power cable connections.
