© Pro-Ject Audio Systems· Pro-Ject Elemental Phono USB/ Pro 8.6UP / Ortofon OM 5E · Revision 2013.9.5
2

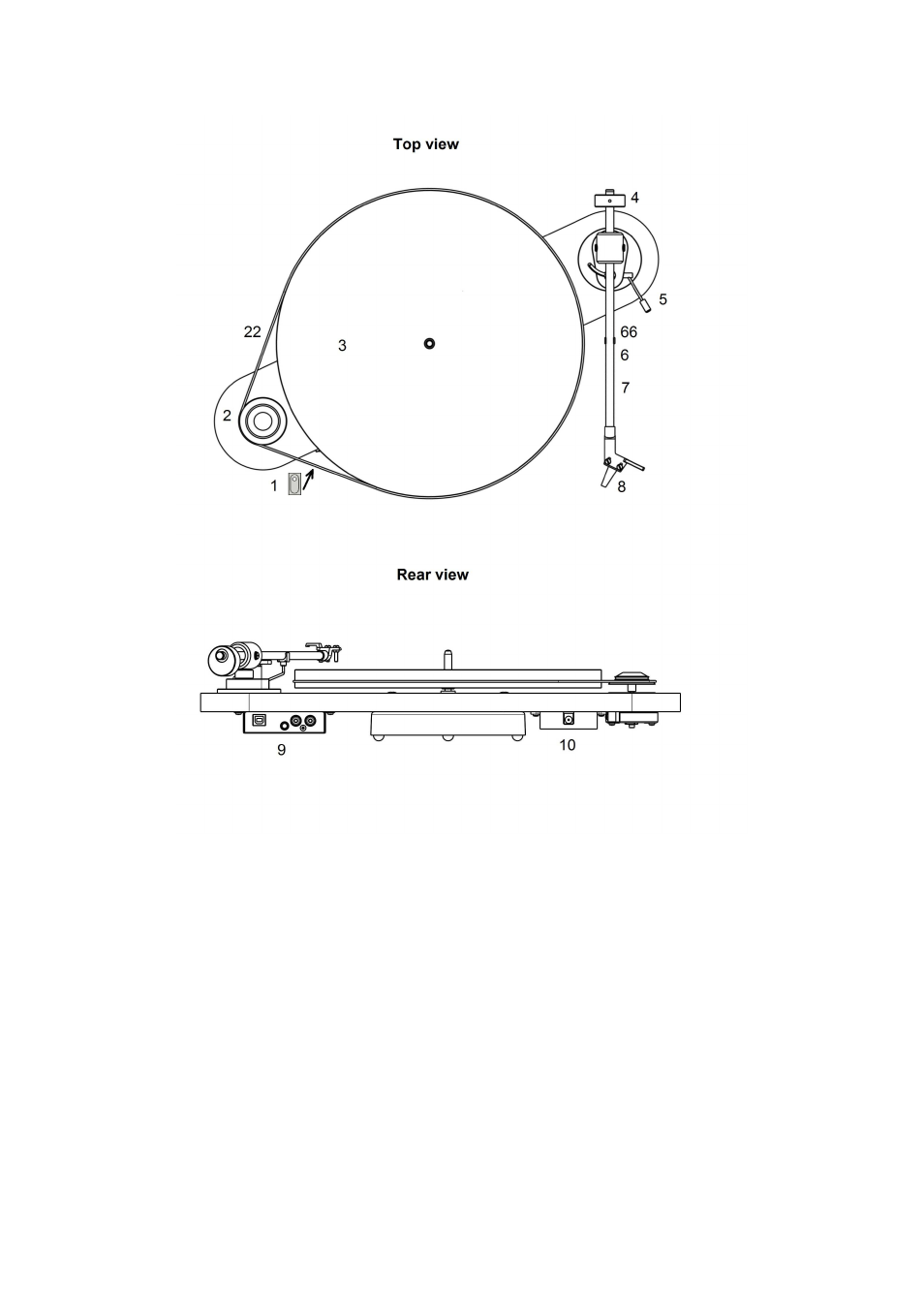

Controls, features and connections
1
Power switch
2/22
Stepped drive pulley and drive belt *
3
Platter with felt mat *
4
Tonearm counterweight
5
Tonearm lift lever
6/66
Tonearm rest and removable transport lock
7
Tonearm tube
8
Headshell with finger lift and fitted Ortofon OM 5E cartridge
9
Phono output sockets, earth connection and USB-out
10
Power supply socket
Power supply (not shown)*
Signal output and USB-cable (not shown)*
Two hexagonal keys (not shown)*
